Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Lighting and Horns >> Hazard Warning Lamps >> Hazard Warning Flasher >> Testing and Inspection >> Pinpoint Tests >> Test K: The Hazard Flasher Lamps Are Never/Always On

Test K: The Hazard Flasher Lamps Are Never/Always On

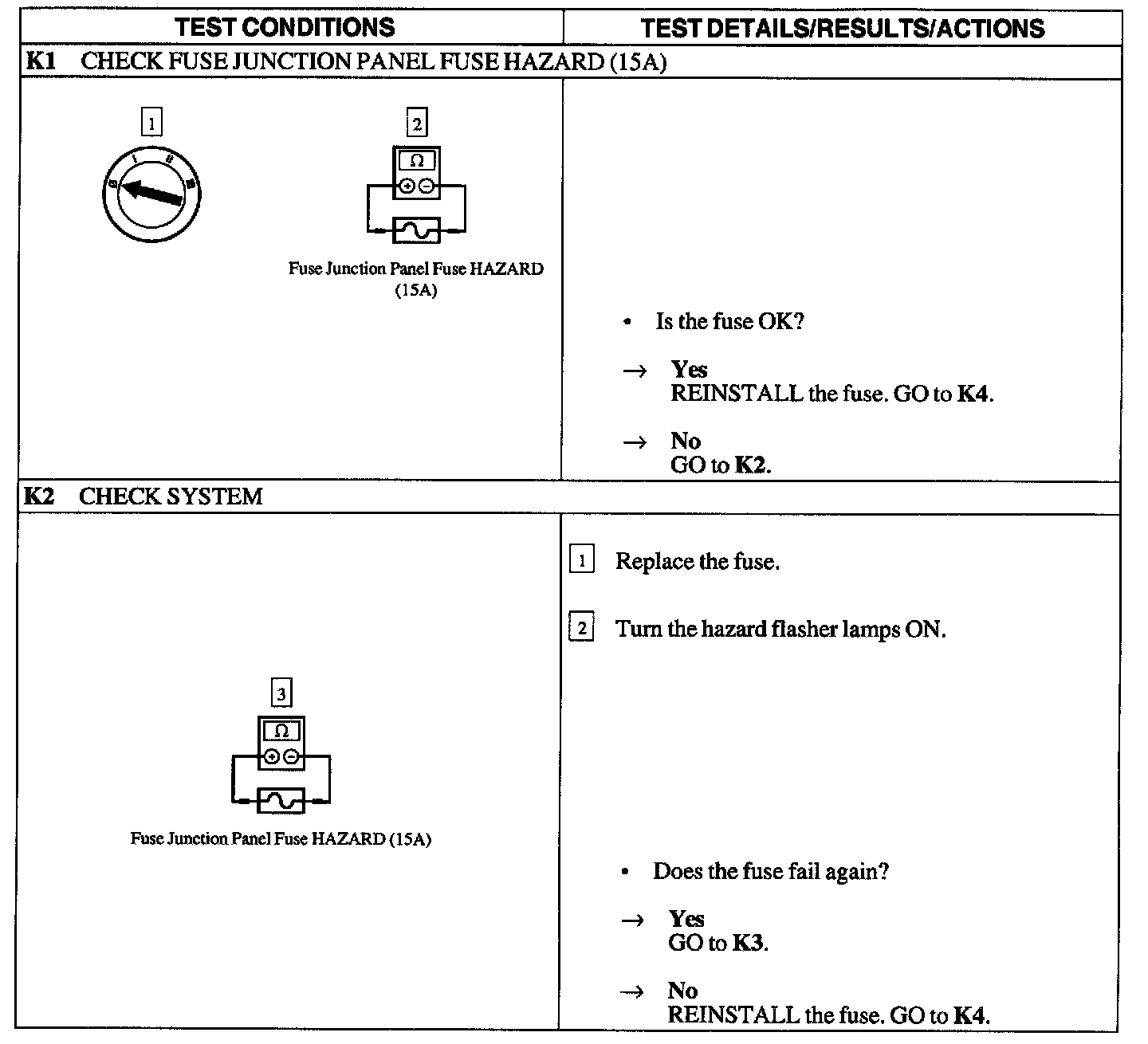

K1 - K2:






K3 - K4:

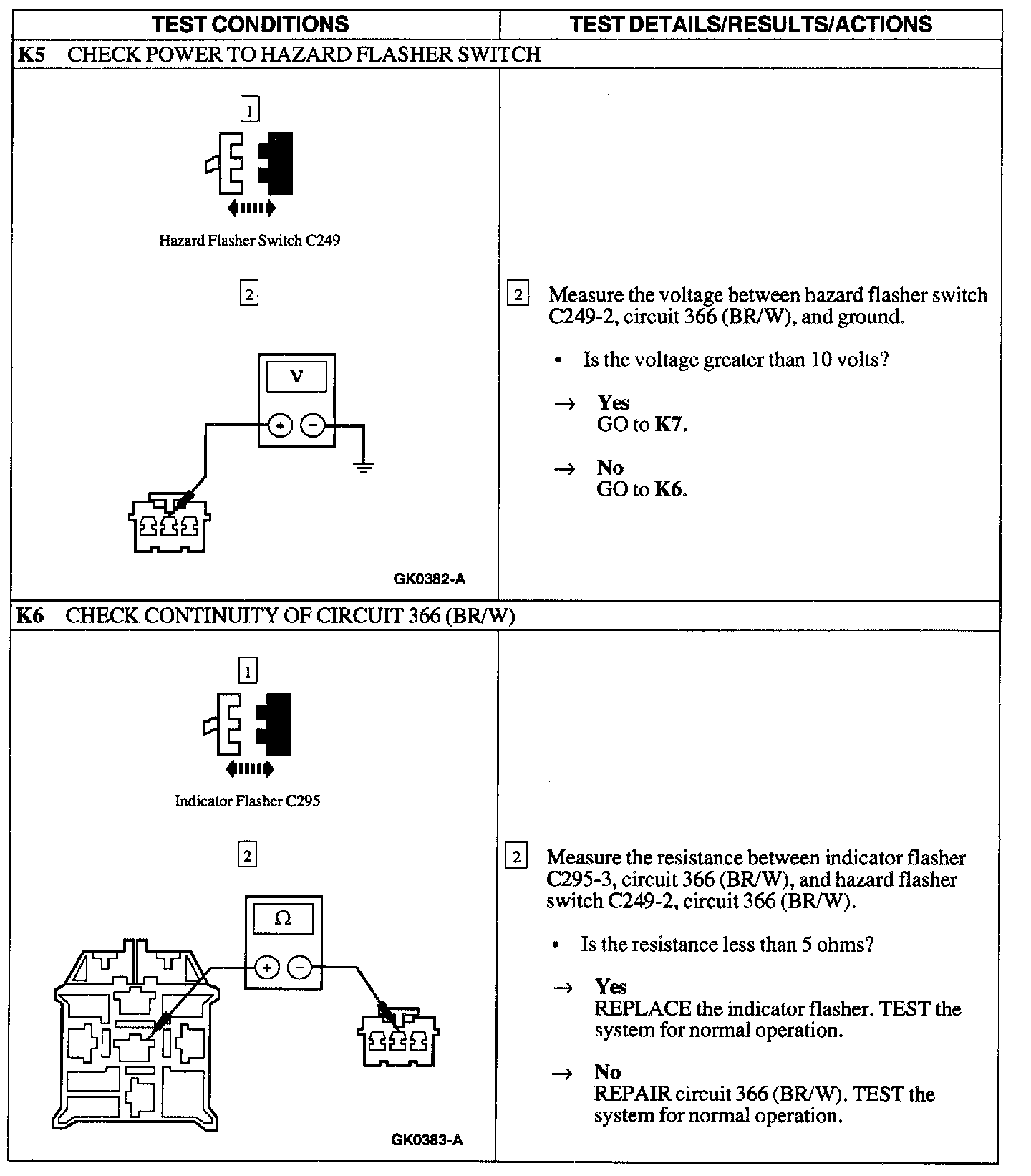

K5 - K6:

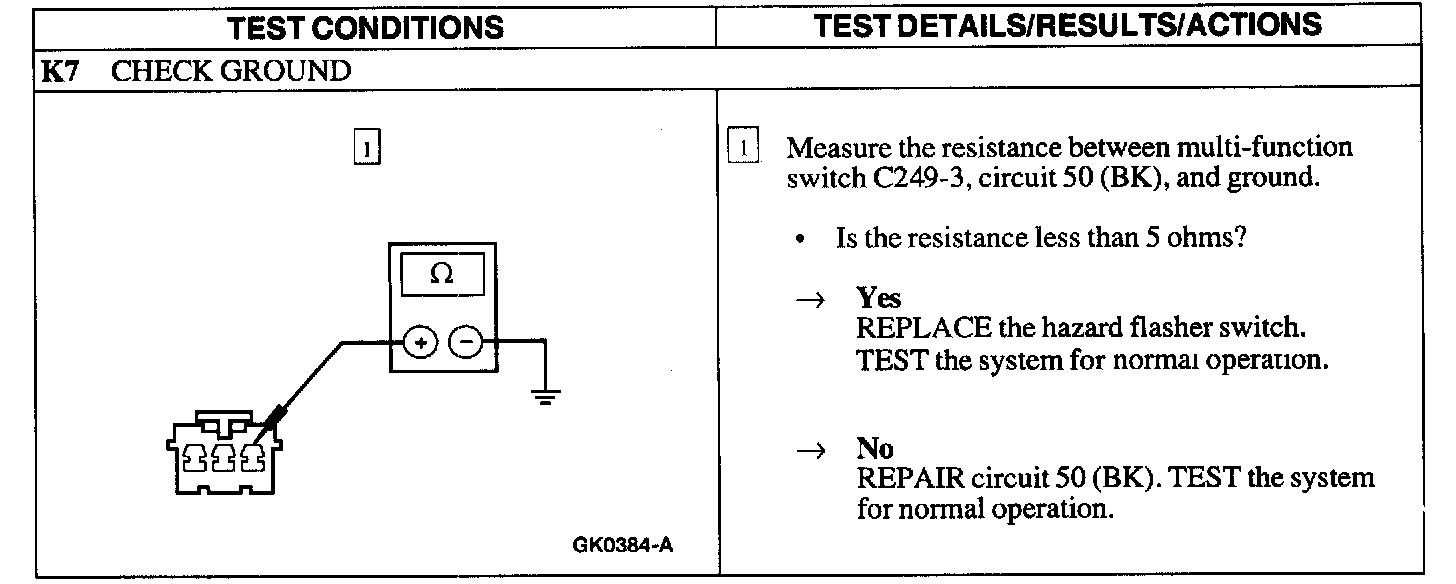

K7:
