Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Testing and Inspection >> Pinpoint Tests >> Test R: Individual Fog Lamp Is Inoperative

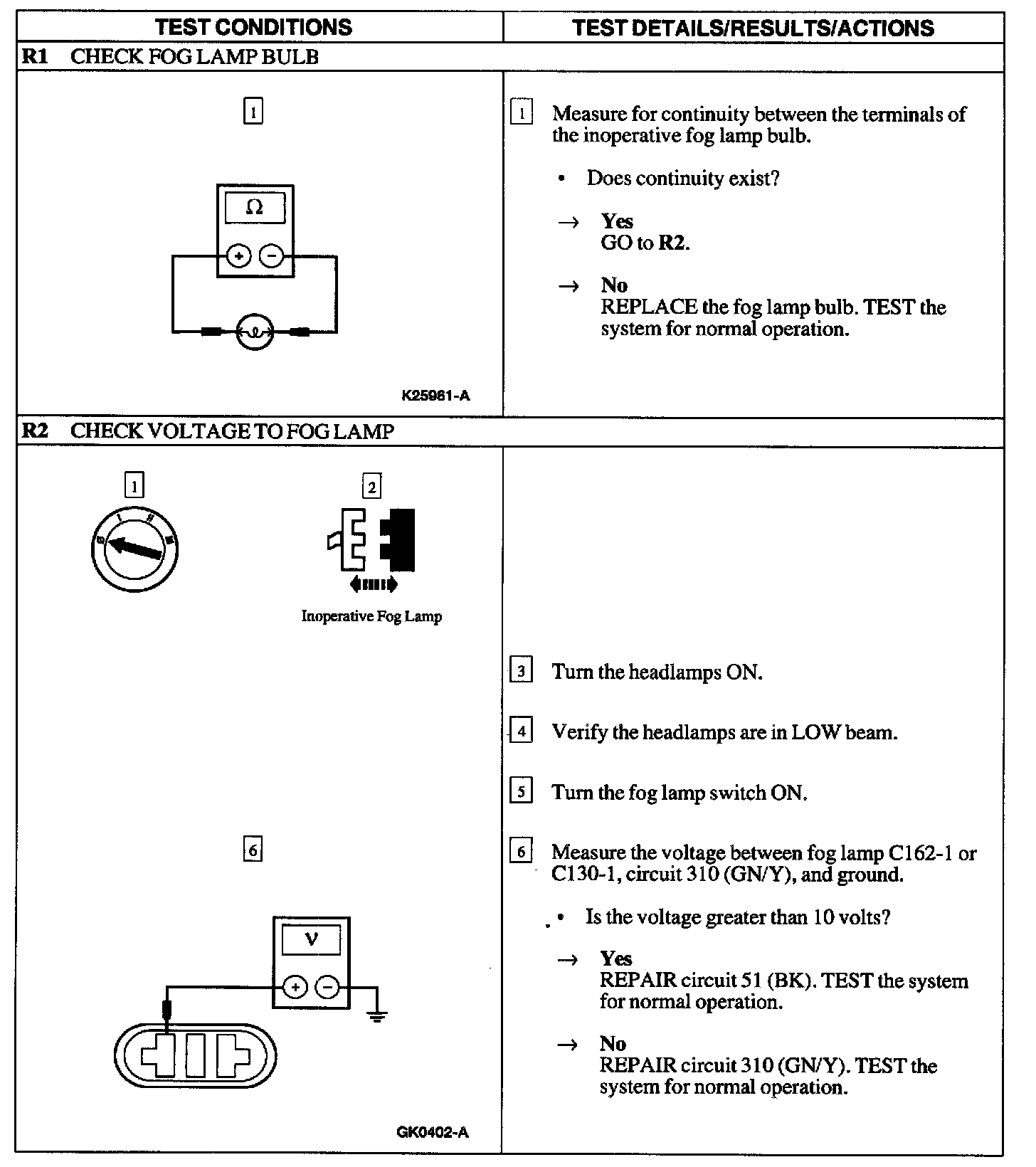

Test R: Individual Fog Lamp Is Inoperative

R1 - R2:
