Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Testing and Inspection >> Pinpoint Tests >> Test Q: Fog Lamps Are Inoperative

Test Q: Fog Lamps Are Inoperative

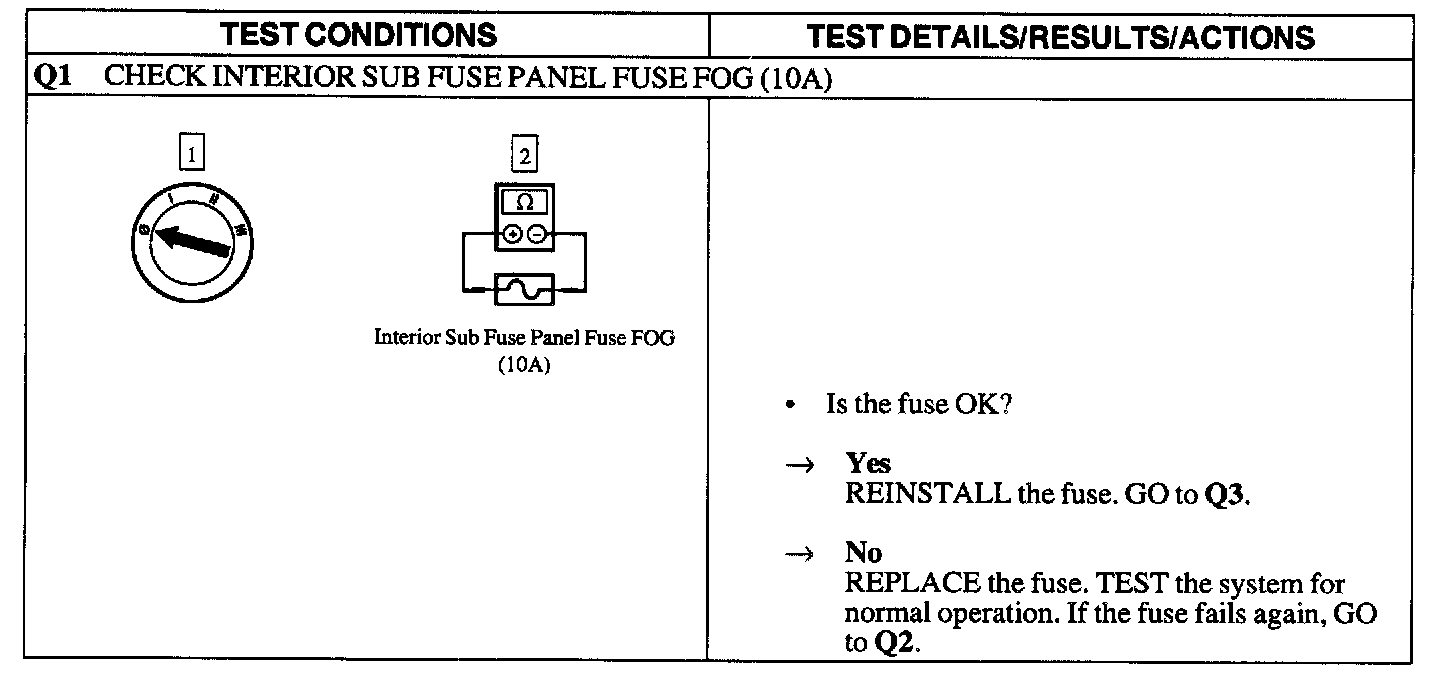

Q1:

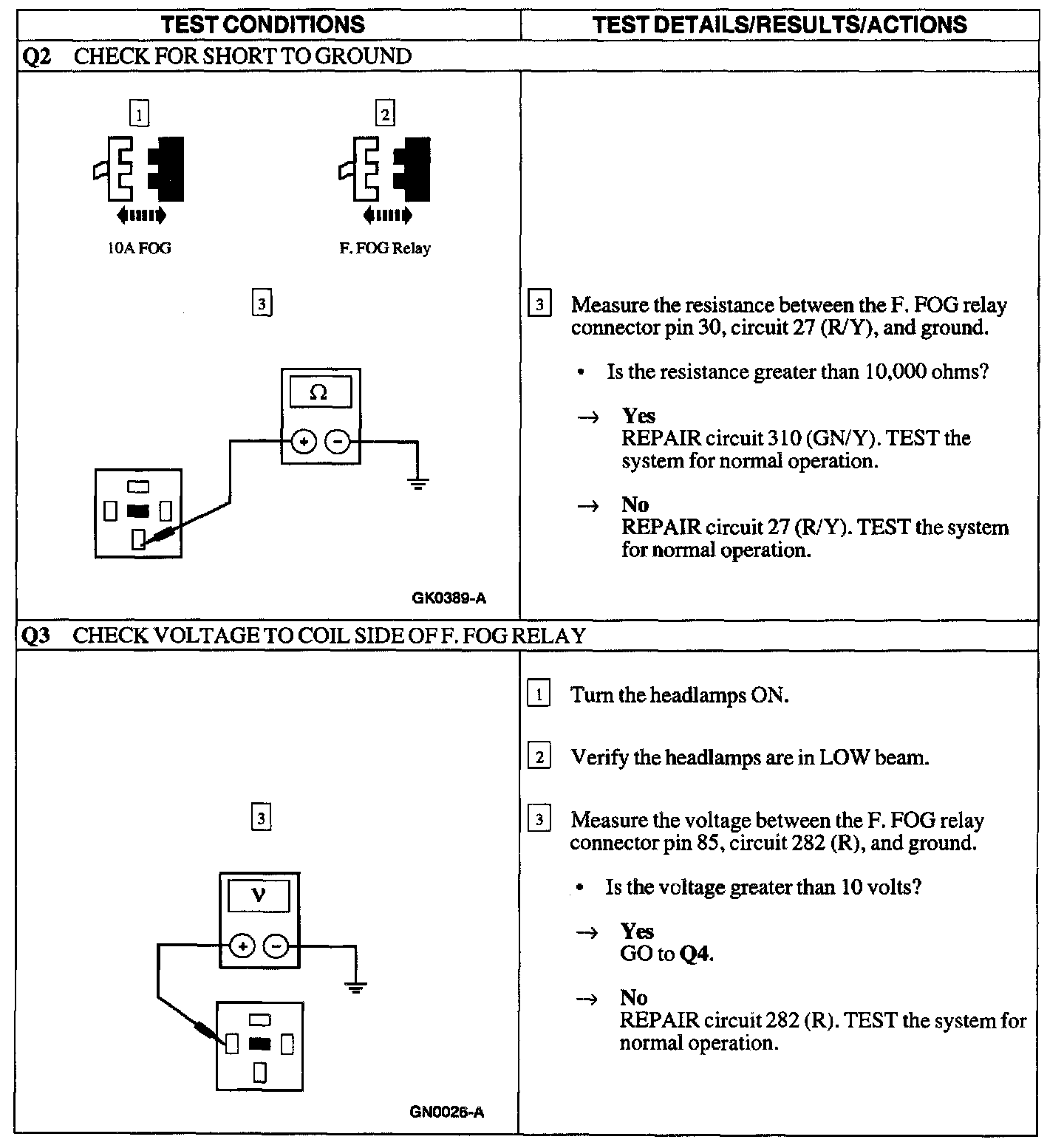

Q2 - Q3:

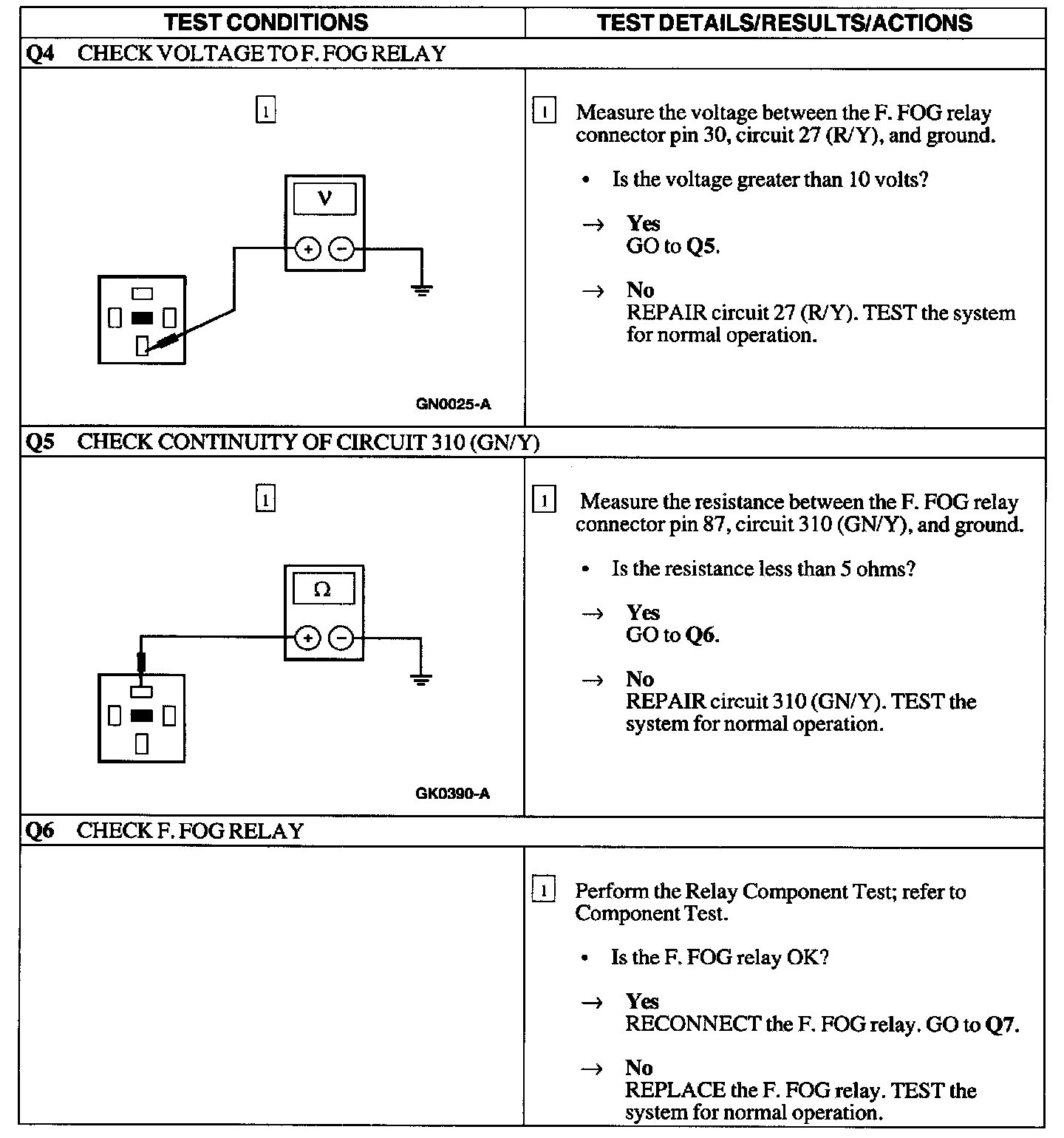

Q4 - Q6:

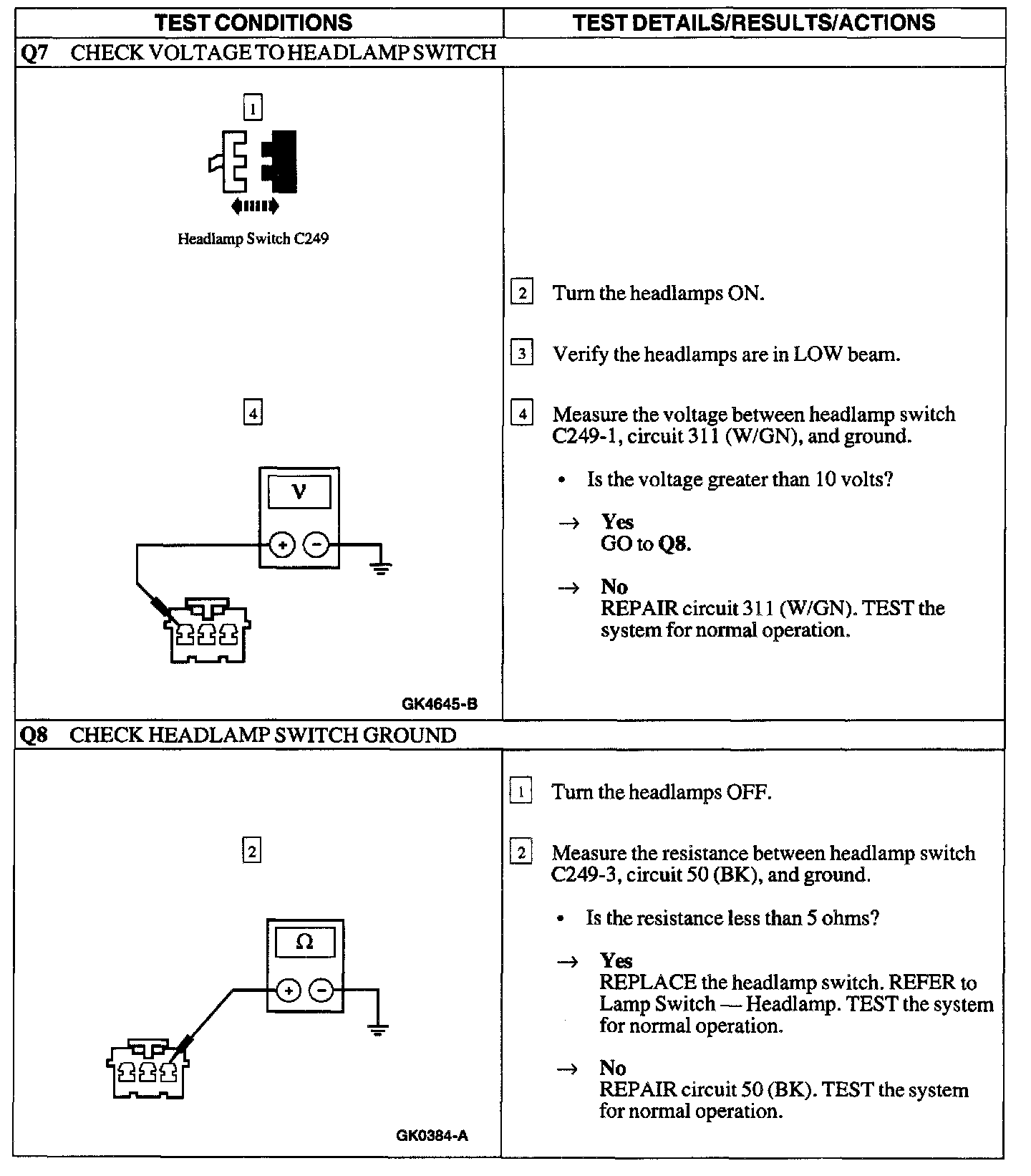

Q7 - Q8:
