Lamp Assembly - Dome/Map, With Sliding Roof Panel

REMOVAL







1. Disconnect the battery ground cable.

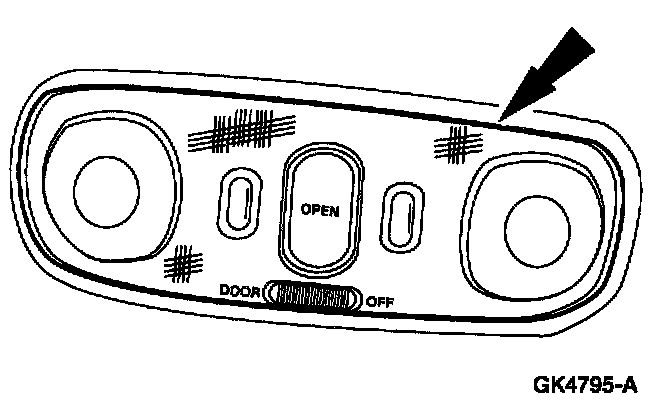

2. Remove the dome/map lamp lens.

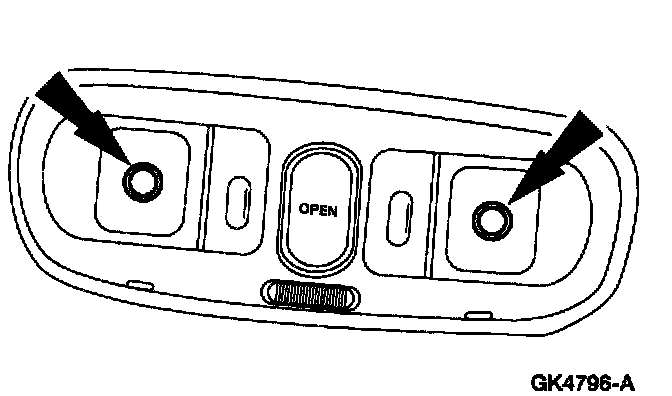

3. Remove the two miniature bulbs.

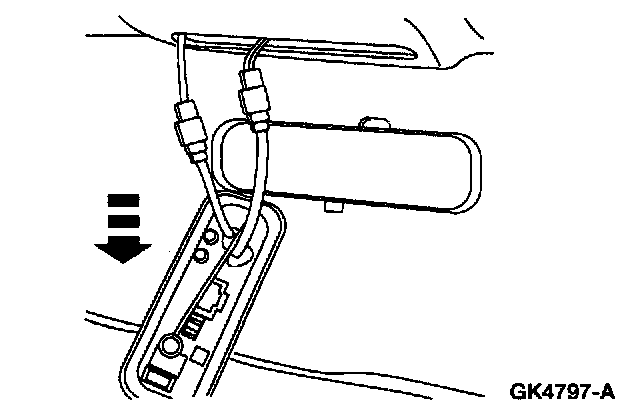

4. Remove the lamp assembly from the headliner.

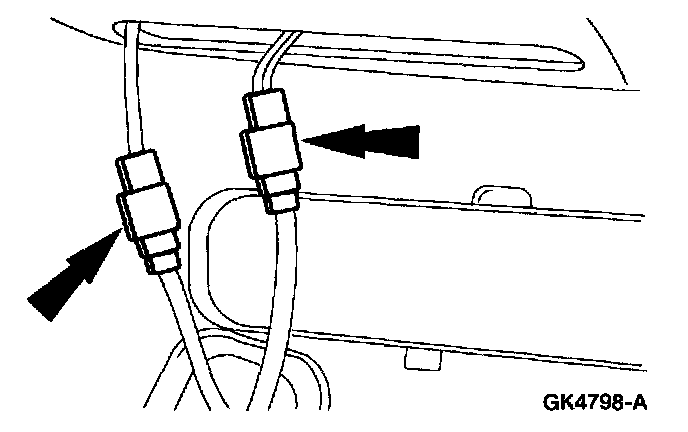

5. Disconnect the electrical connectors.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected an reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.
