Sedan

EXTERIOR LIGHTING

Exterior Lighting:

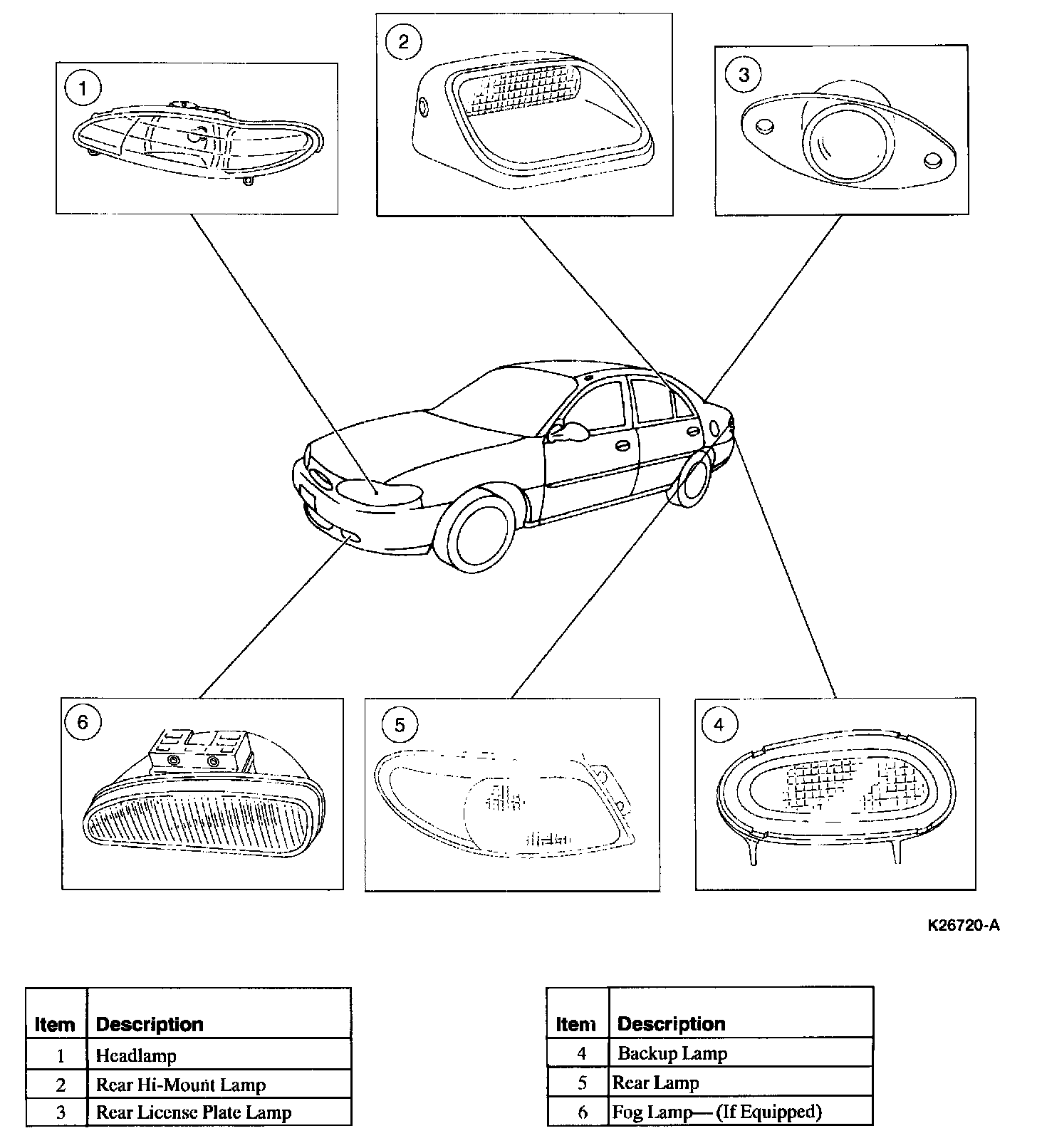

The exterior lighting system consists of the following components:

Headlamp Lamps
The headlamp assembly is a fixed-lens unit with a moveable reflector for headlamp aiming. The headlamp bulb is a high-intensity halogen type.

Rear Lamps
The rear lamp includes the stoplamp, tail lamp, turn signal, and cornering lamp. The rear hi-mount lamp is located on the package tray trim panel. The backup lamps are located between the rear lamp assembly and rear bumper. The rear license plate lamps are mounted on the rear bumper above the rear license plate.

Fog Lamps
If equipped, the fog lamps are mounted in the front bumper. To operate the fog lamps , the low beams must be on. If the high beams are activated, the fog lamps automatically turn off.

Switches and Electrical Units
The exterior lighting system includes the following switches and electrical units:

Exterior Lighting Switches and Relays:

The Brake Pedal Position (BPP) switch illuminates the stoplamps and the rear hi-mount lamp. The BPP switch also sends braking information to the Powertrain Control Module (PCM).
