Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Lighting and Horns >> Daytime Running Lamp >> Testing and Inspection >> Pinpoint Tests >> A Daytime Running Lamps Are Inop

A Daytime Running Lamps Are Inop

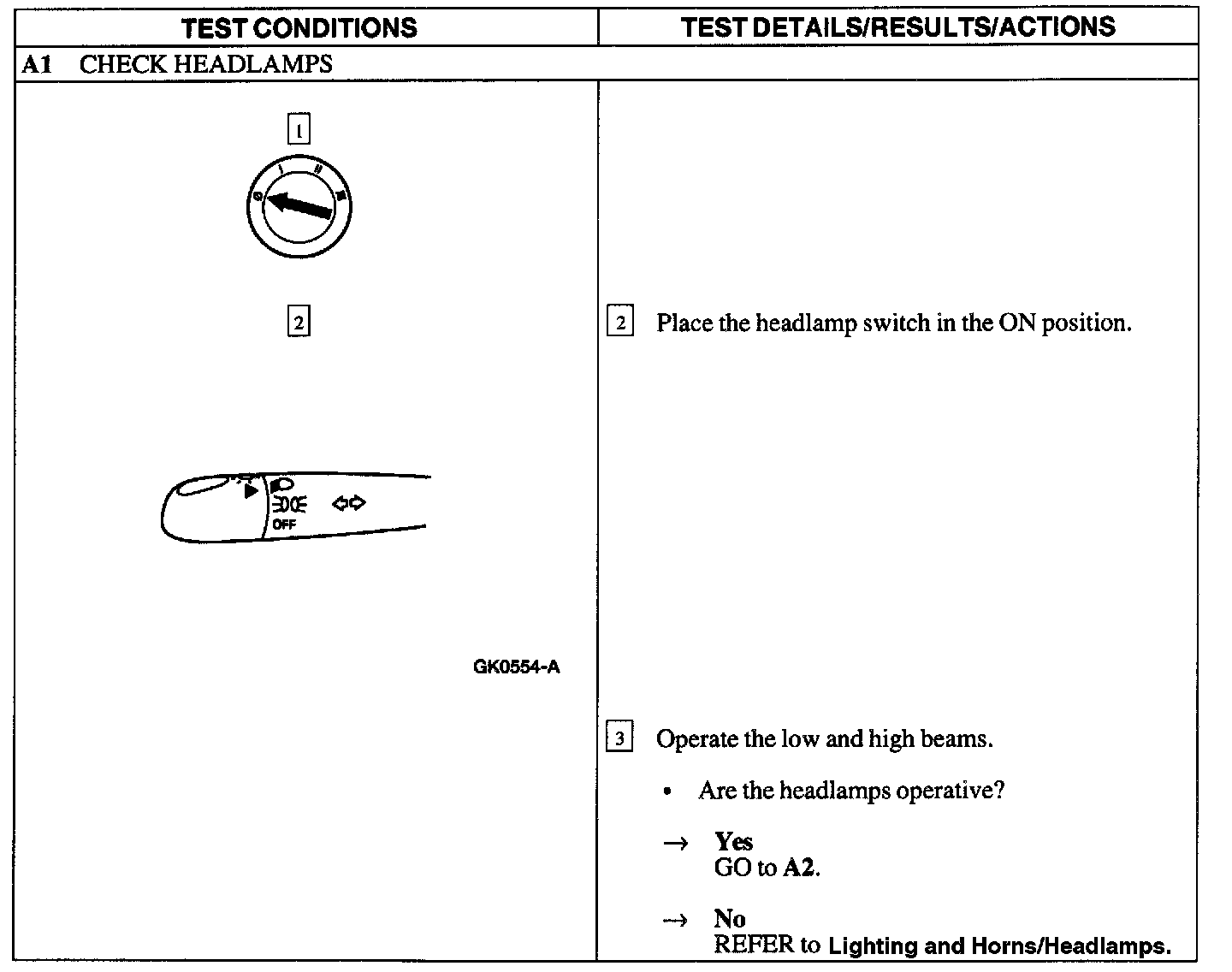

A1:

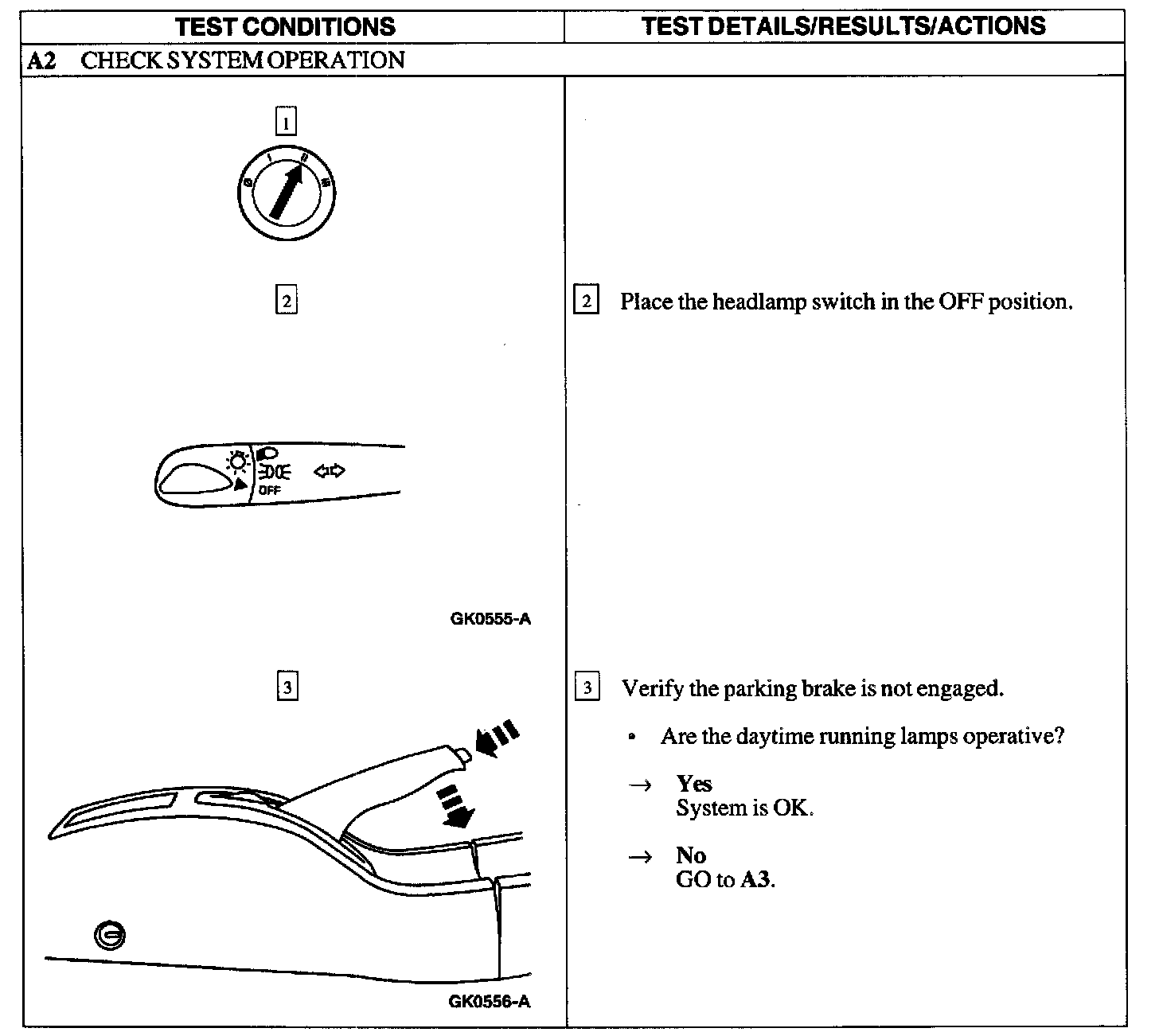

A2:

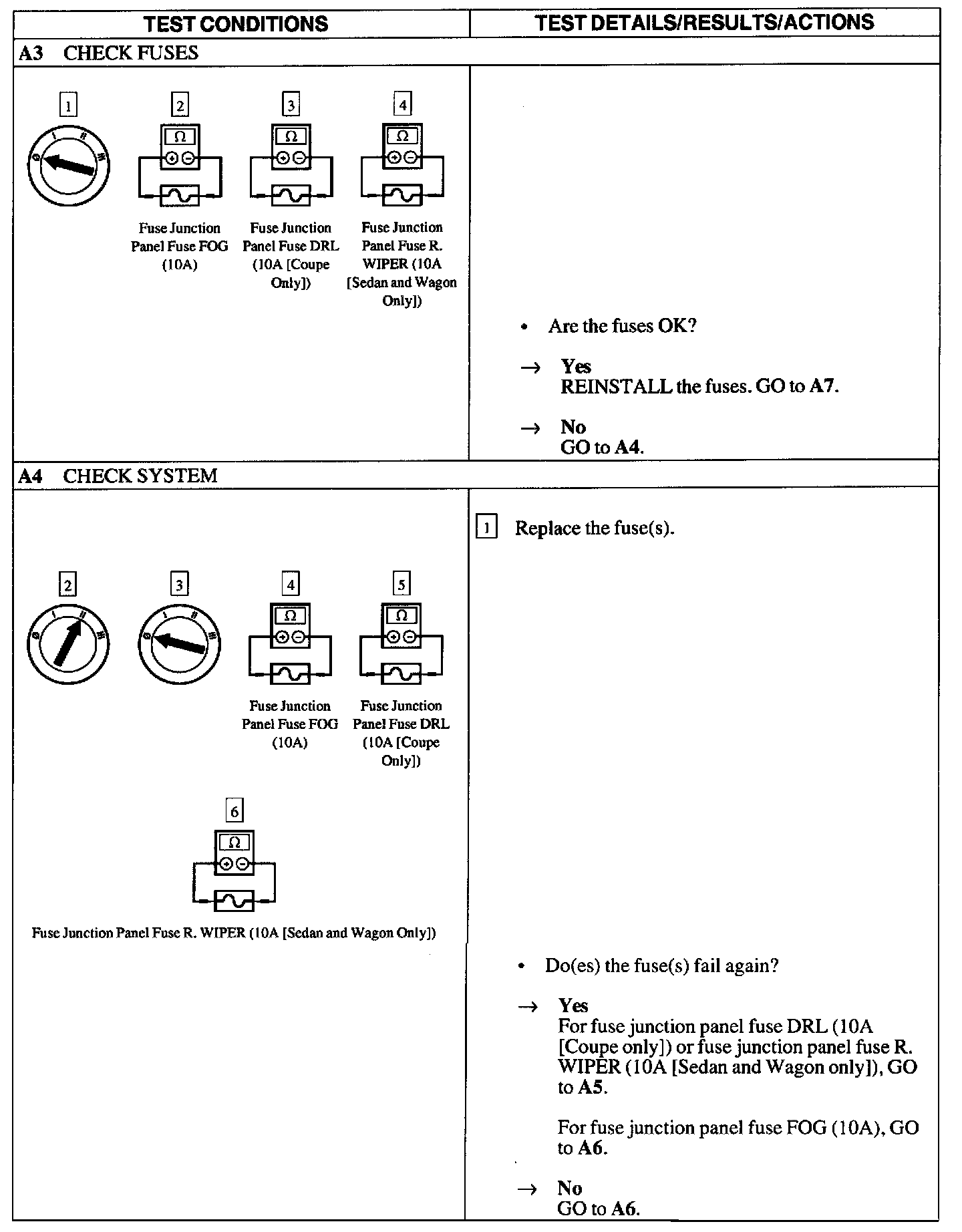

A3 - A4:

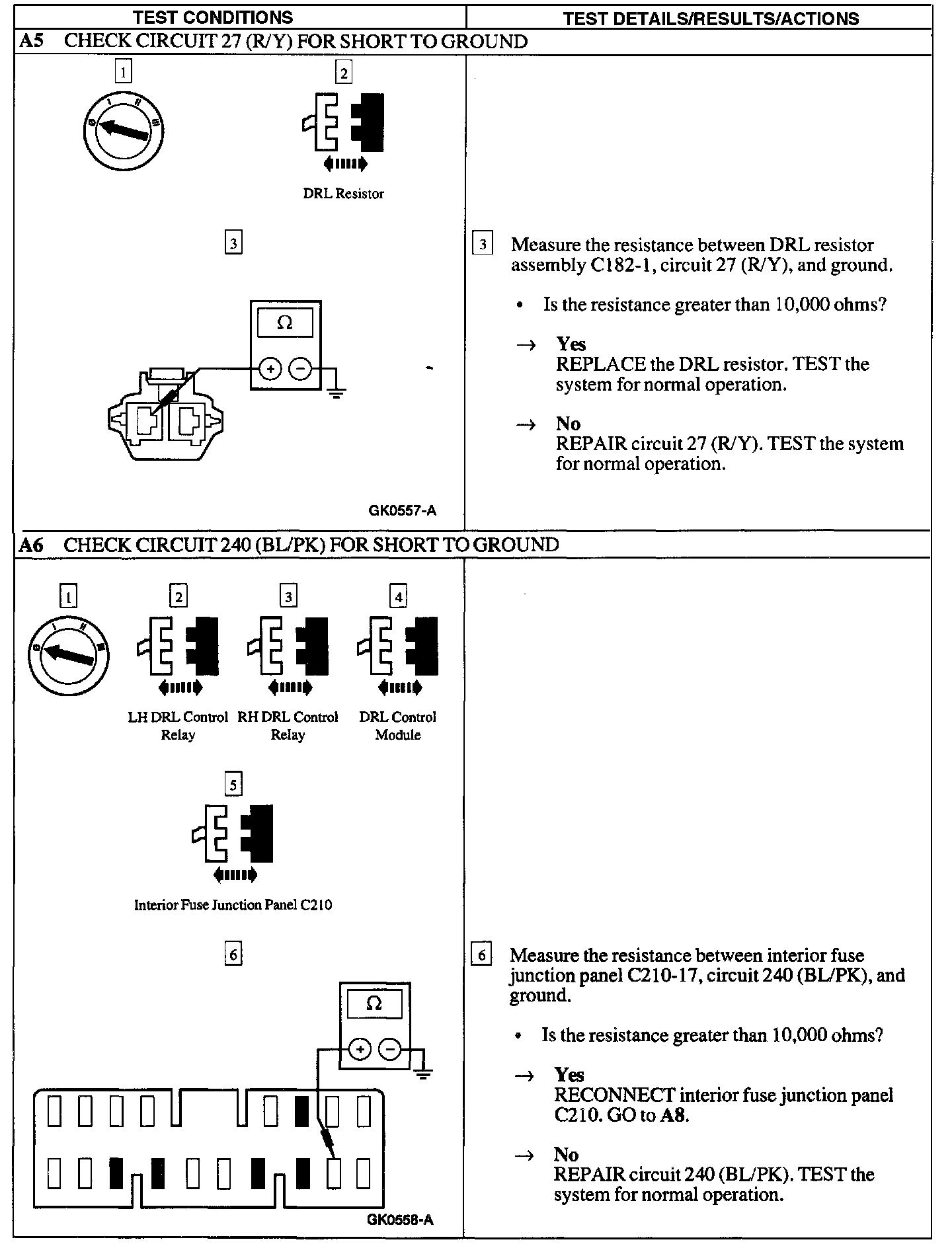

A5 - A6:

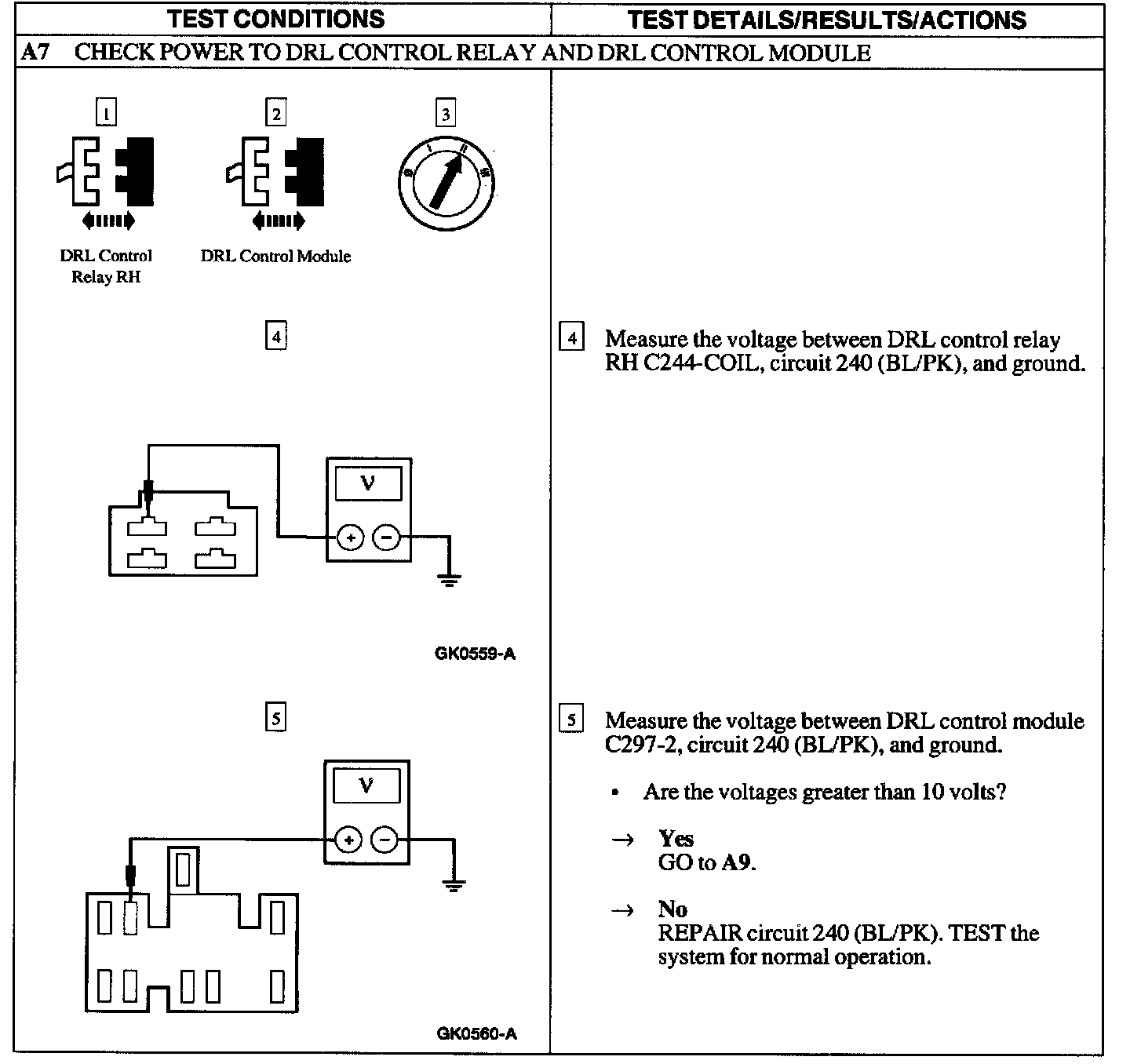

A7:

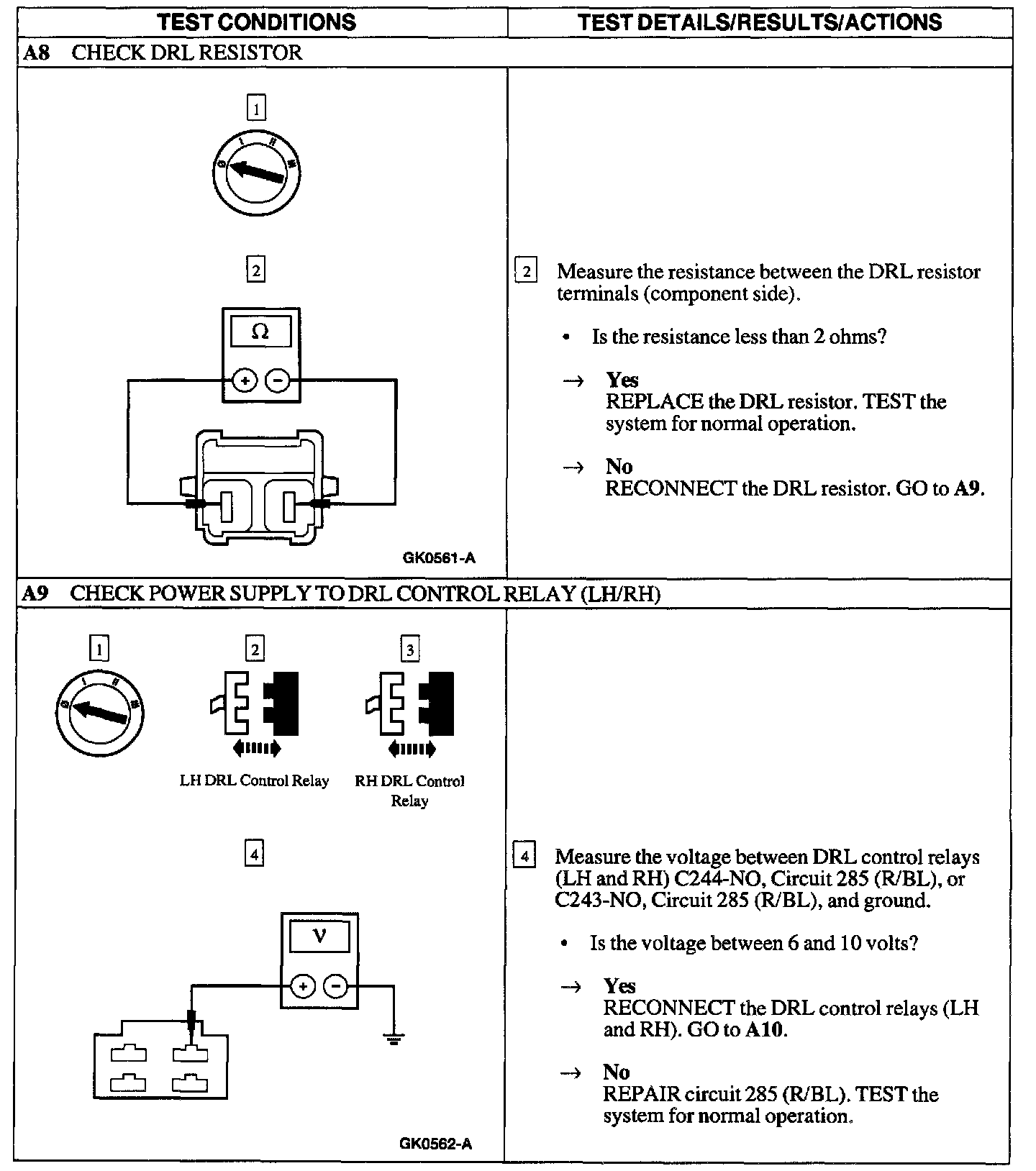

A8 - A9:

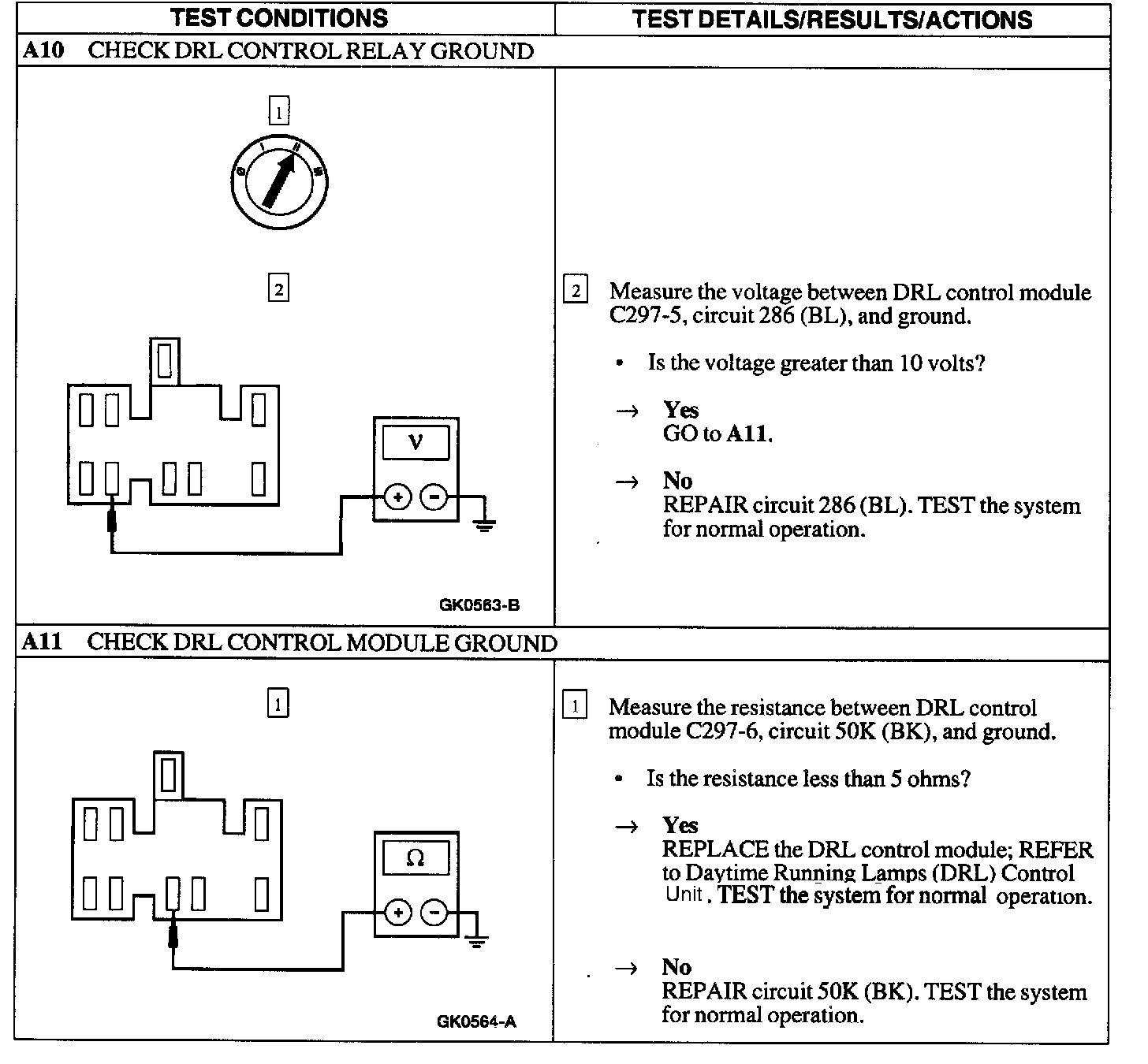

A10 - A11:
