Daytime Running Lamp Resistor: Service and Repair

REMOVAL







1. Disconnect the battery ground cable.

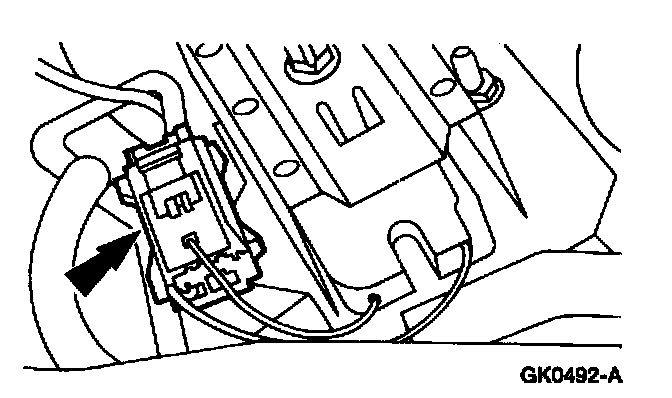

2. Disconnect the Daytime Running Lamp (DRL) resistor electrical connector.

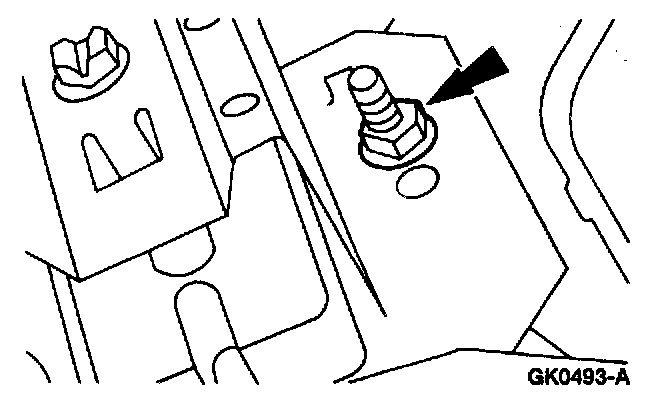

3. Remove the DRL resistor nut and the DRL resistor.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 mi) or more to relearn the strategy.
