Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Instrument Cluster >> Test V: An Indicator Is Inoperative-Liftgate Ajar

Test V: An Indicator Is Inoperative-Liftgate Ajar

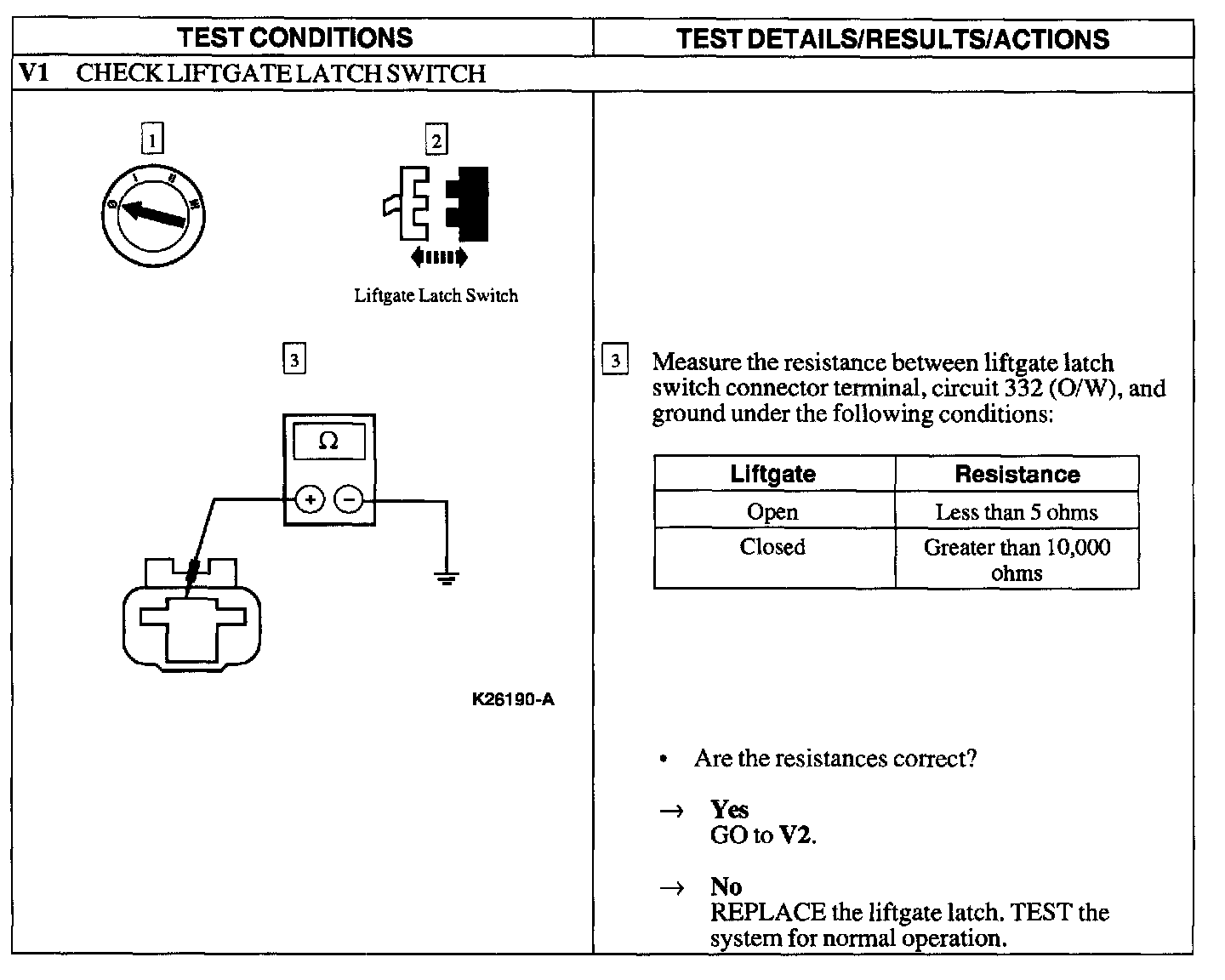

V1:

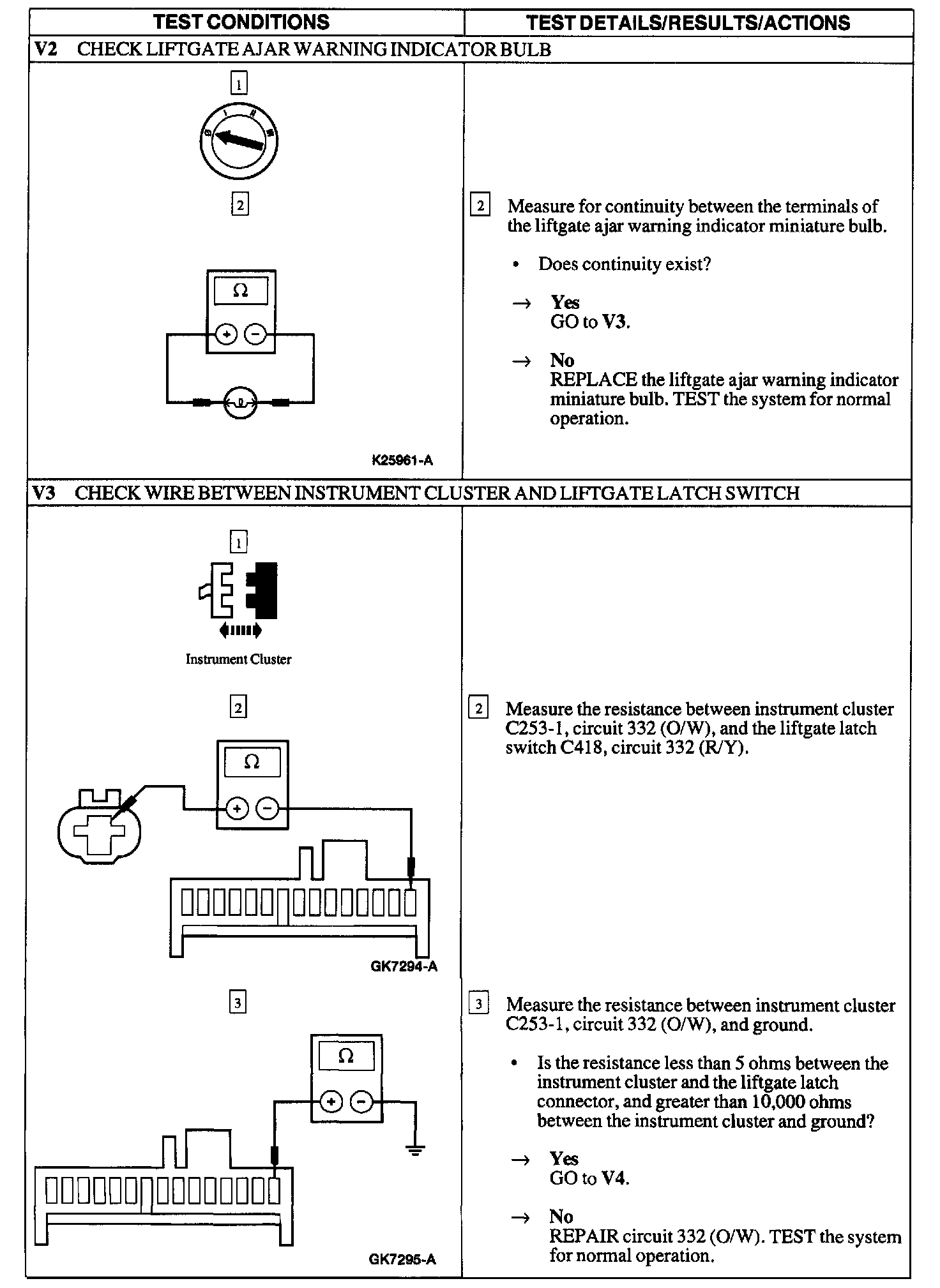

V2 - V3:






V4:
