Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Instrument Cluster >> Test R: An Indicator Is Inoperative/Always On-High Beam

Test R: An Indicator Is Inoperative/Always On-High Beam

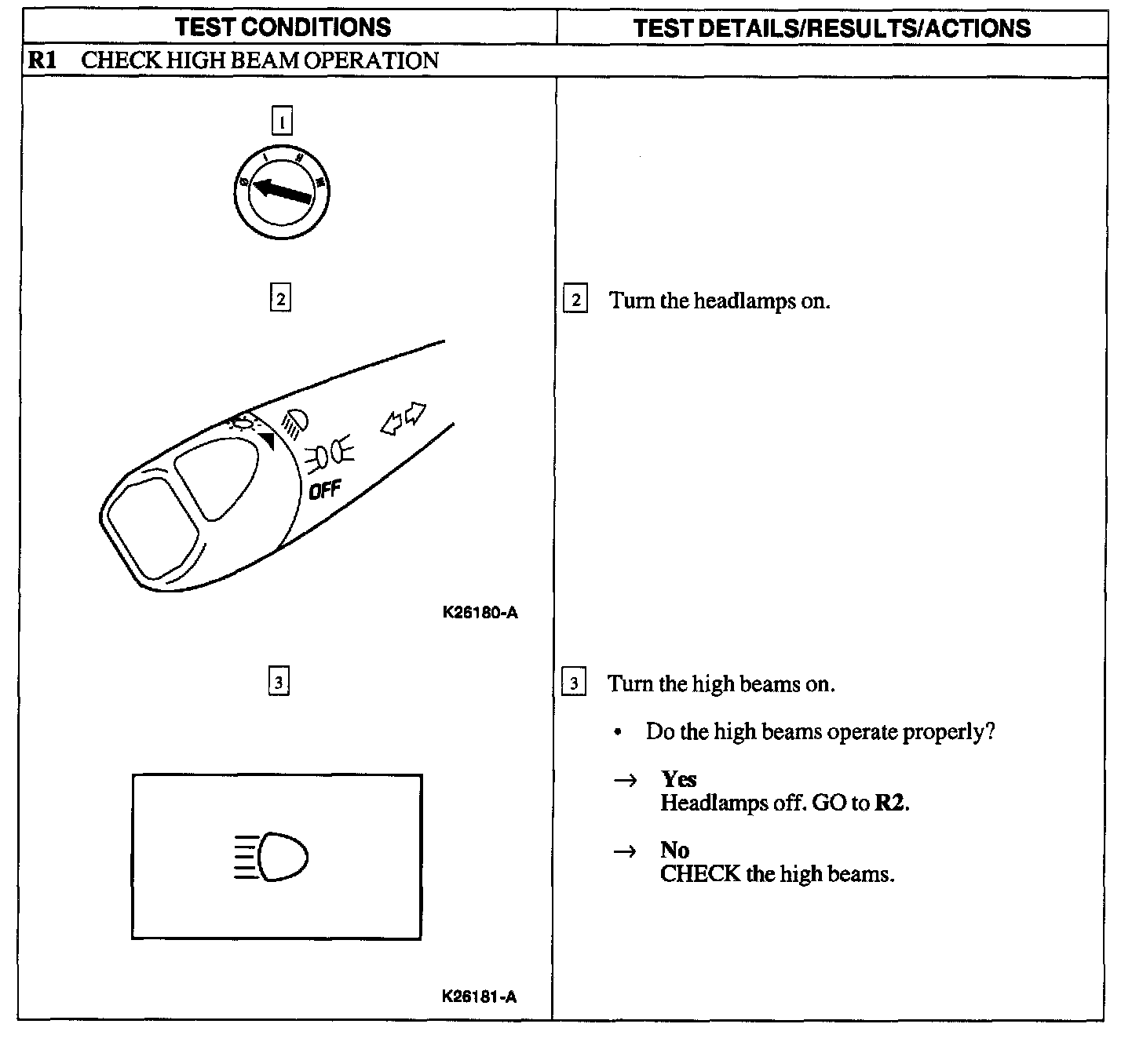

R1:

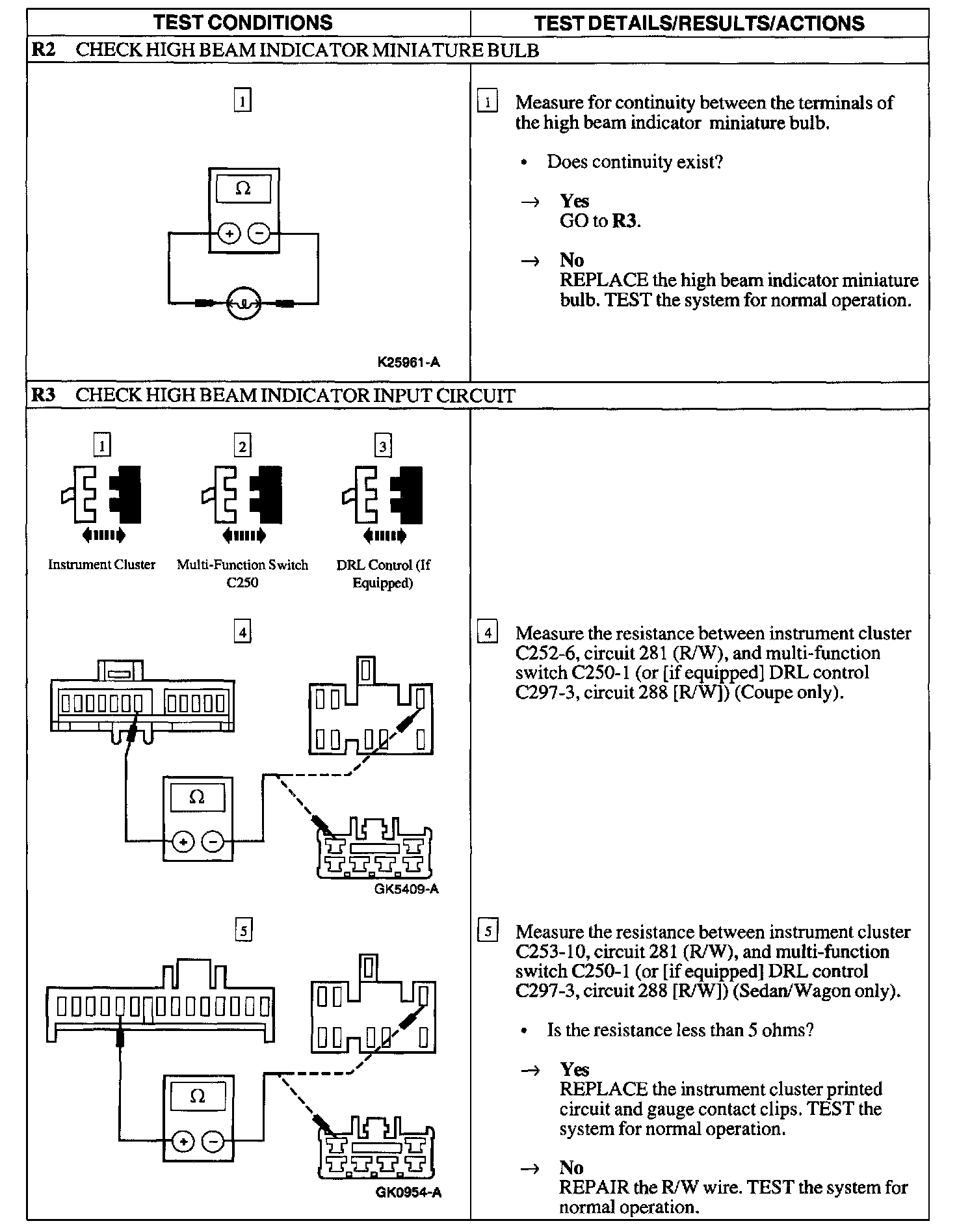

R2 - R3:
