Test J: The Charge System Warning Indicator Is Never/Always On
Test J: The Charge System Warning Indicator Is Never/Always On

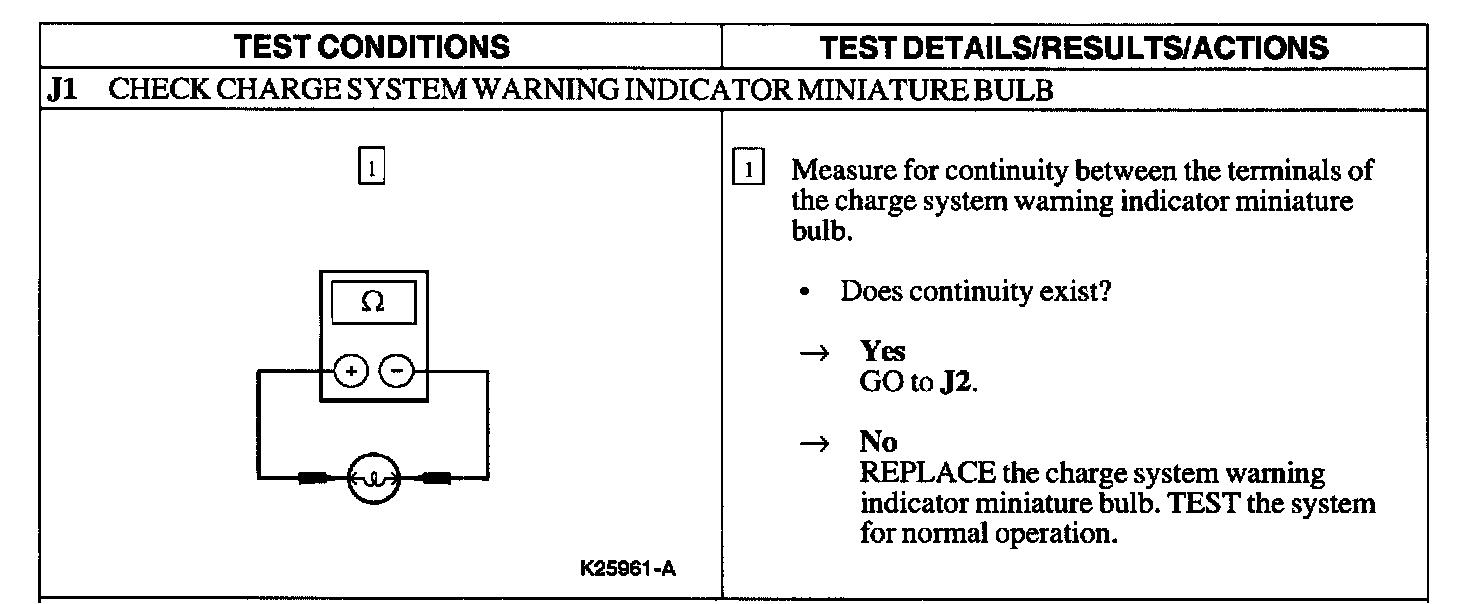

J1:

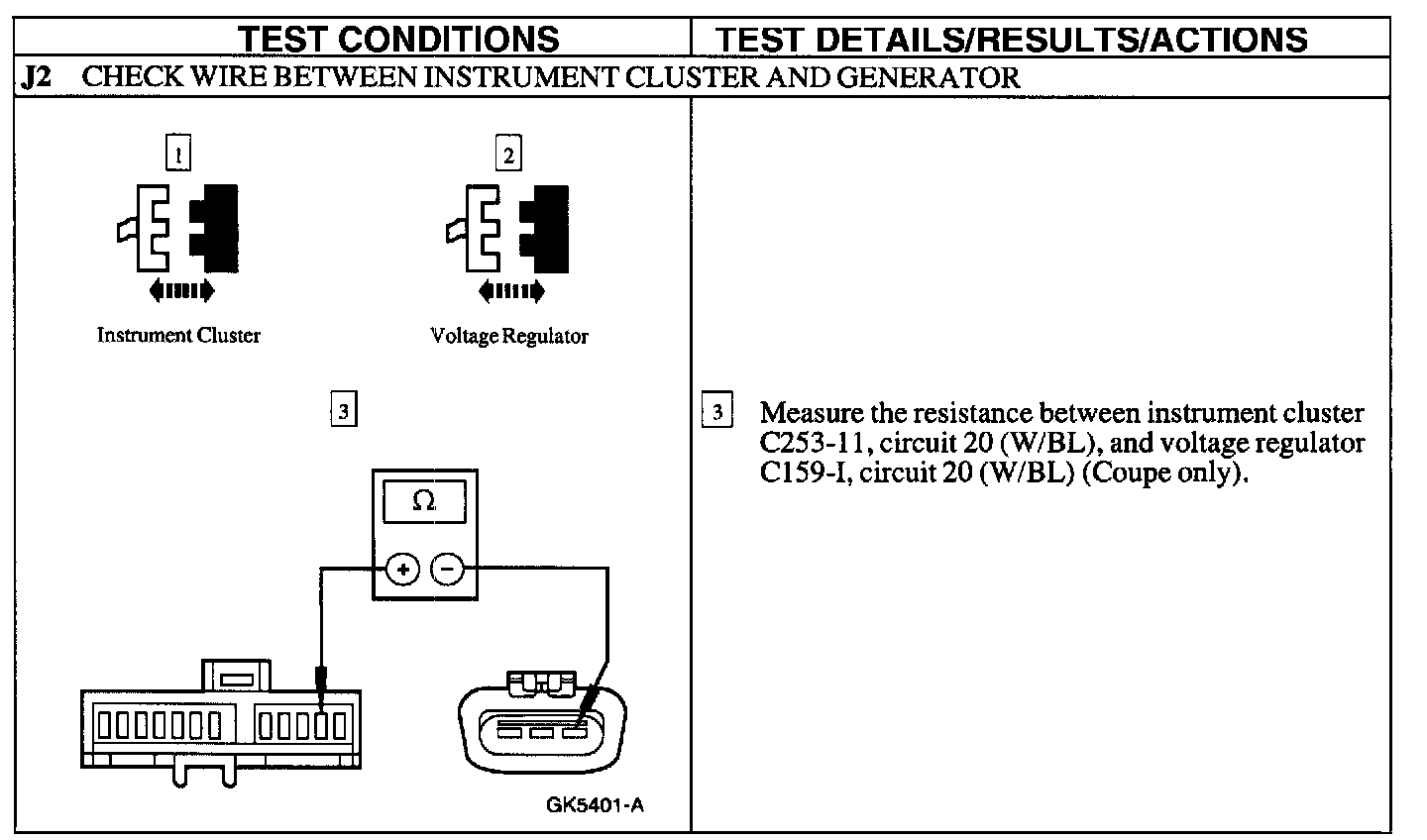

J2 (Part 1 Of 2):

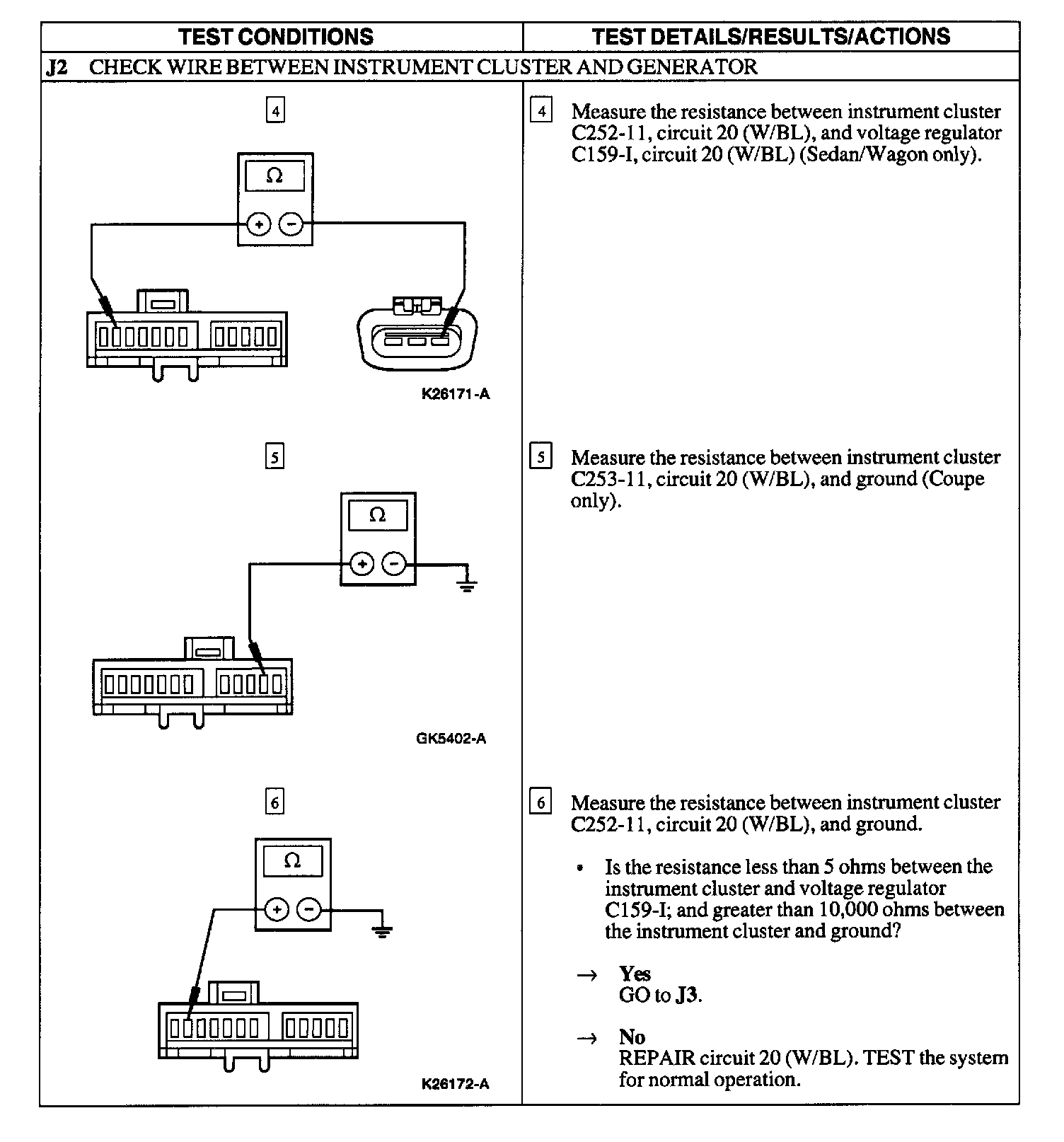

J2 (Part 2 Of 2):

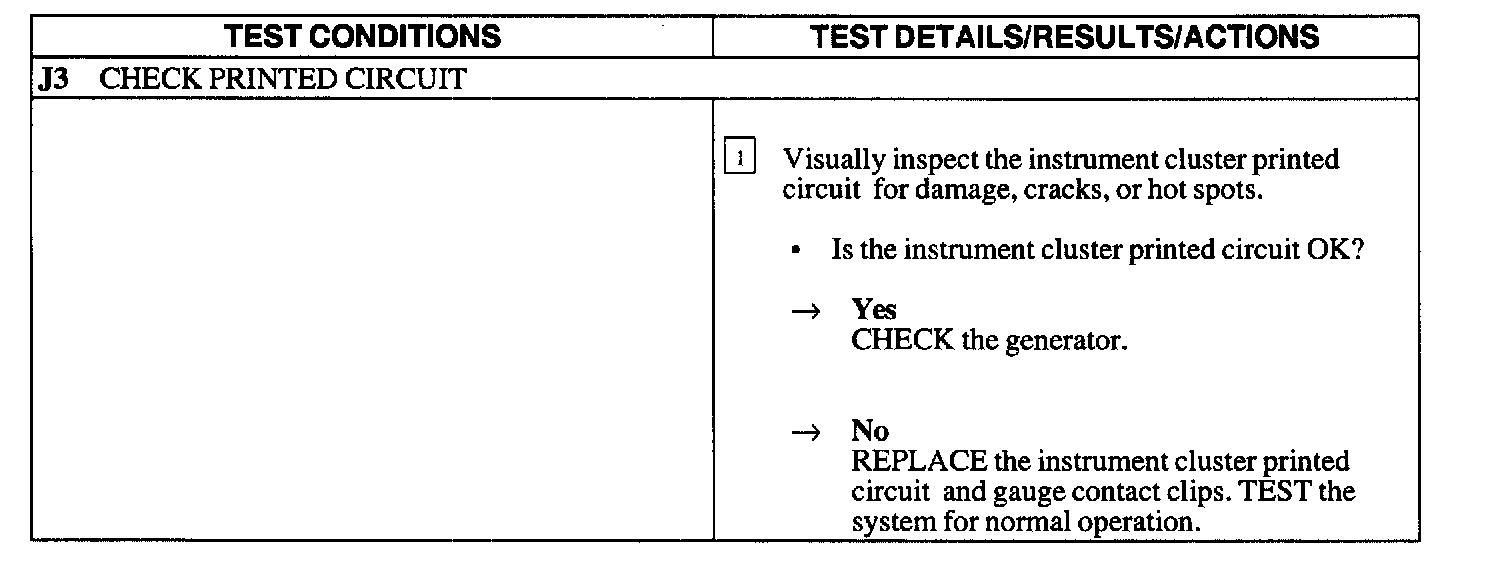

J3:
