Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Instrument Cluster >> Test F: The Brake Warning Indicator Is Never/Always On

Test F: The Brake Warning Indicator Is Never/Always On

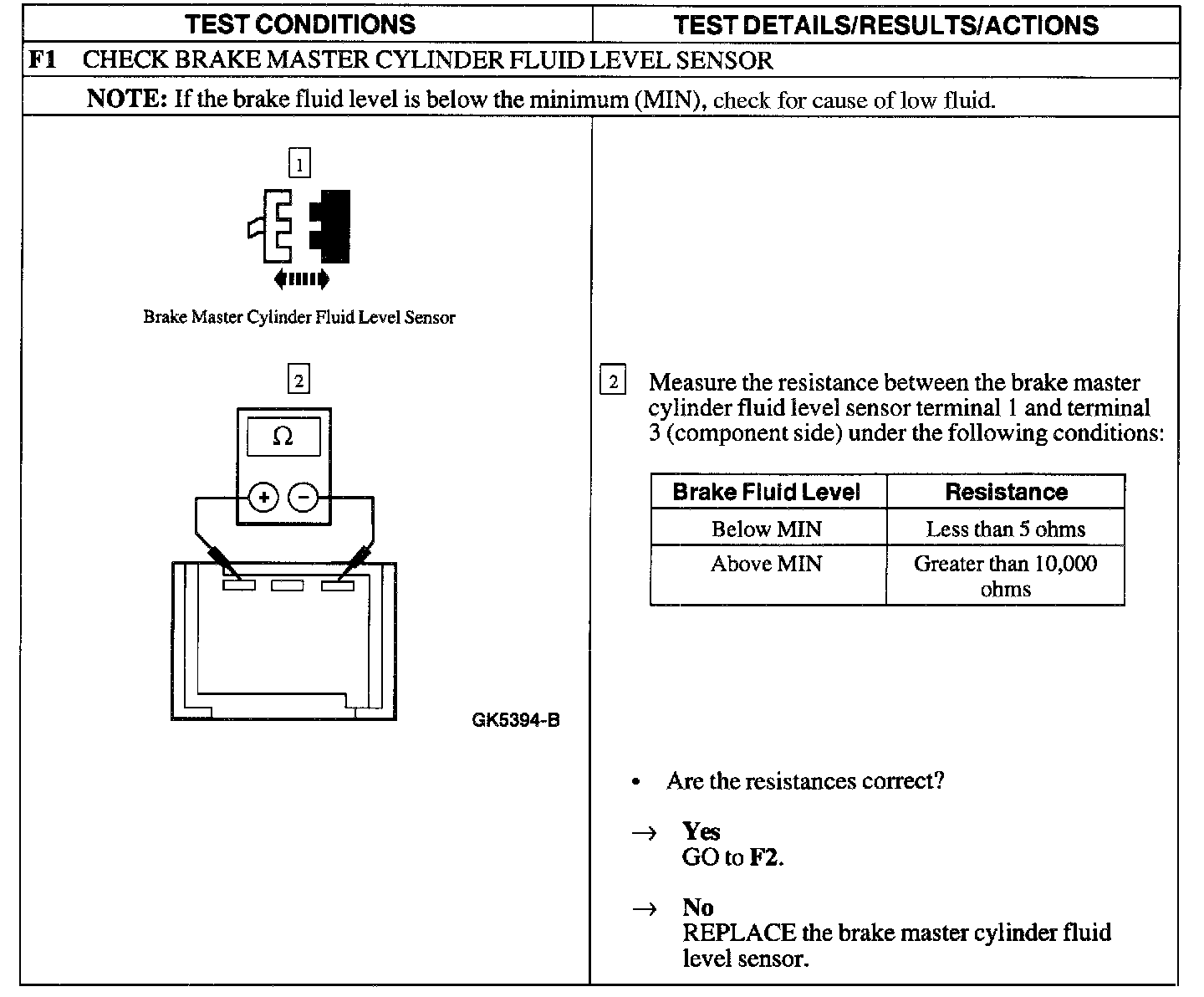

F1:

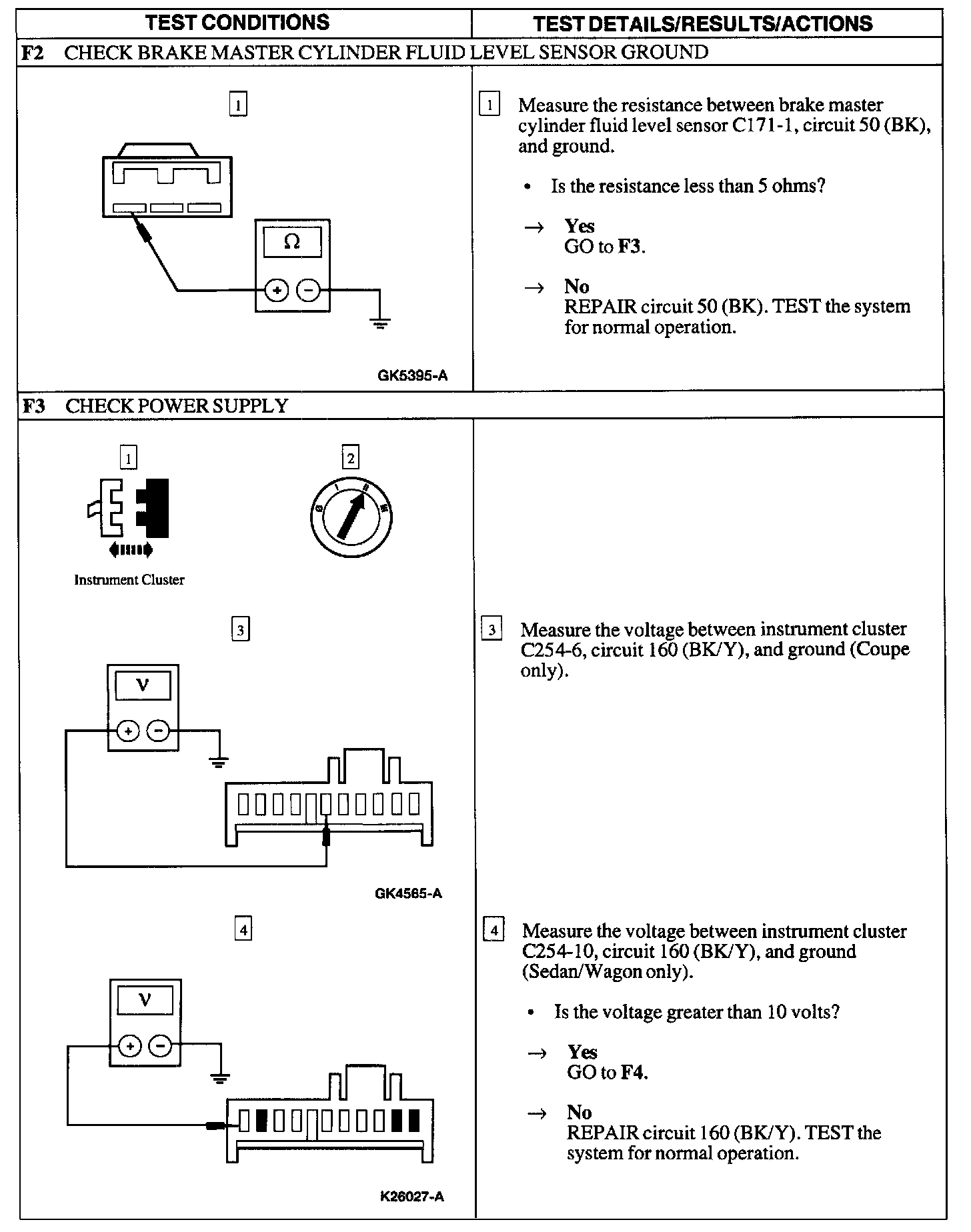

F2 - F3:

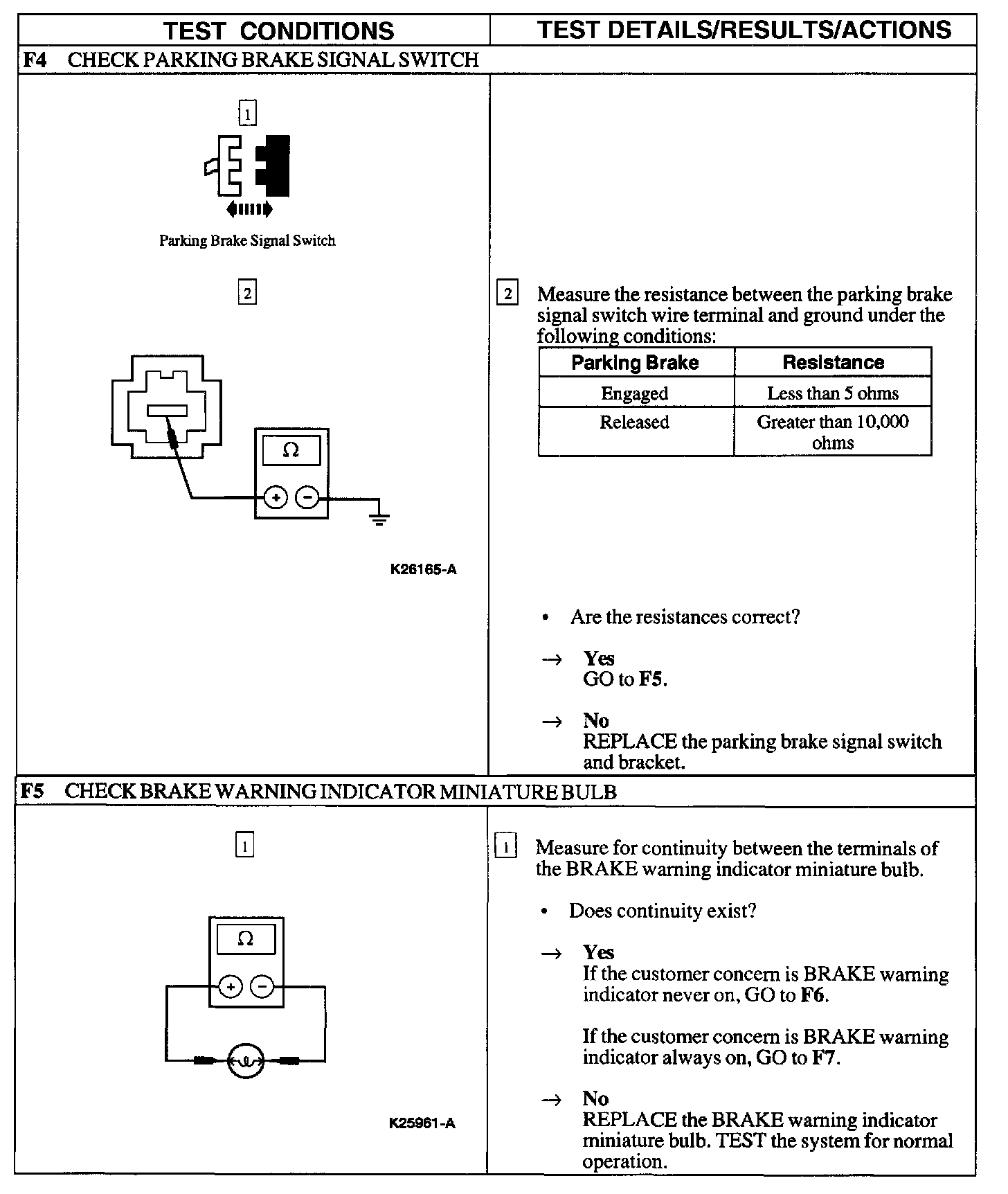

F4 - F5:

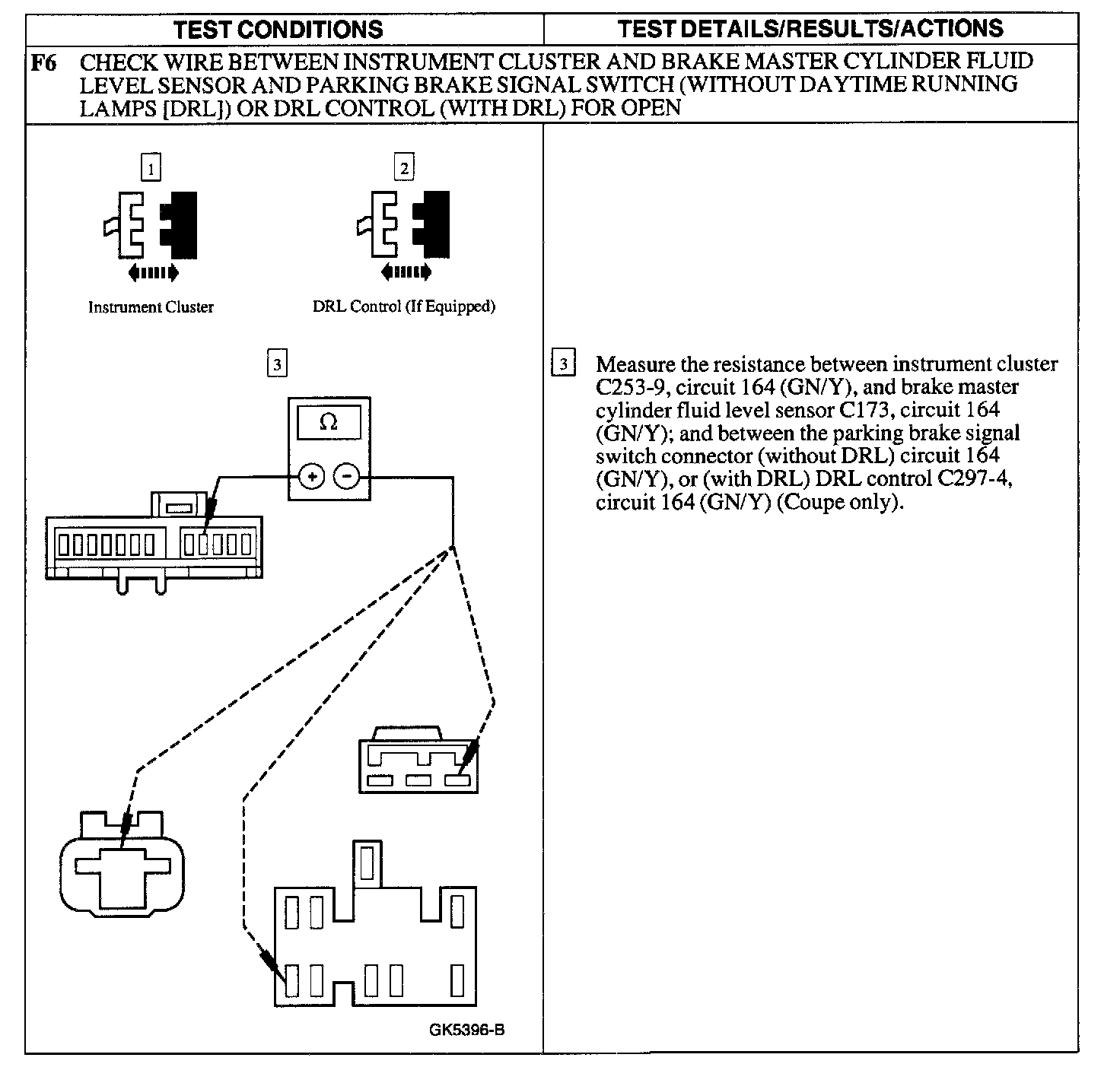

F6 (Part 1 Of 2):

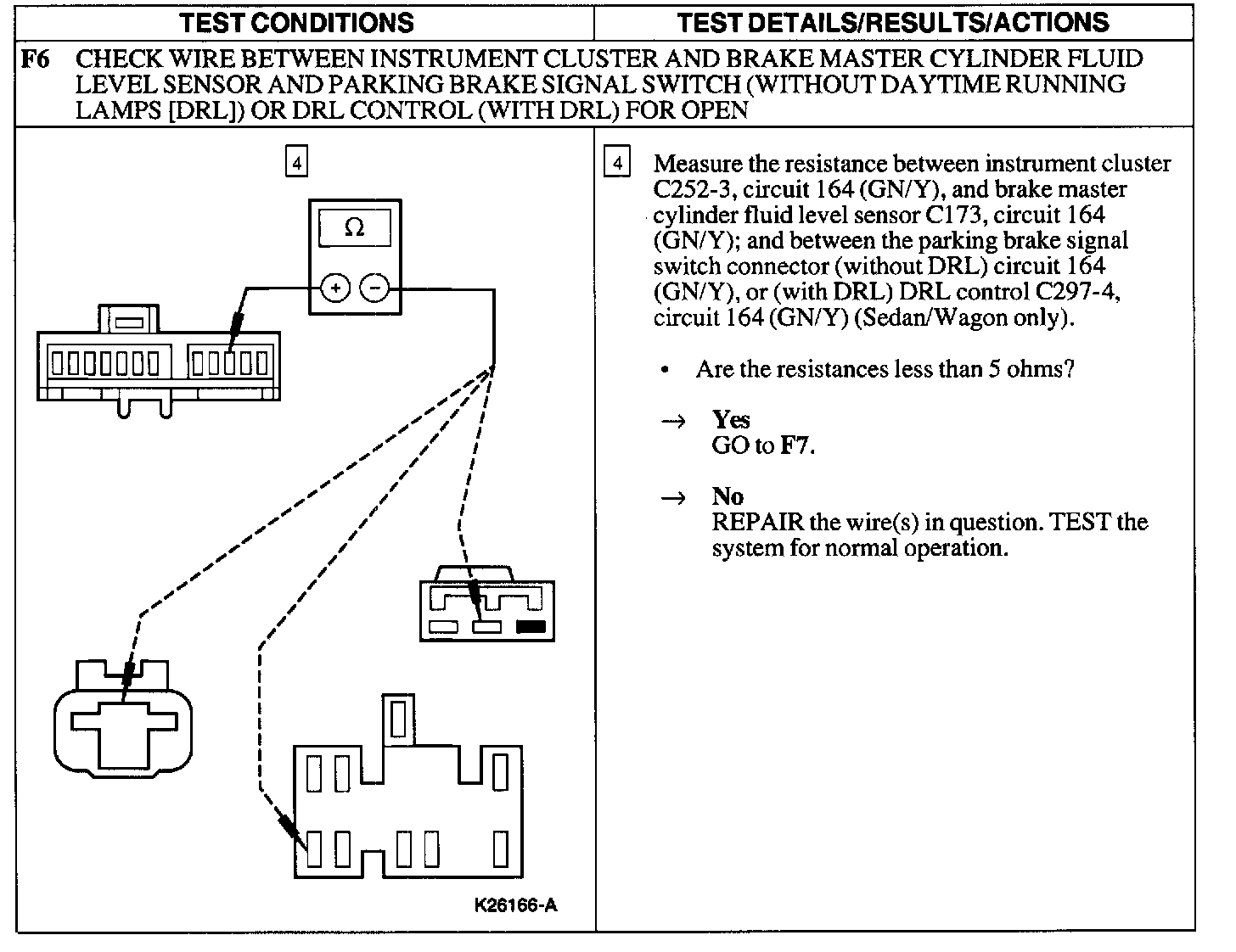

F6 (Part 2 Of 2):

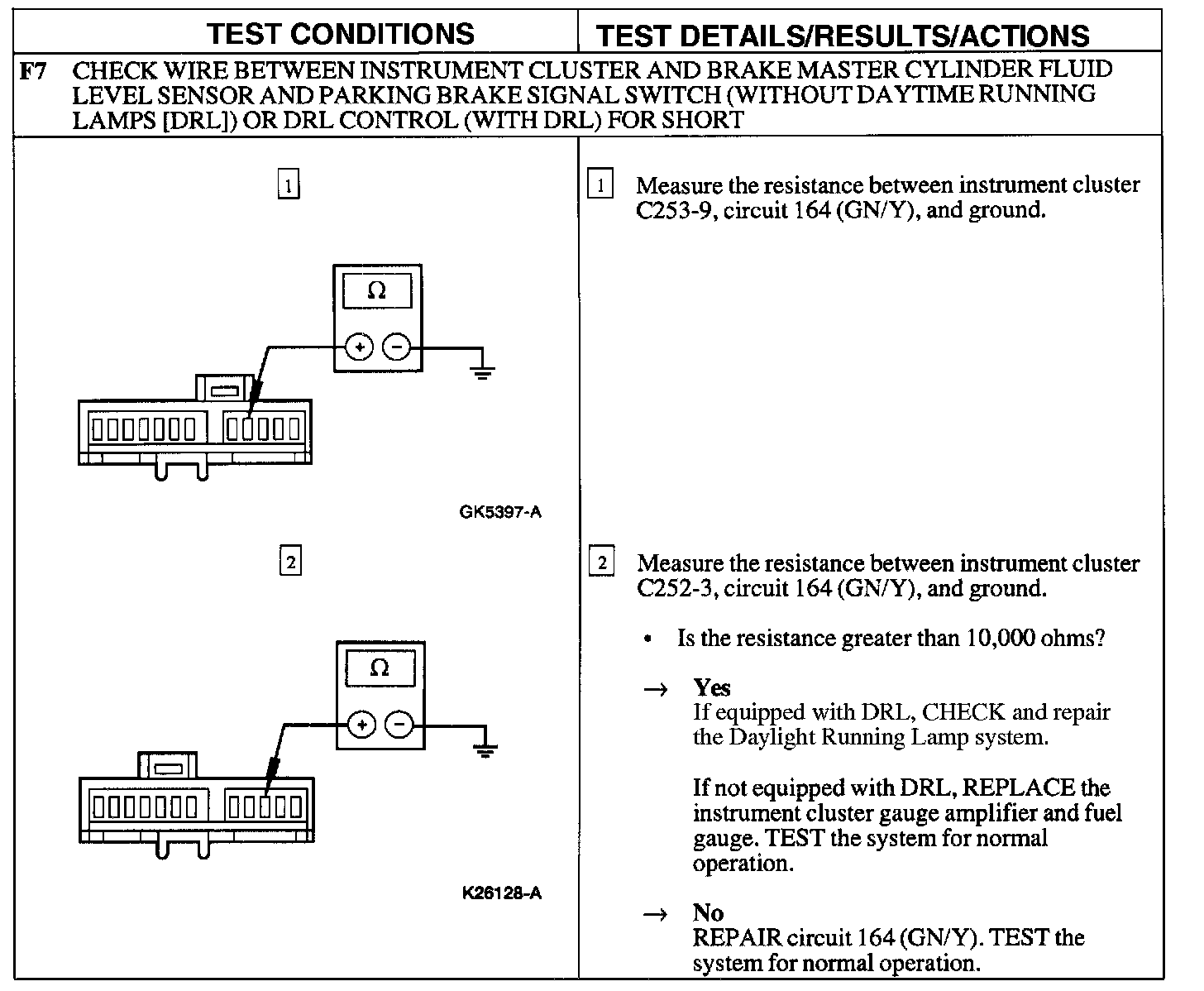

F7:
