Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Instrument Cluster >> Test D: Inaccurate Speedometer Reading

Test D: Inaccurate Speedometer Reading

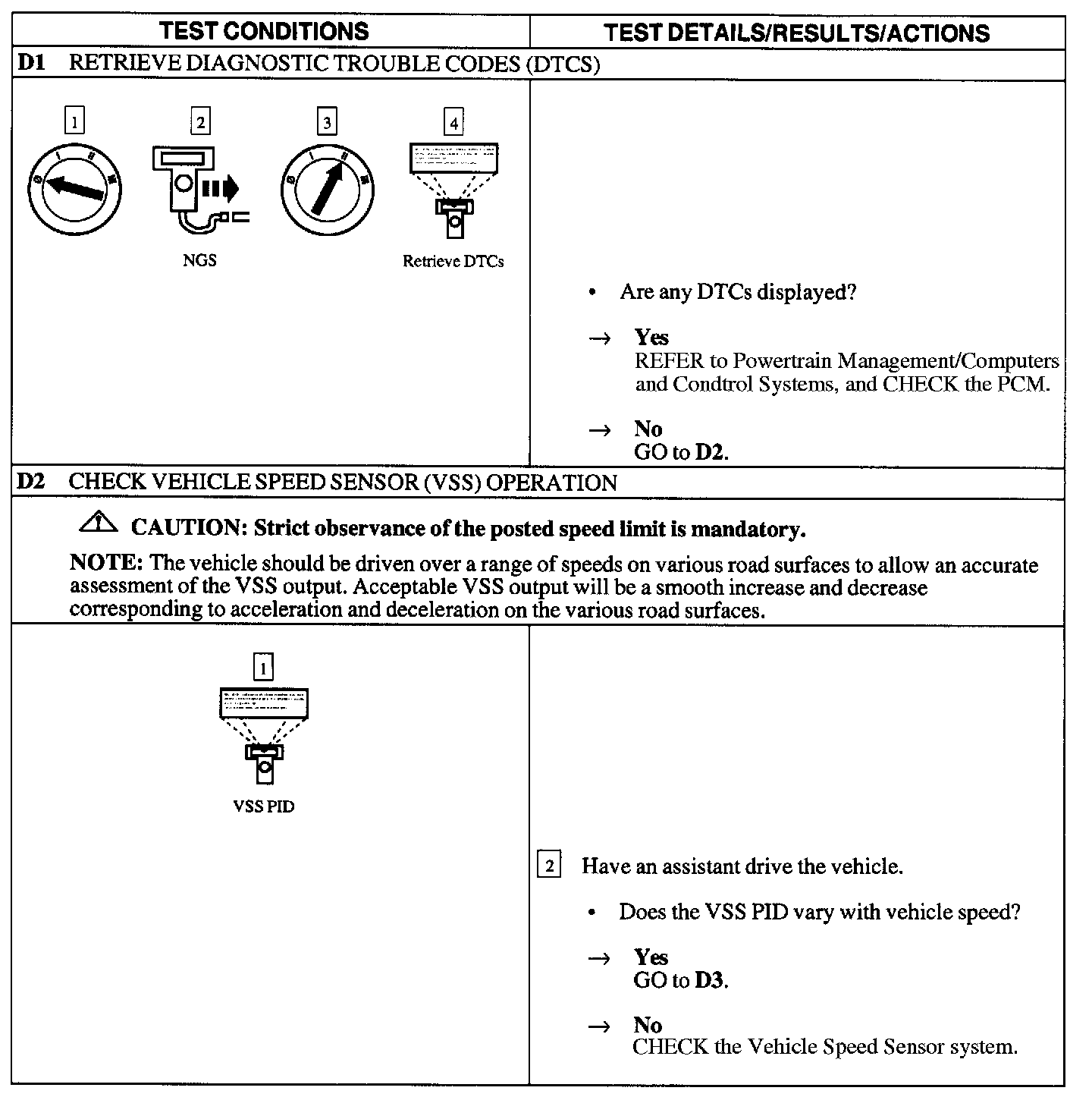

D1 - D2:

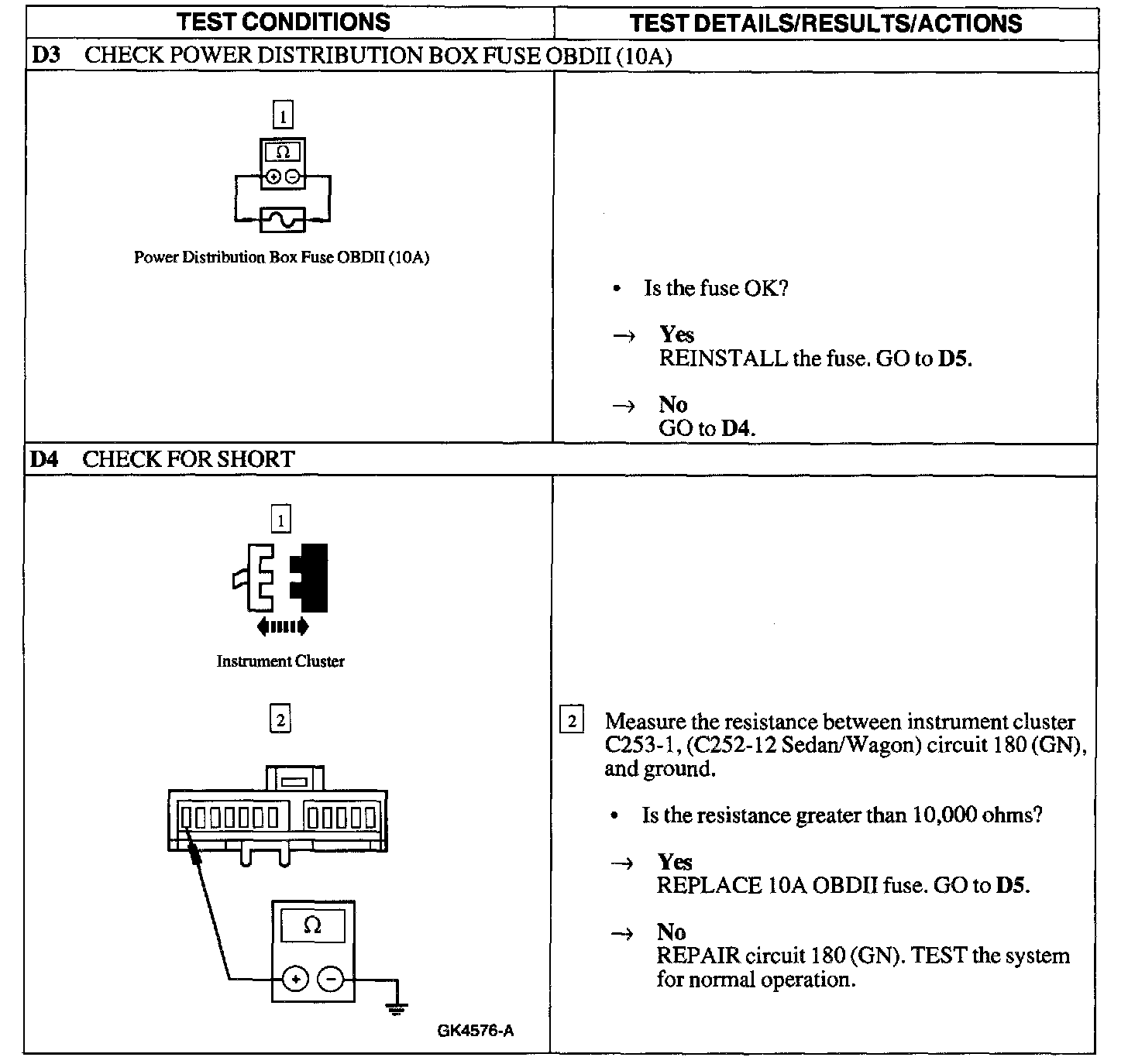

D3 - D4:

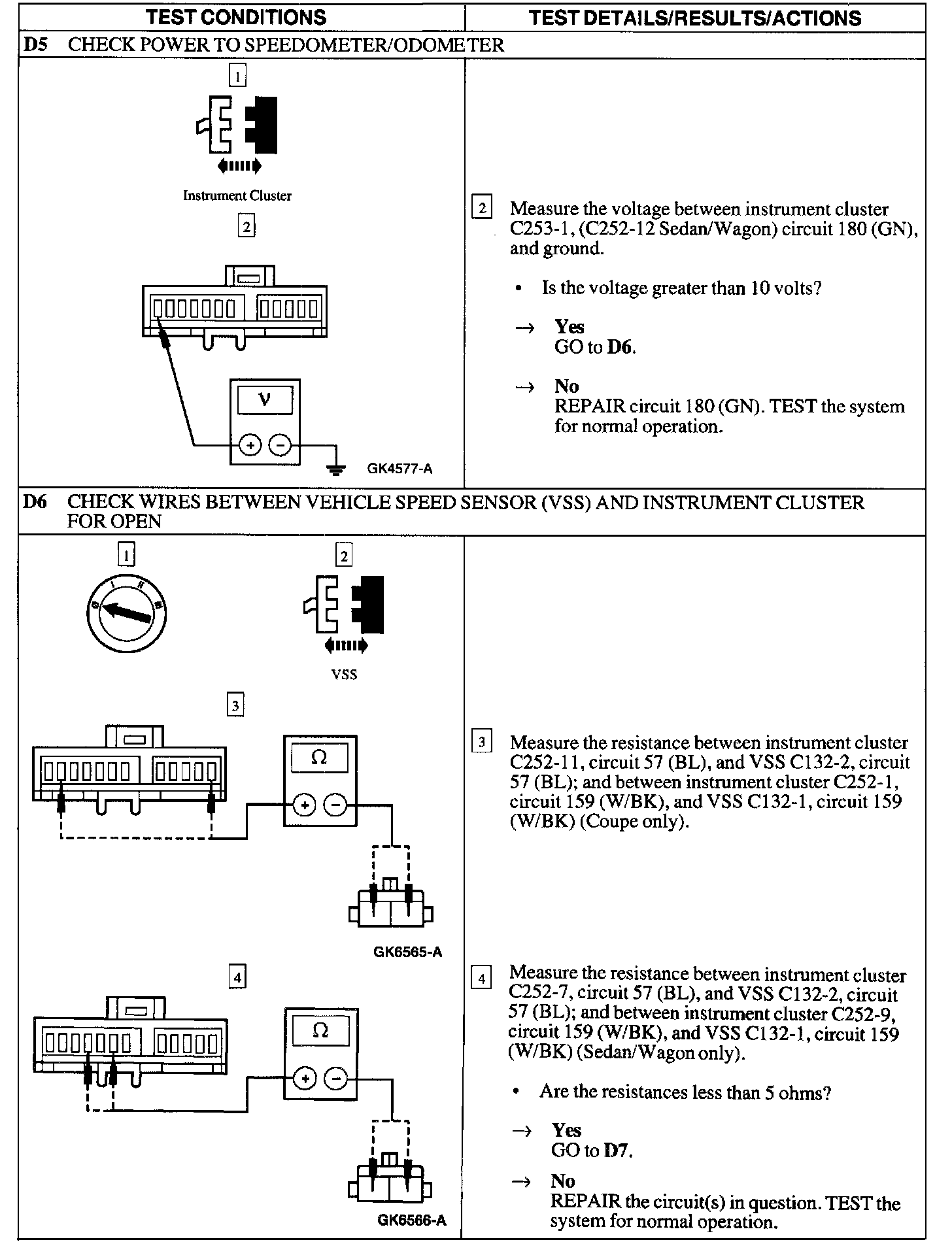

D5 - D6:

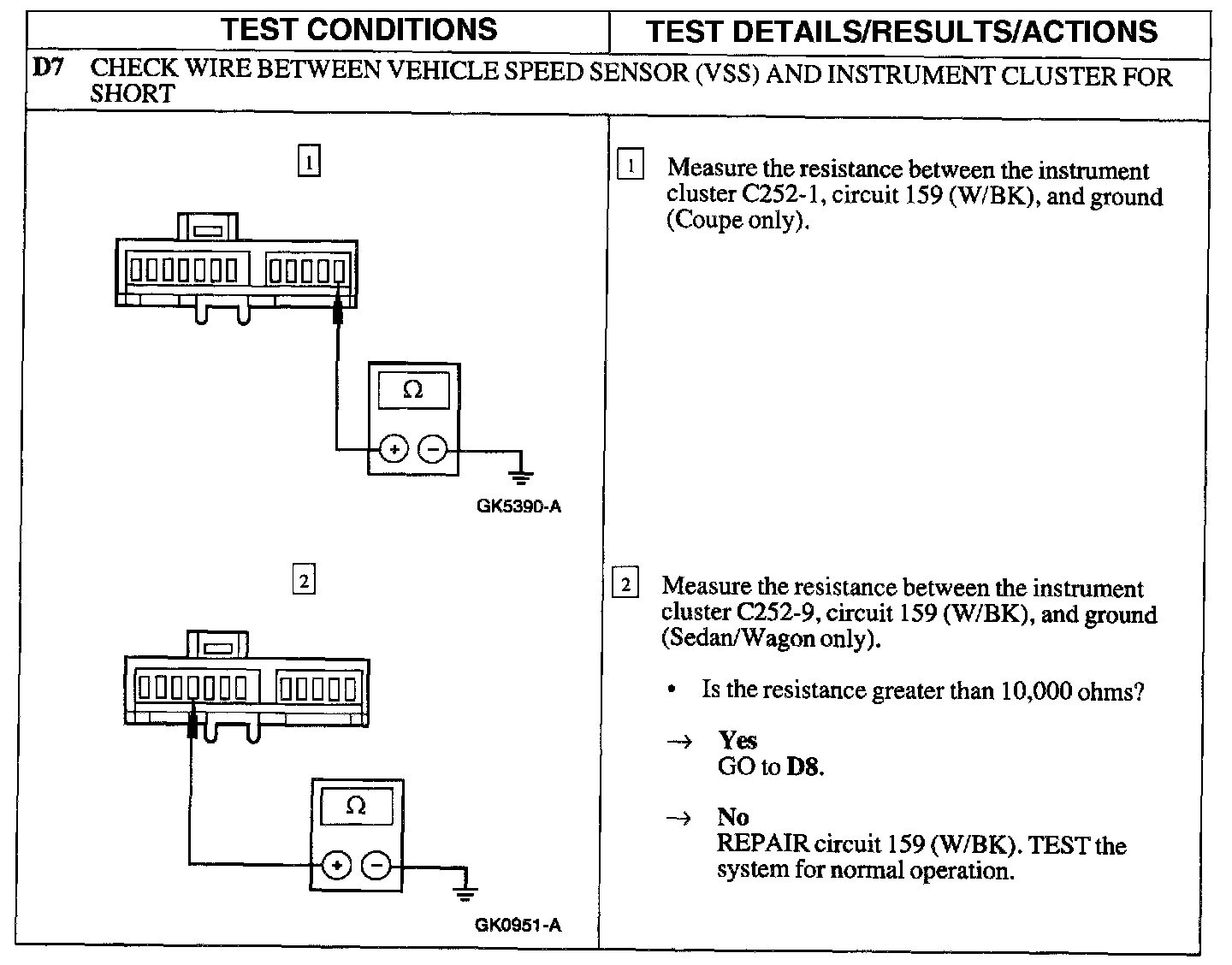

D7:

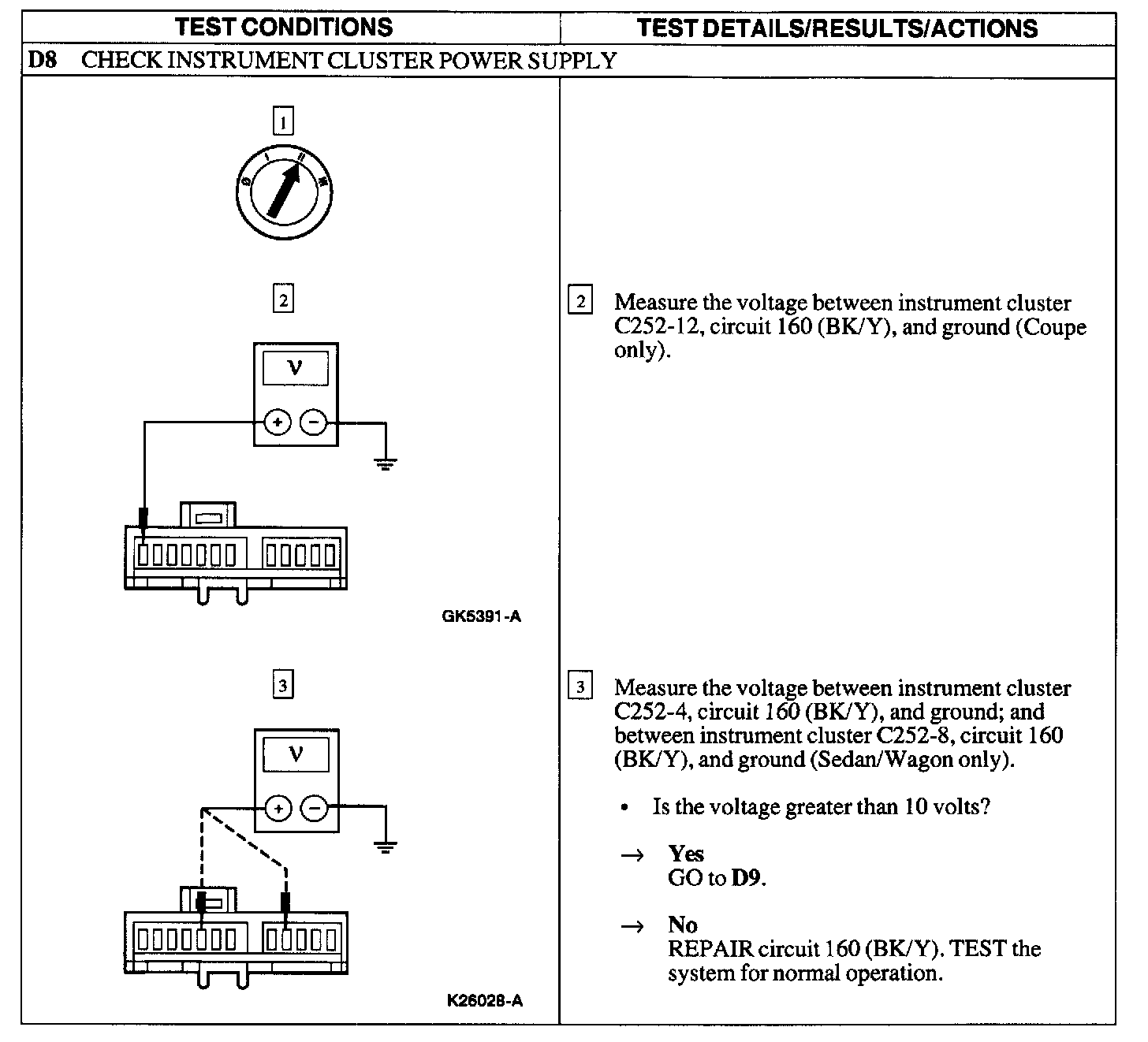

D8:

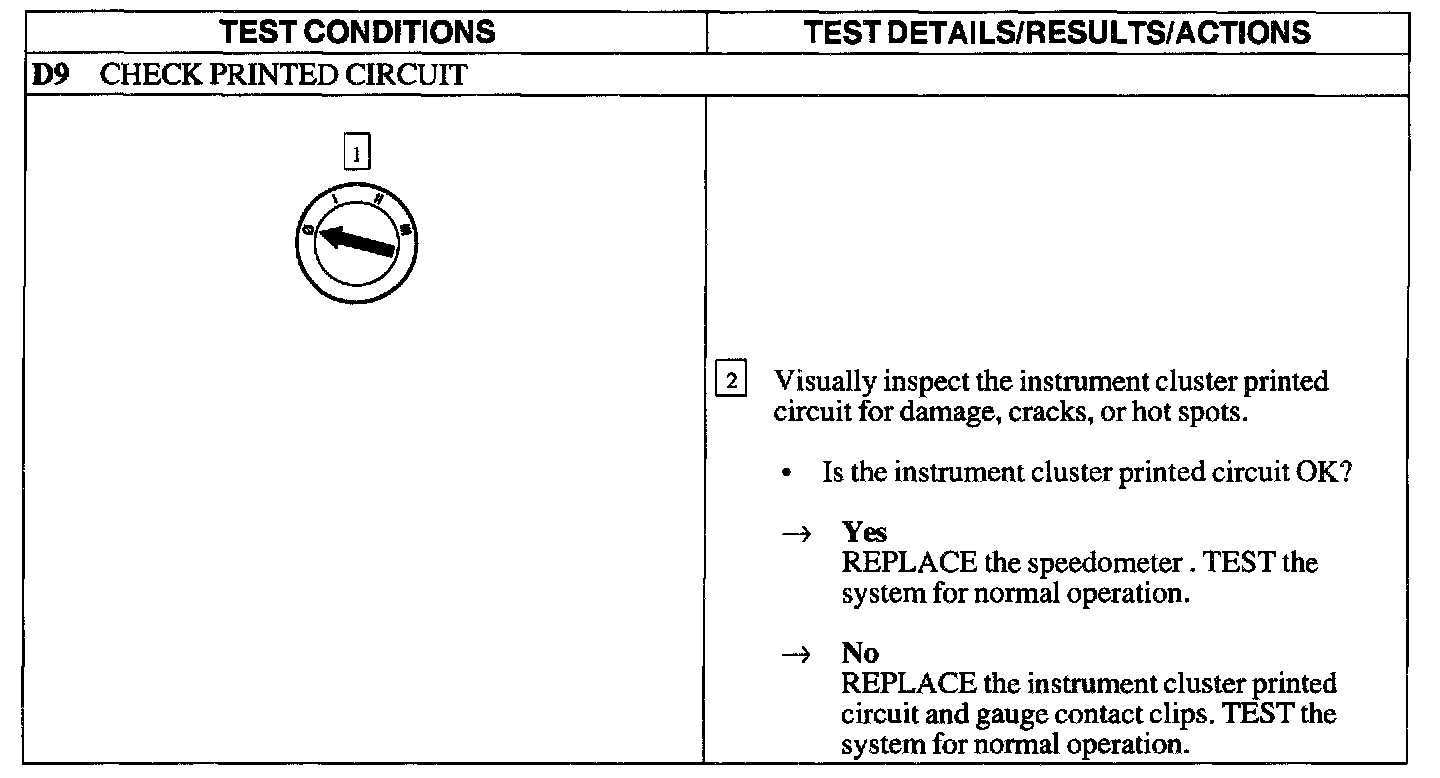

D9:
