Tracer L4-122 2.0L SOHC
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Instrument Cluster
>>
Test A: All Instrument Cluster Displays Inoperative/Erratic
Test A: All Instrument Cluster Displays Inoperative/Erratic

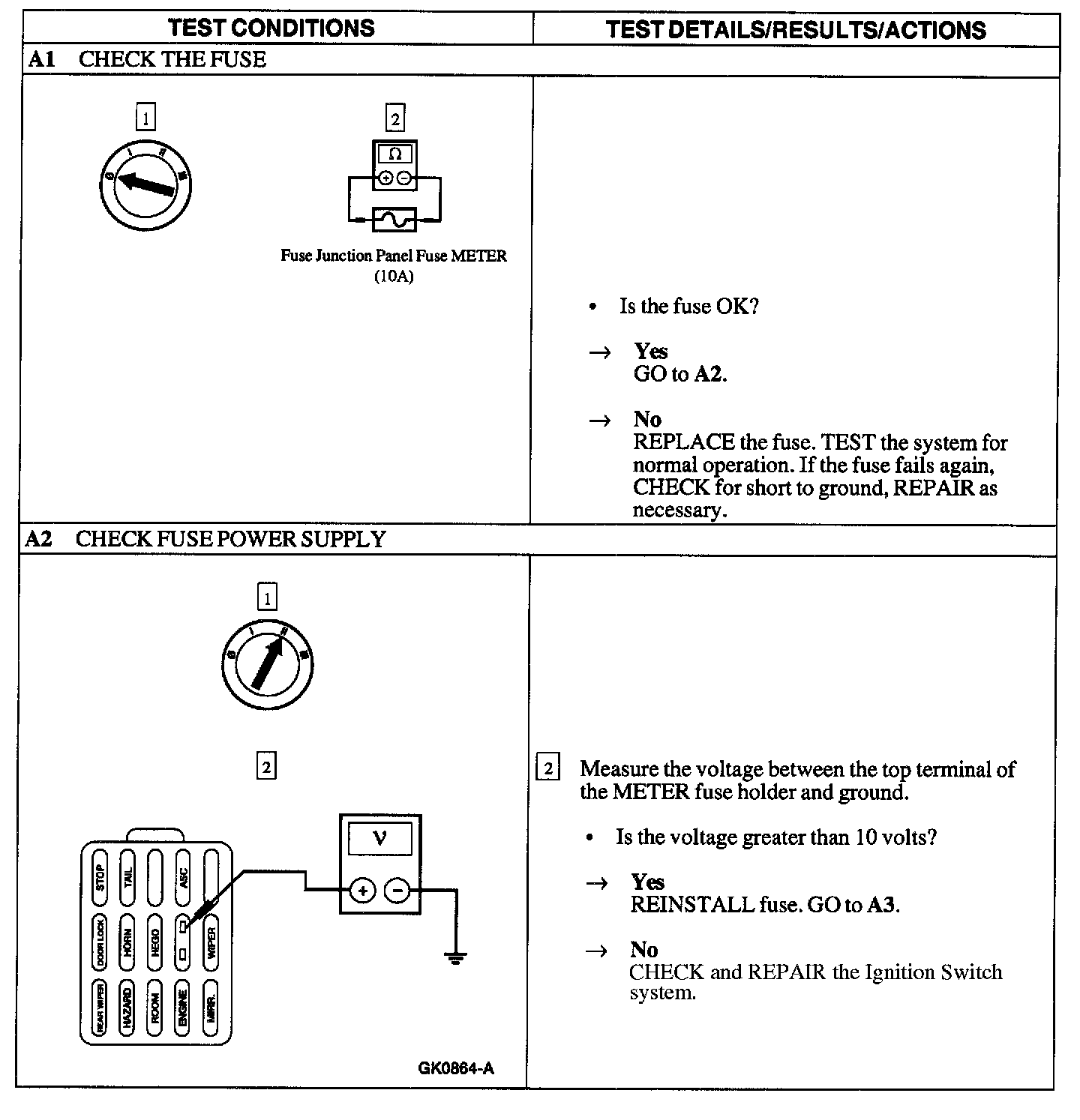

A1 - A2:

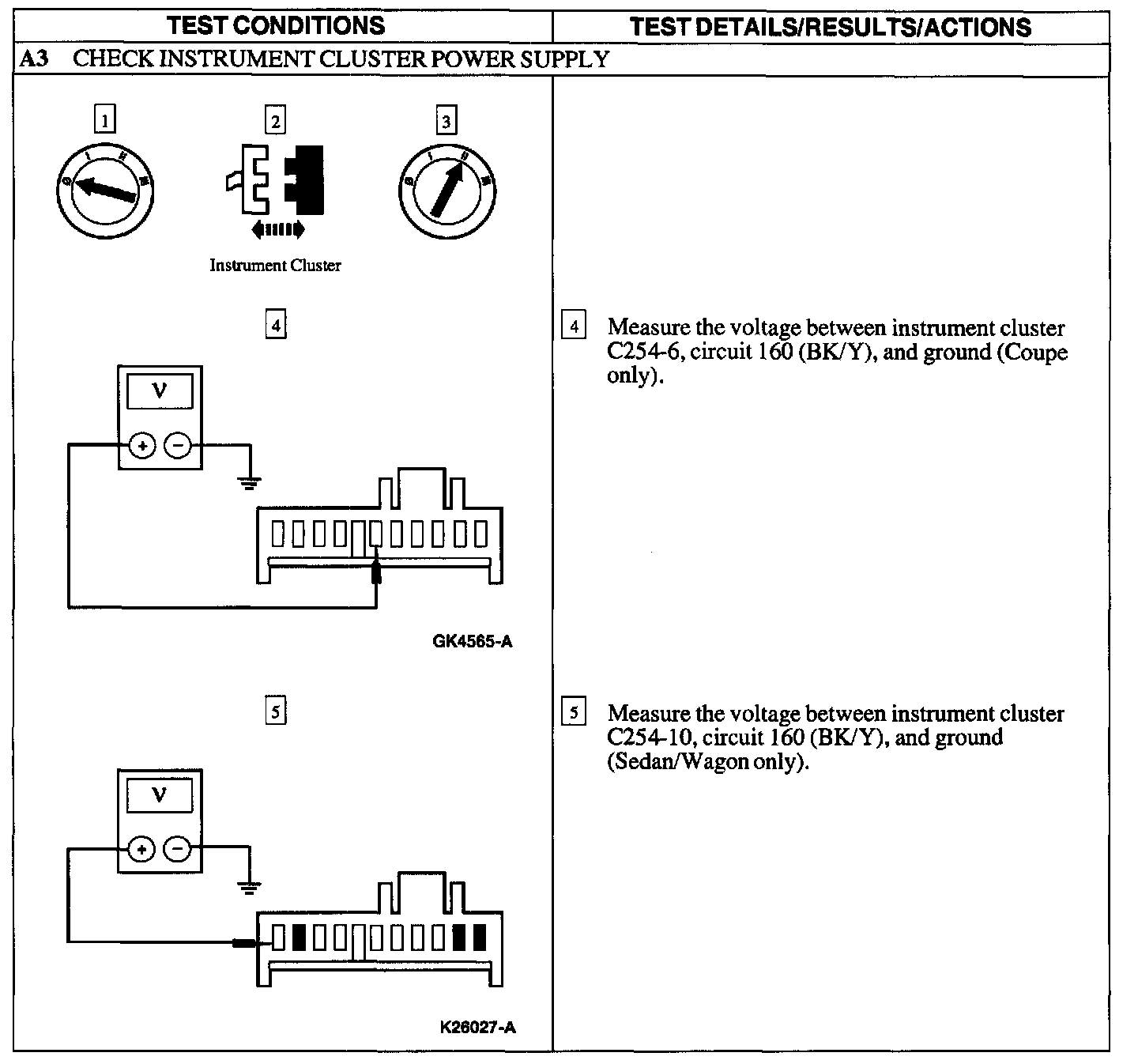

A3 (Part 1 Of 2):

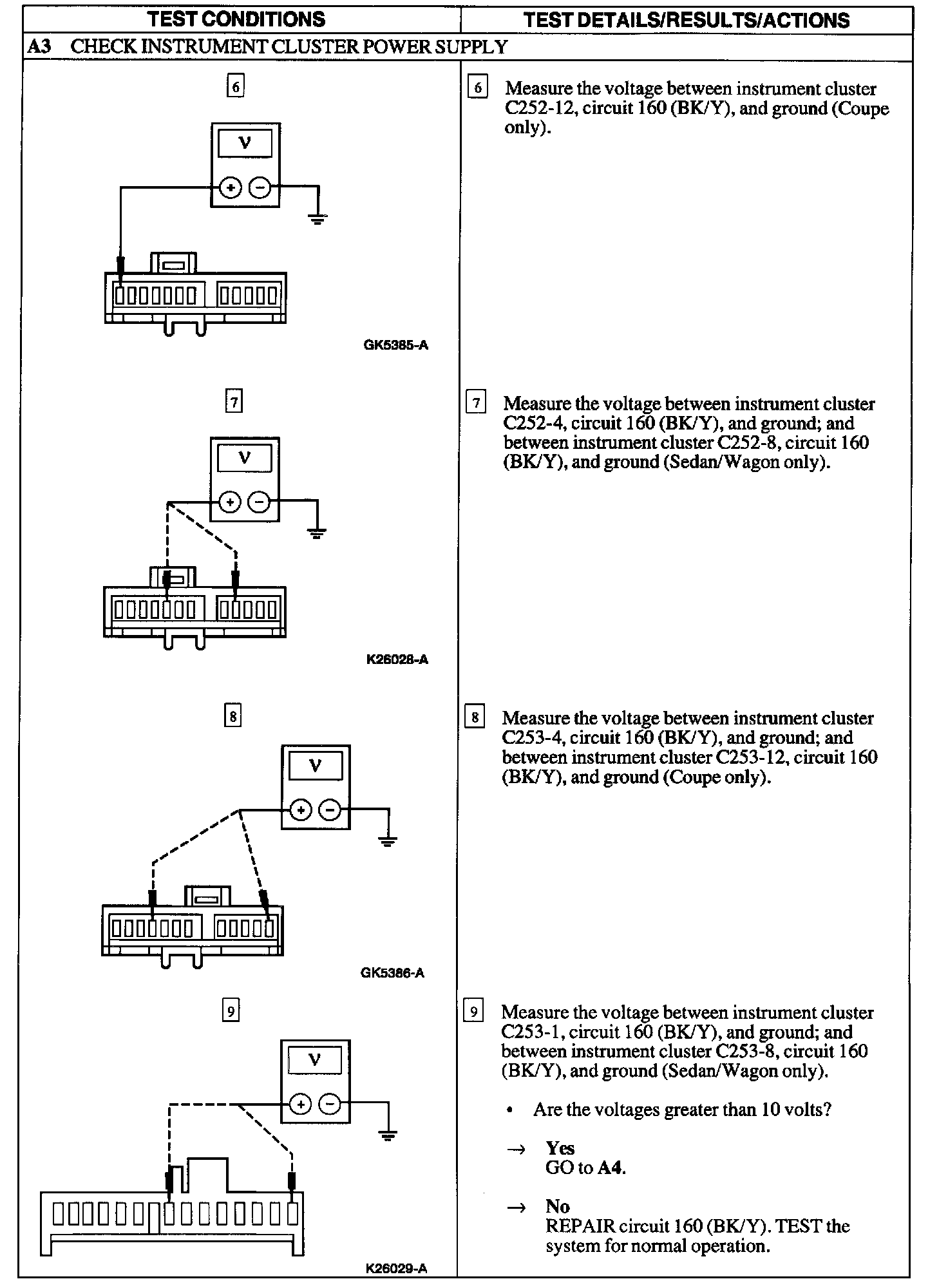

A3 (Part 2 Of 2):

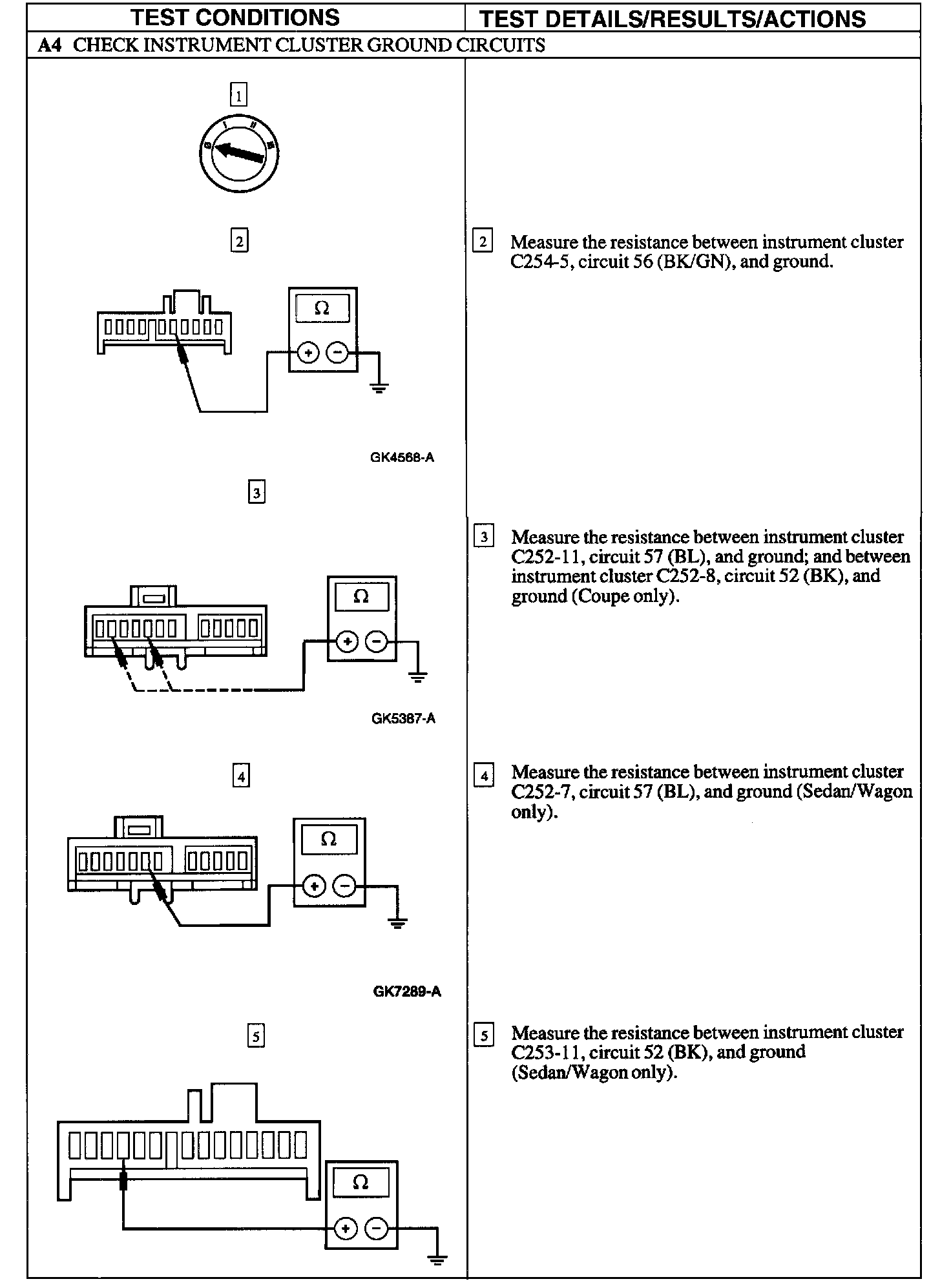

A4 (Part 1 Of 2):

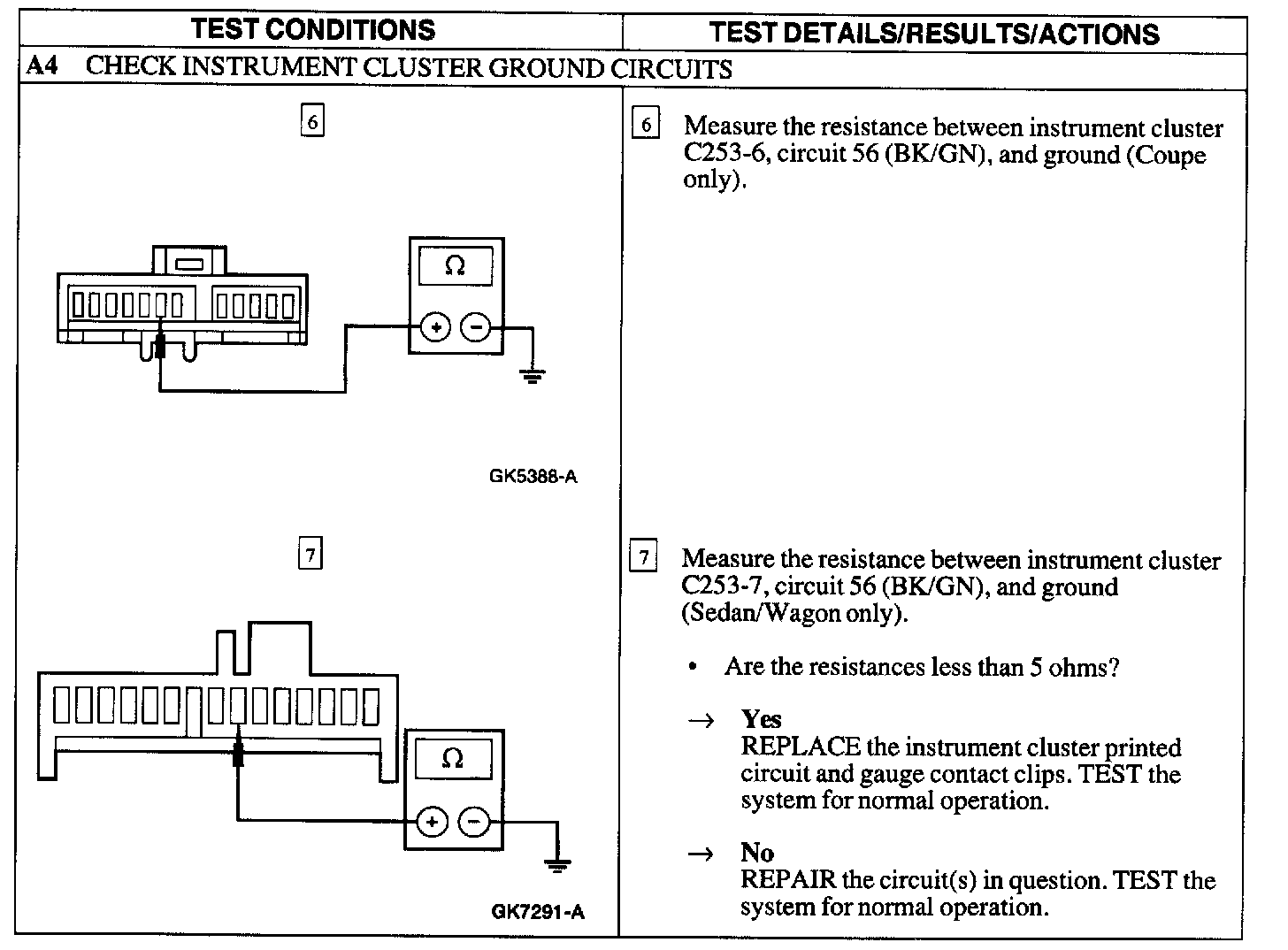

A4 (Part 2 Of 2):
