S: Improper Check Coolant Indicator Operation
S: Improper Check Coolant Indicator Operation

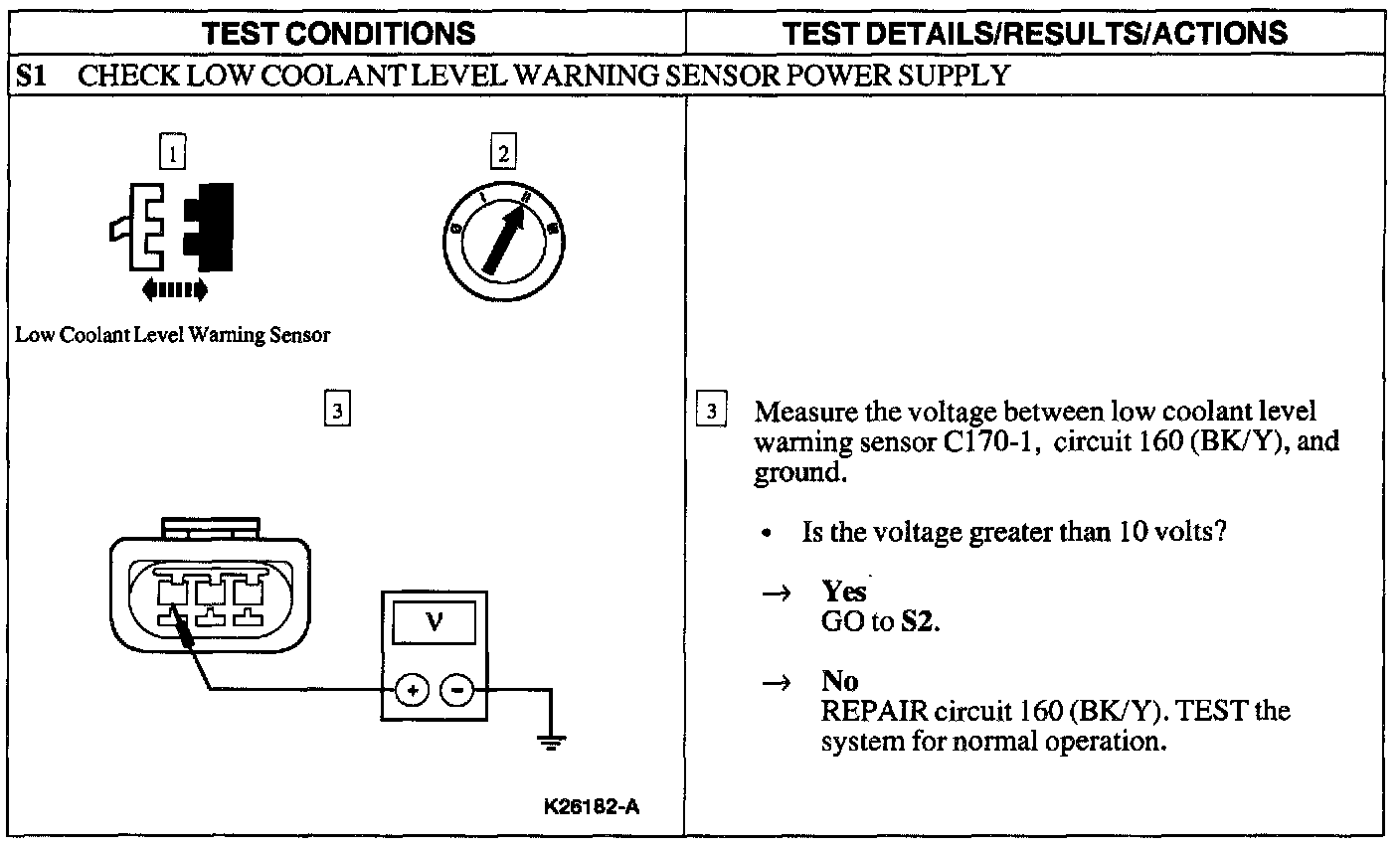

S1:

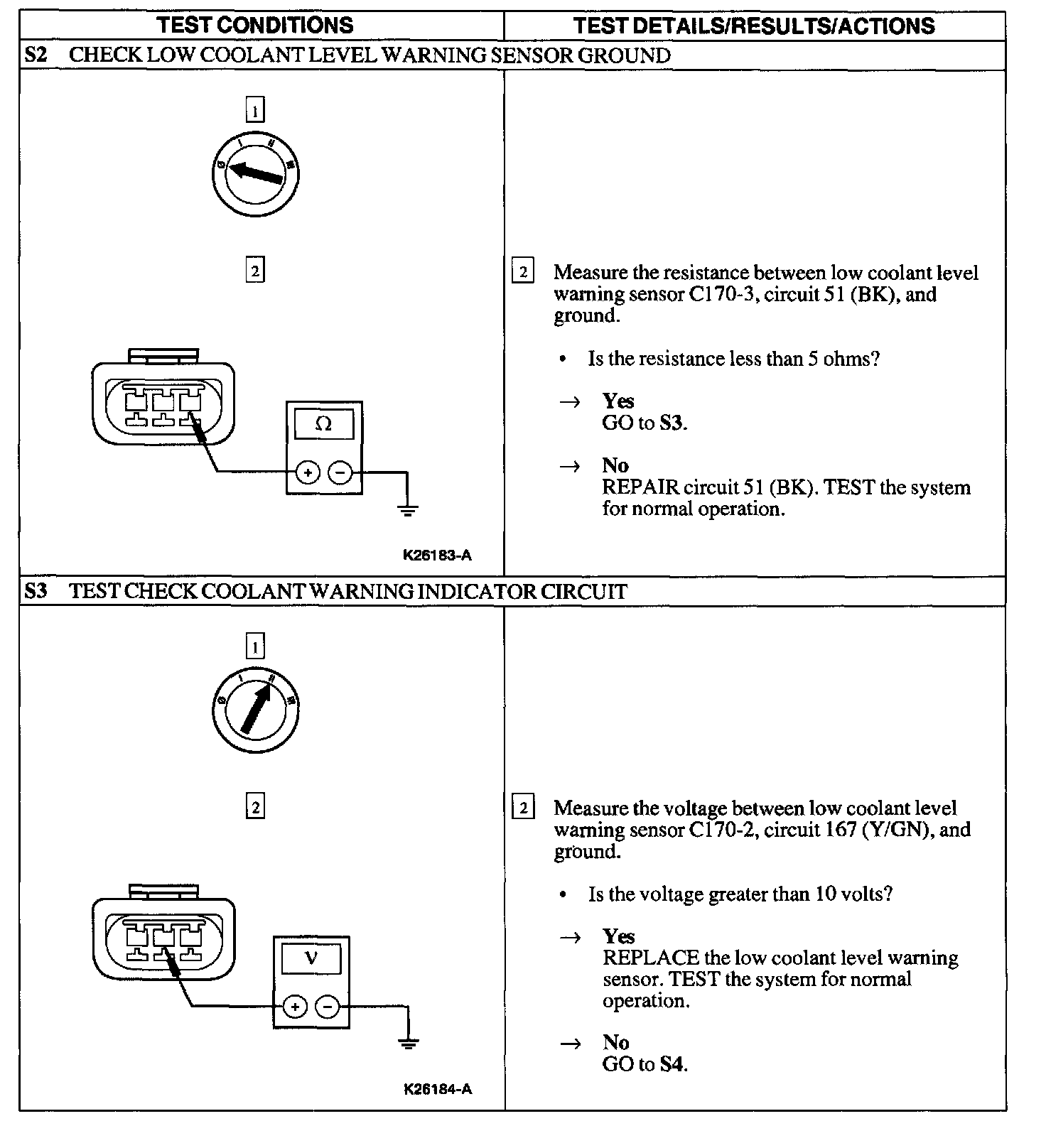

S2 - S3:

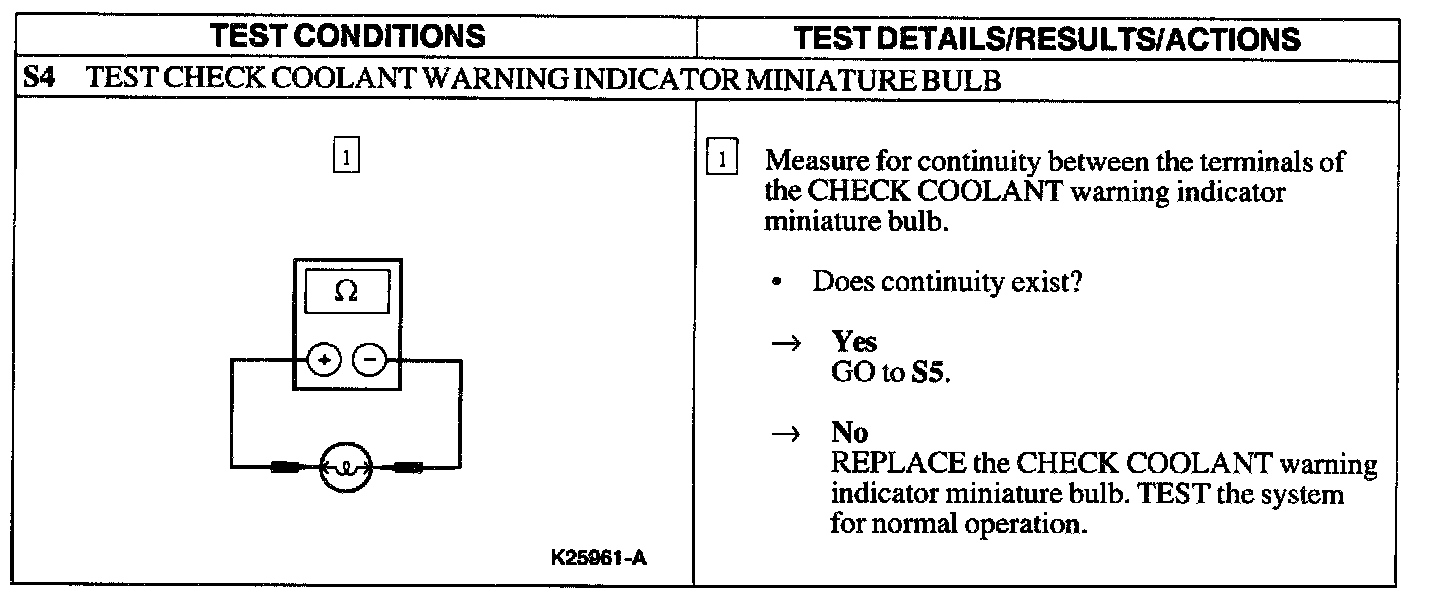

S4:

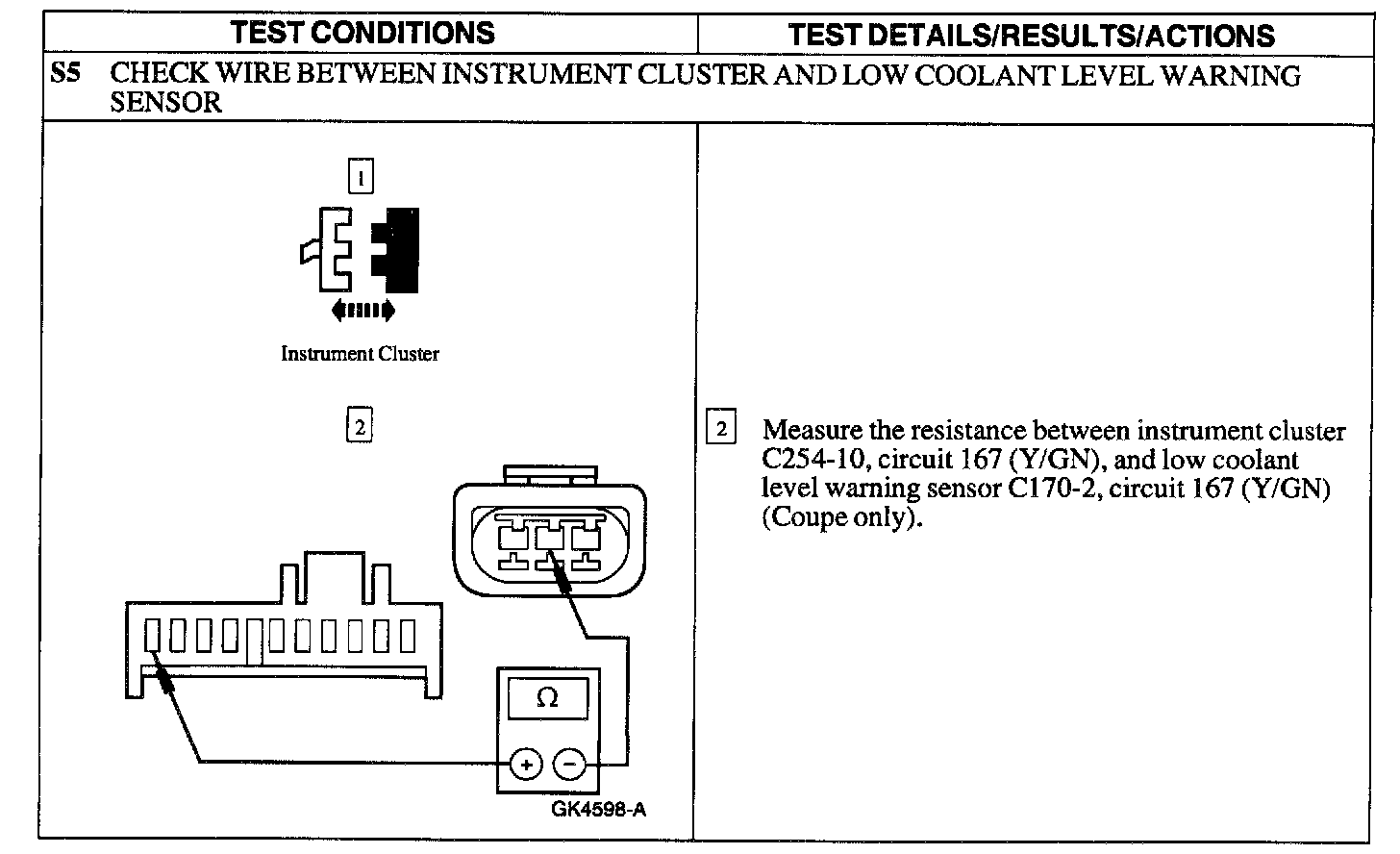

S5 (Part 1 Of 2):

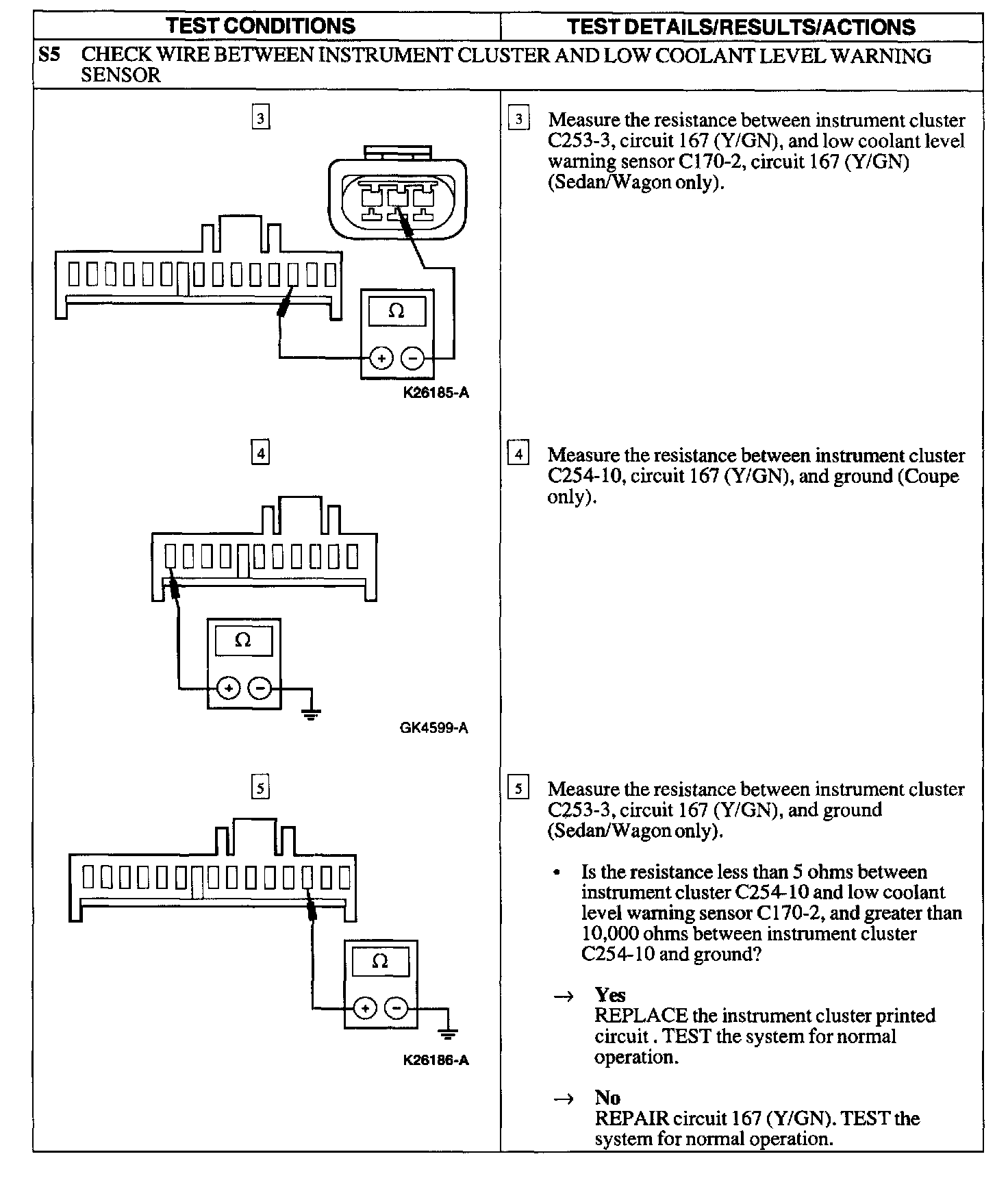

S5 (Part 2 Of 2):
