Sedan/Wagon

DISASSEMBLY

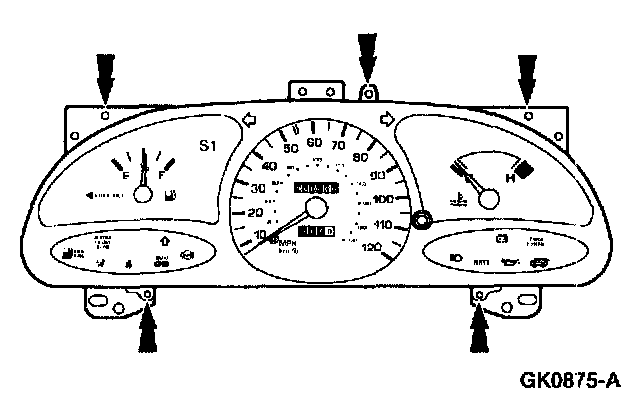

1. Remove the five instrument cluster mask screws and remove the mask and lens.

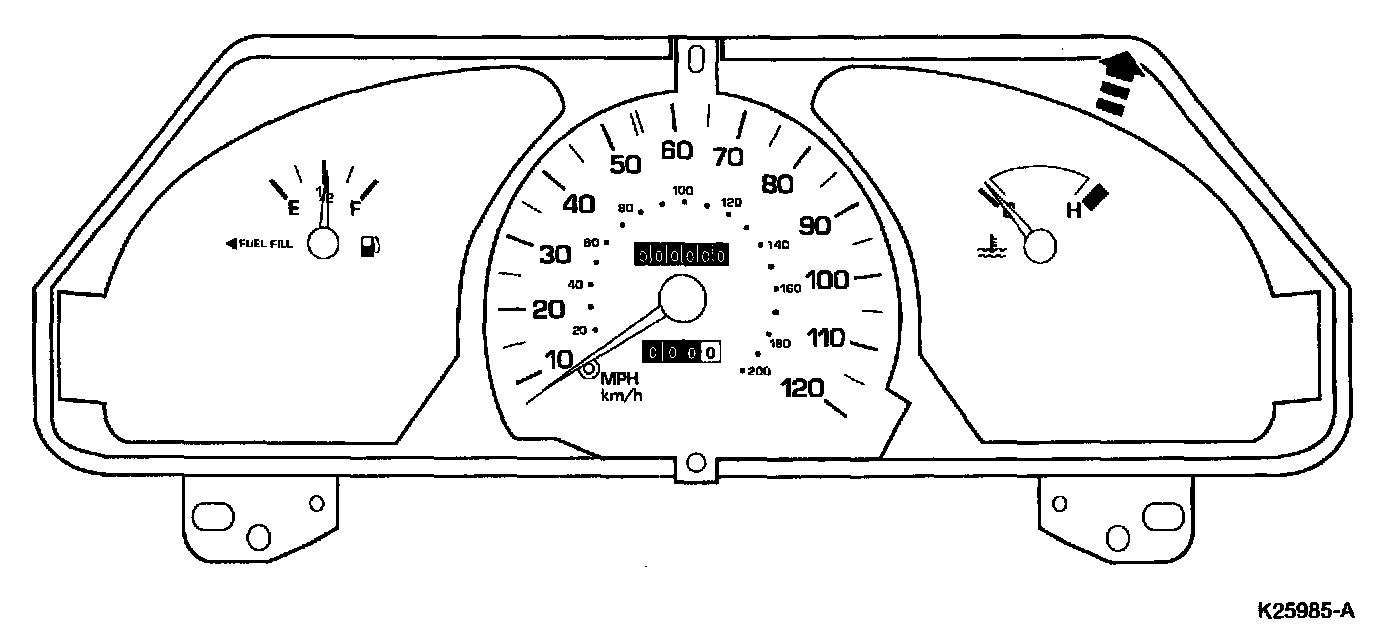

2. Remove the Engine Coolant Temperature Gauge.


CAUTION: Handle gauges and components with care to avoid possible damage.

NOTE: Make no attempt to adjust the needle.

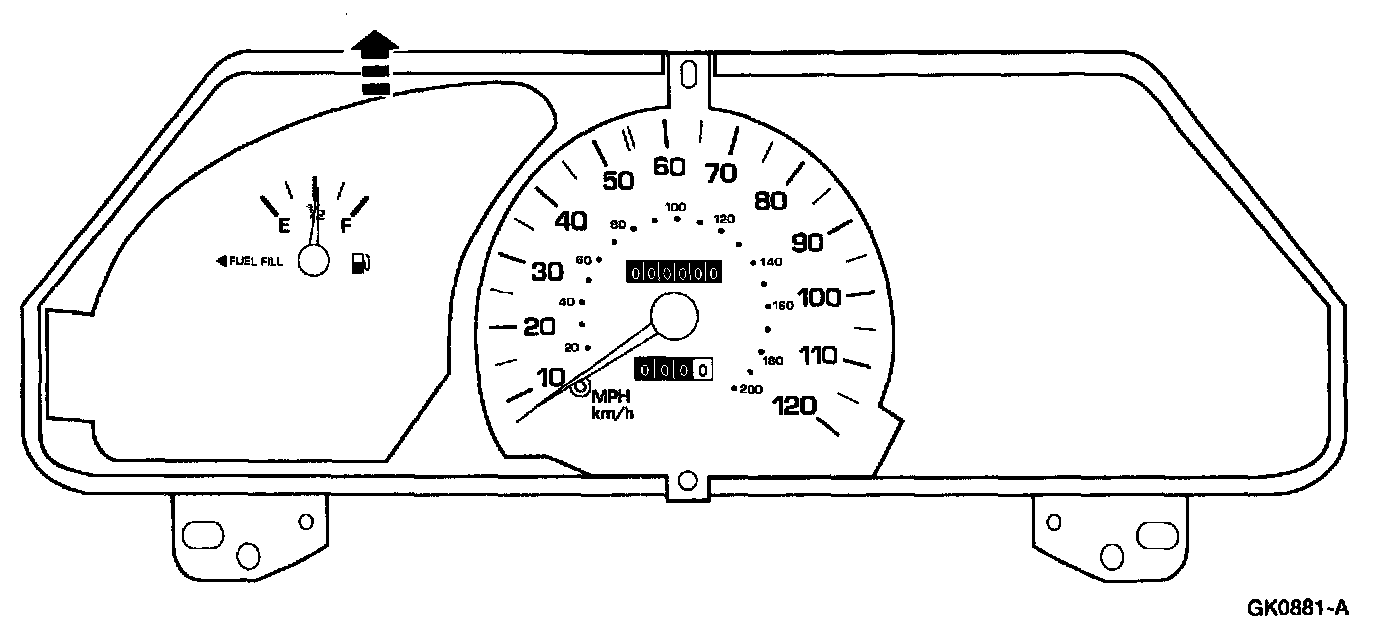

3. Remove the fuel gauge.

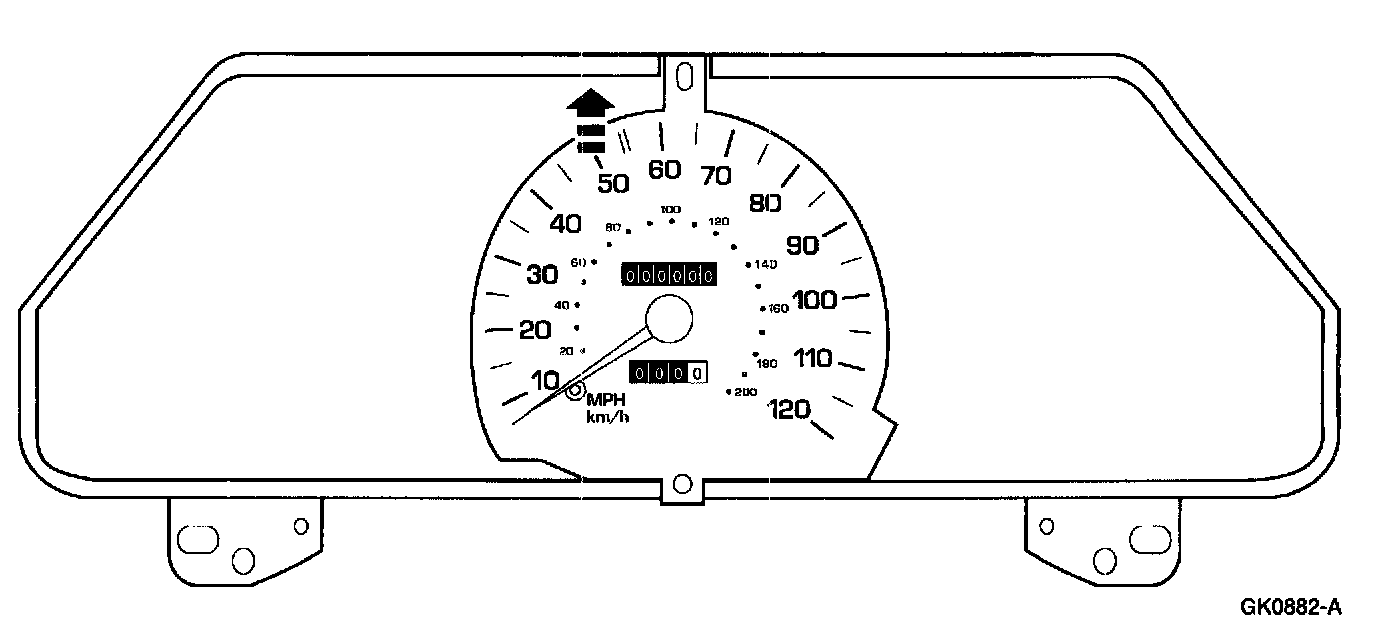

4. Remove the speedometer.

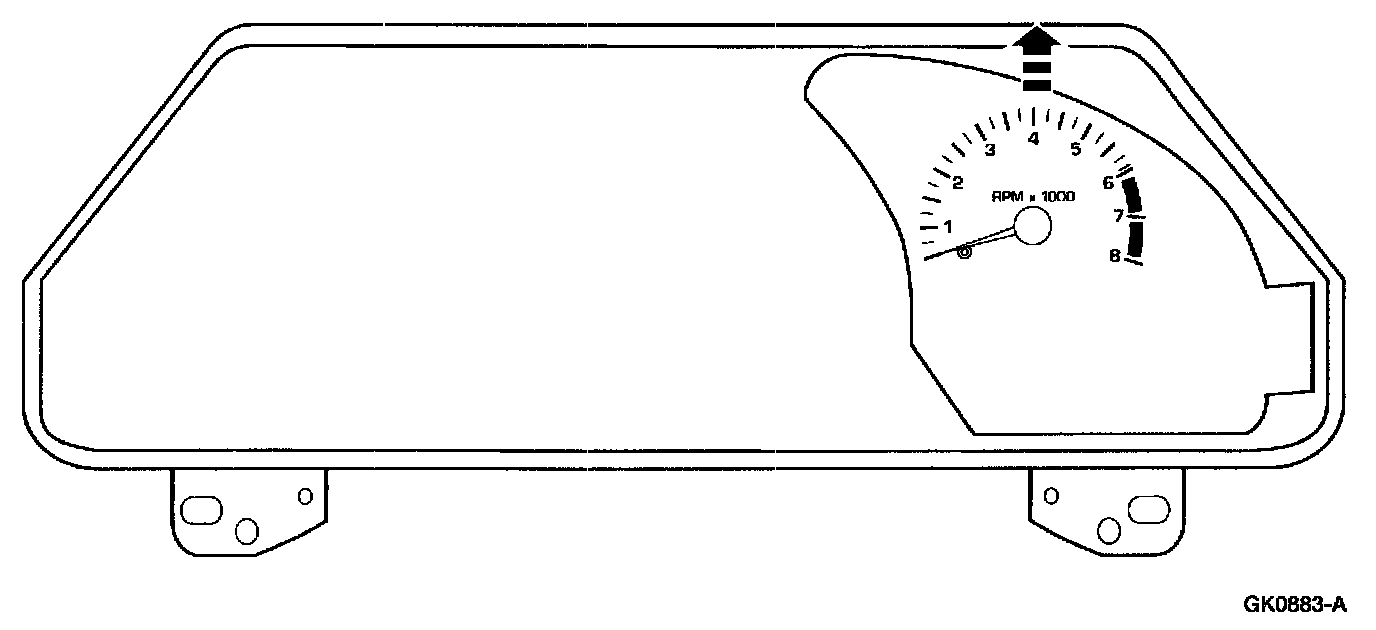

5. Remove the tachometer, if equipped.

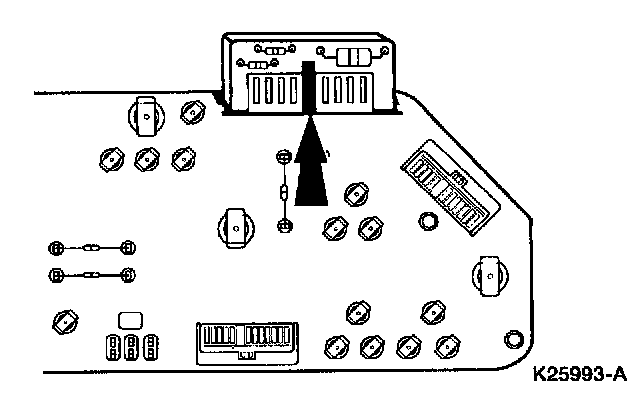

6. Depress the tang and remove the instrument cluster gauge amplifier from the rear of the instrument cluster.







7. Remove miniature bulbs.

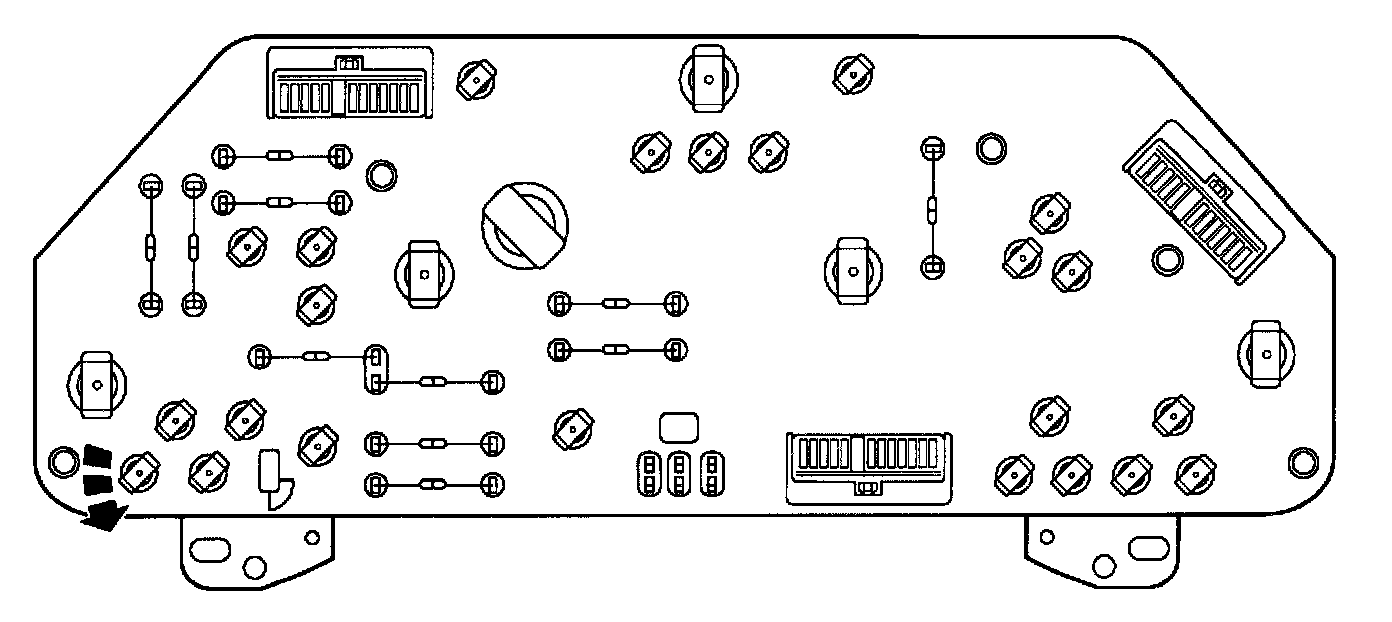

8. Remove all the gauge contact clips from the rear of the instrument cluster by compressing the clip ends together and pulling the clips out by hand. Discard the clips.

CAUTION: When removing the gauge contact clips be careful not to damage the instrument cluster printed circuit.


9. Carefully remove the instrument cluster printed circuit.

ASSEMBLY
1. To assemble, reverse the disassembly procedure.
