Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Testing and Inspection >> Pinpoint Tests >> E: Door Ajar Chime Inop/Not Operate Properly

E: Door Ajar Chime Inop/Not Operate Properly

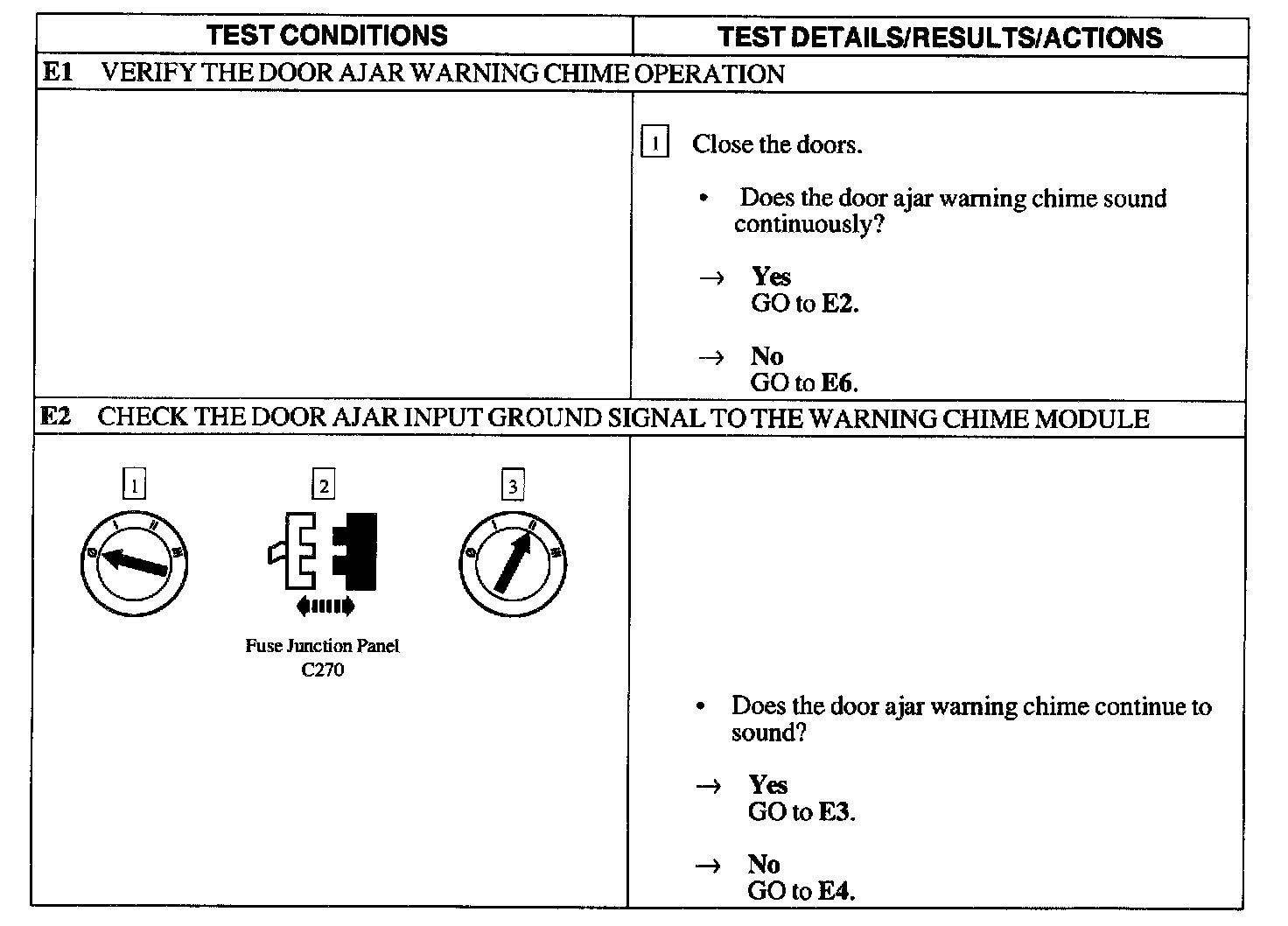

E1 - E2:

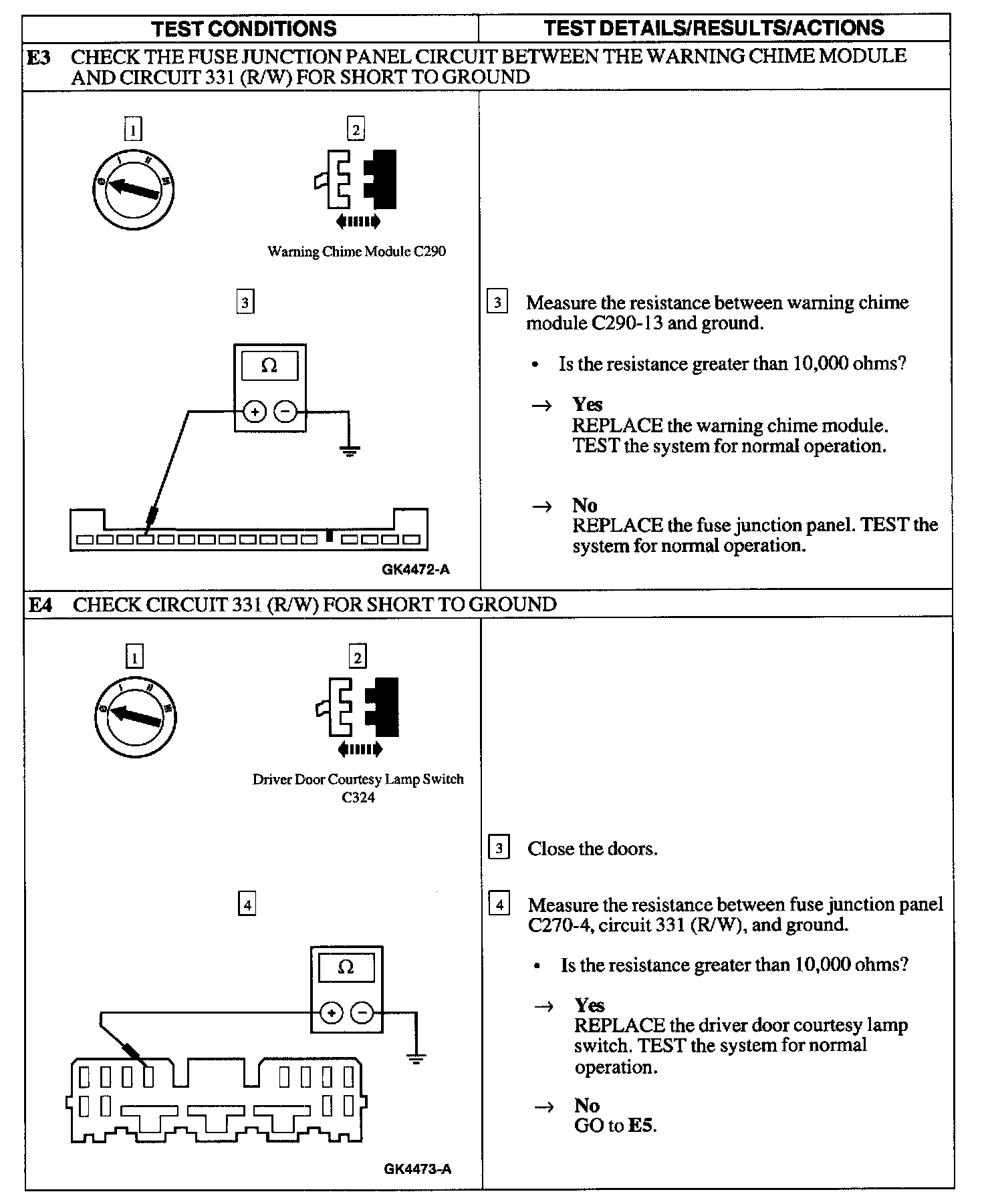

E3 - E4:

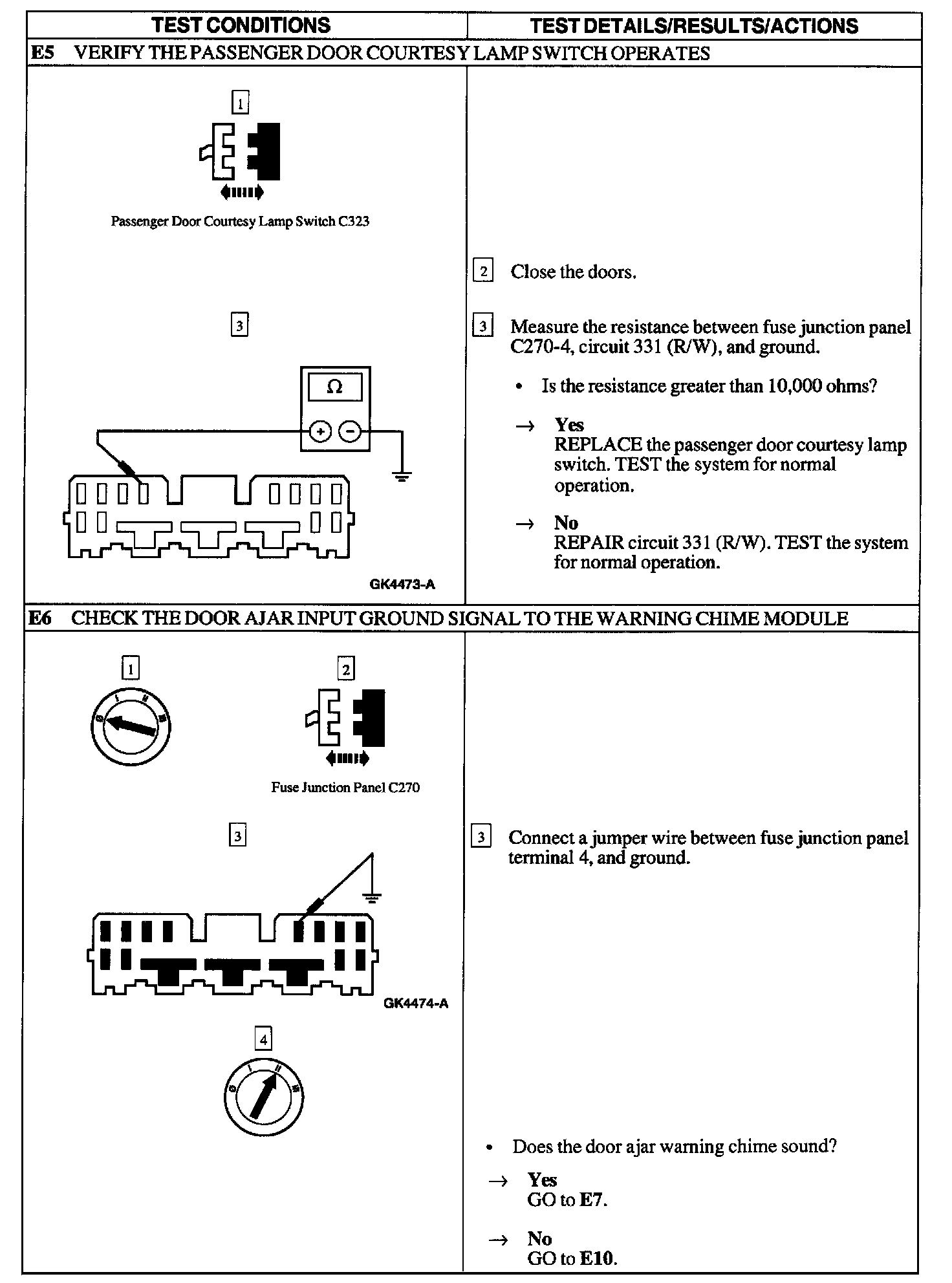

E5 - E6:

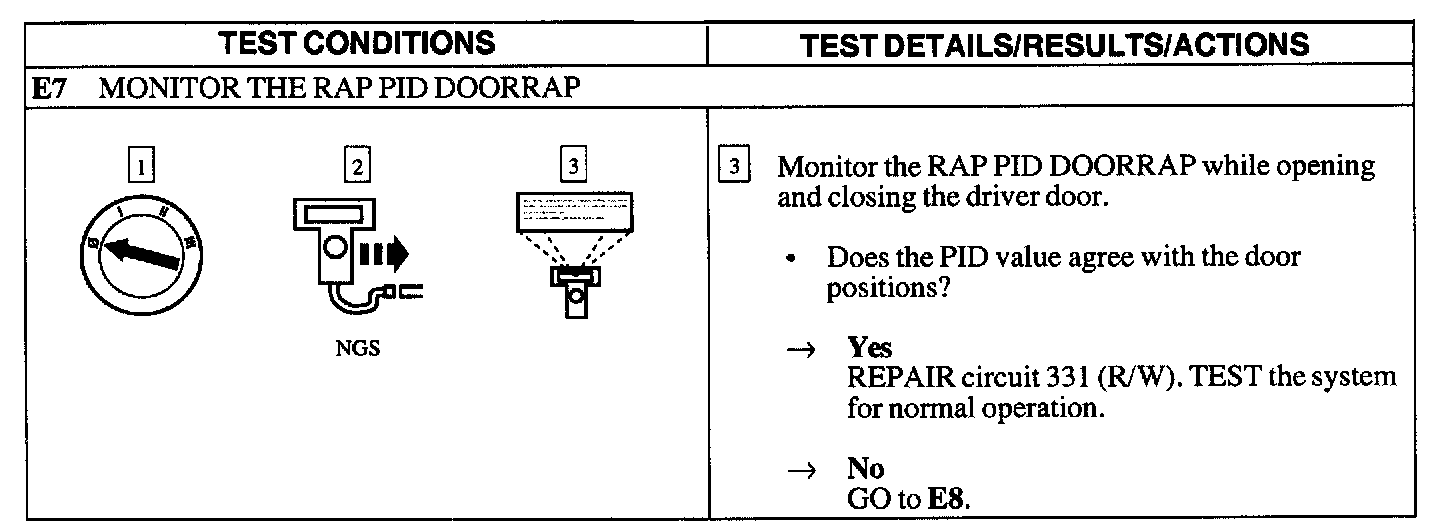

E7:






E8 - E9:

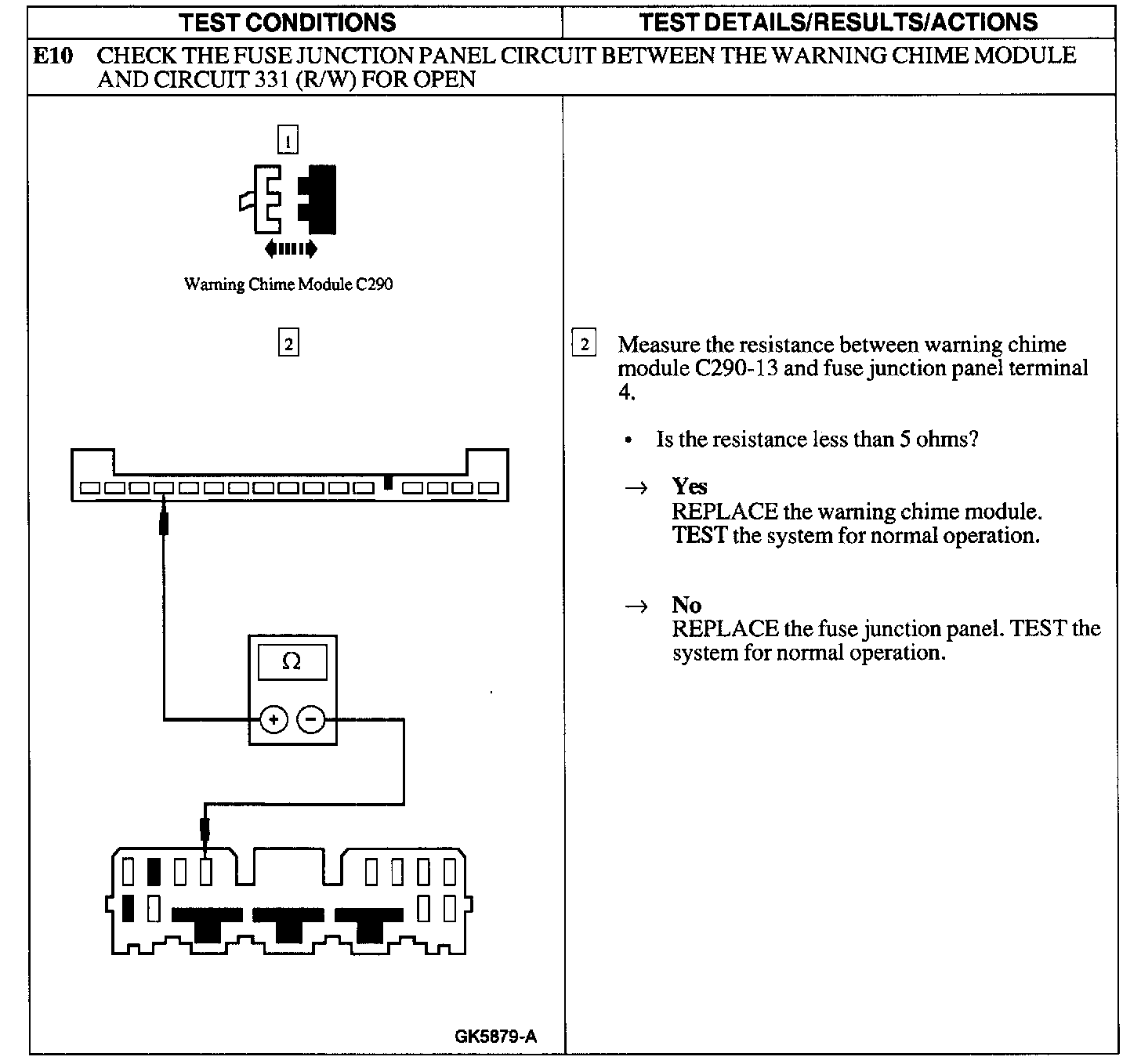

E10:
