Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device >> Testing and Inspection >> Pinpoint Tests >> B: Safety Belt Warning Chime Inop/Not Operate Properly

B: Safety Belt Warning Chime Inop/Not Operate Properly

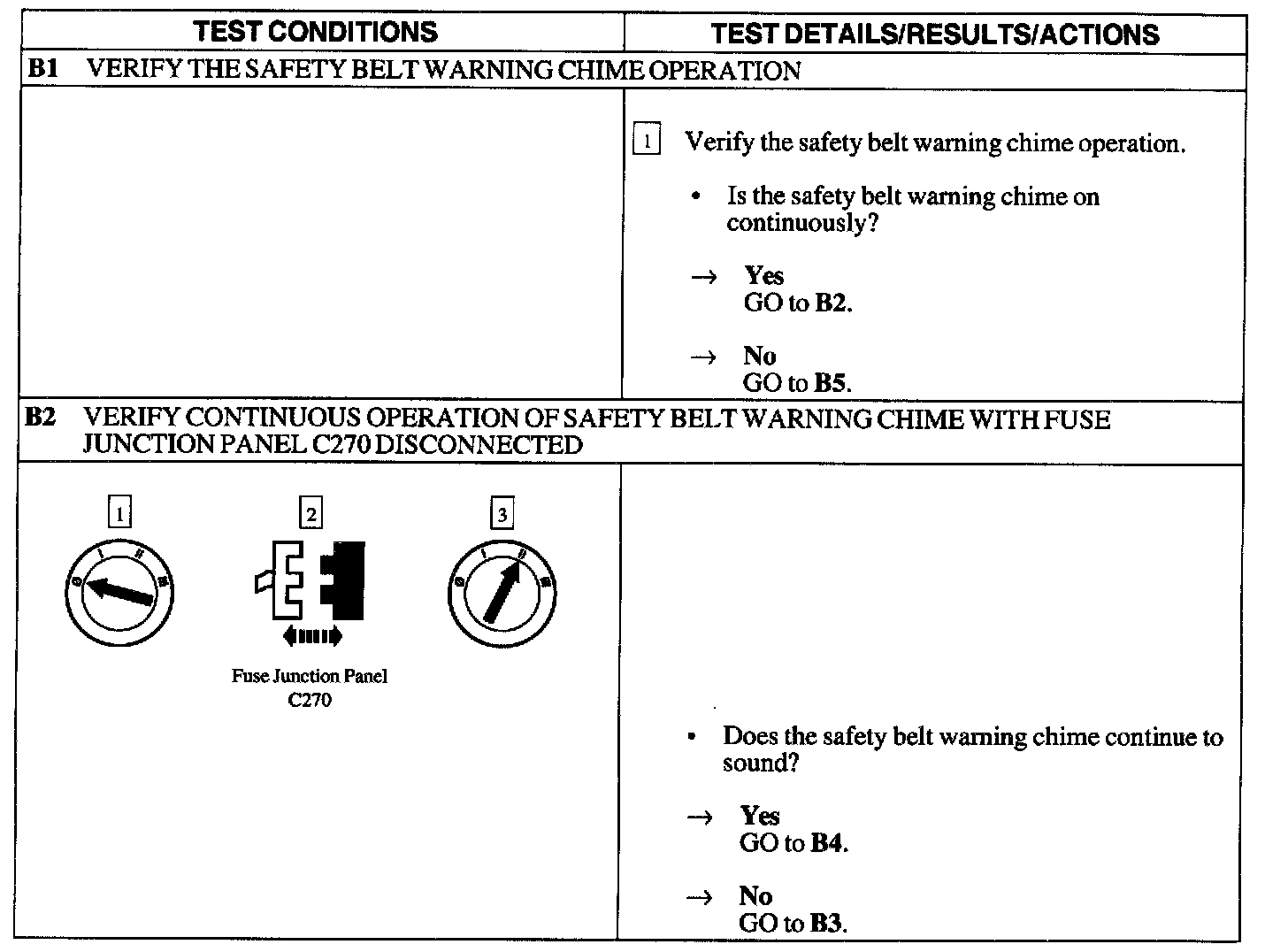

B1 - B2:

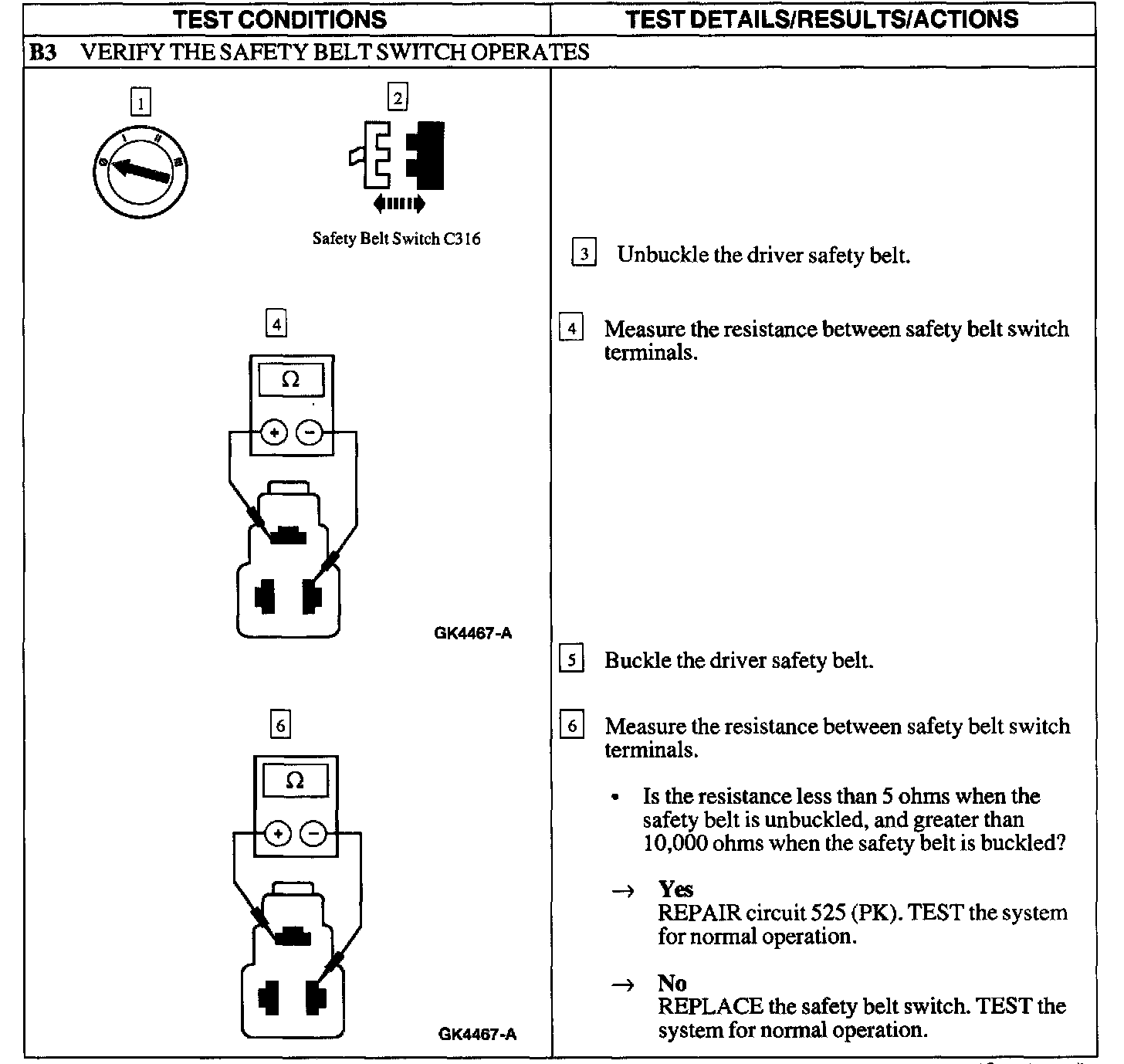

B3:

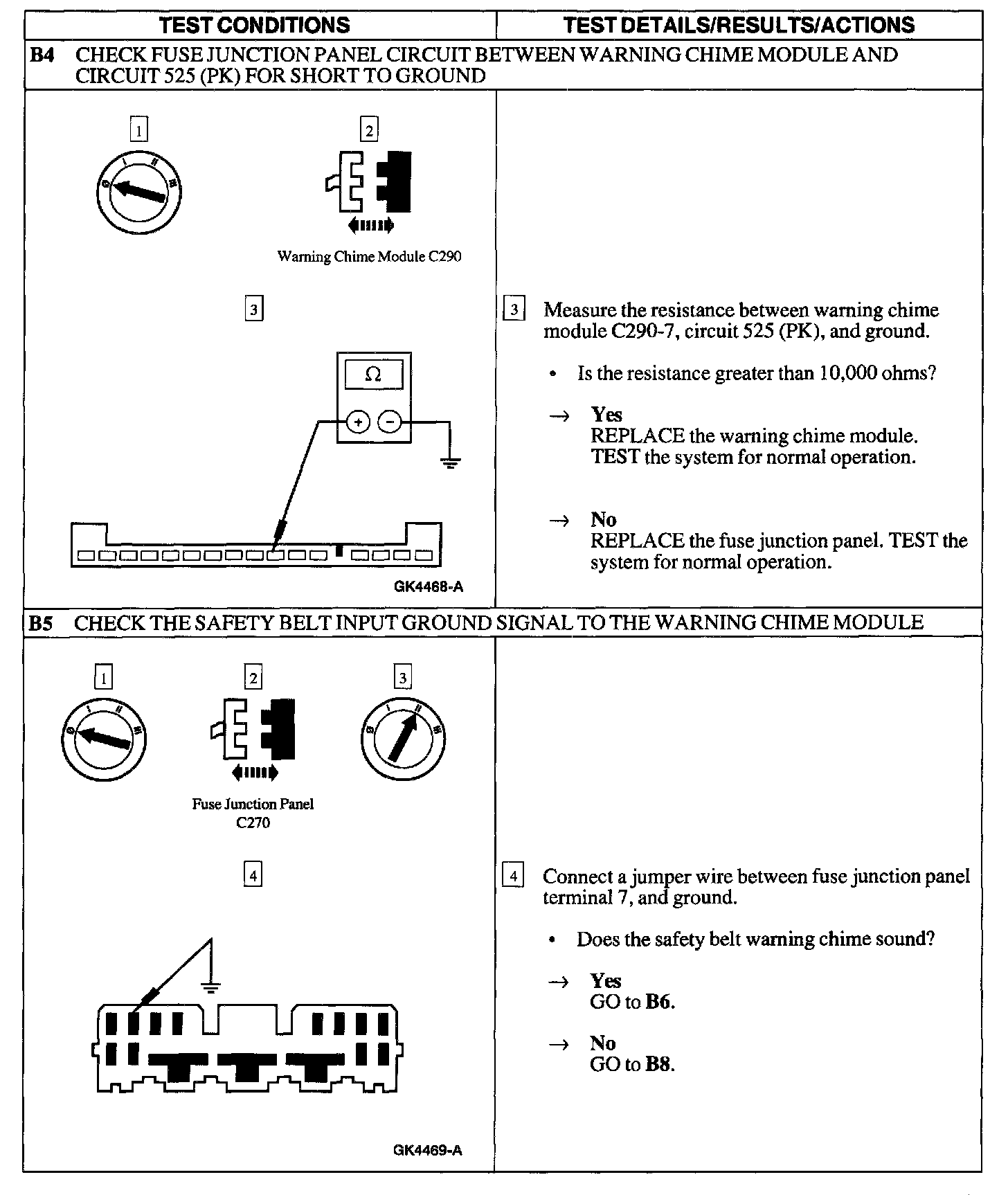

B4 - B5:

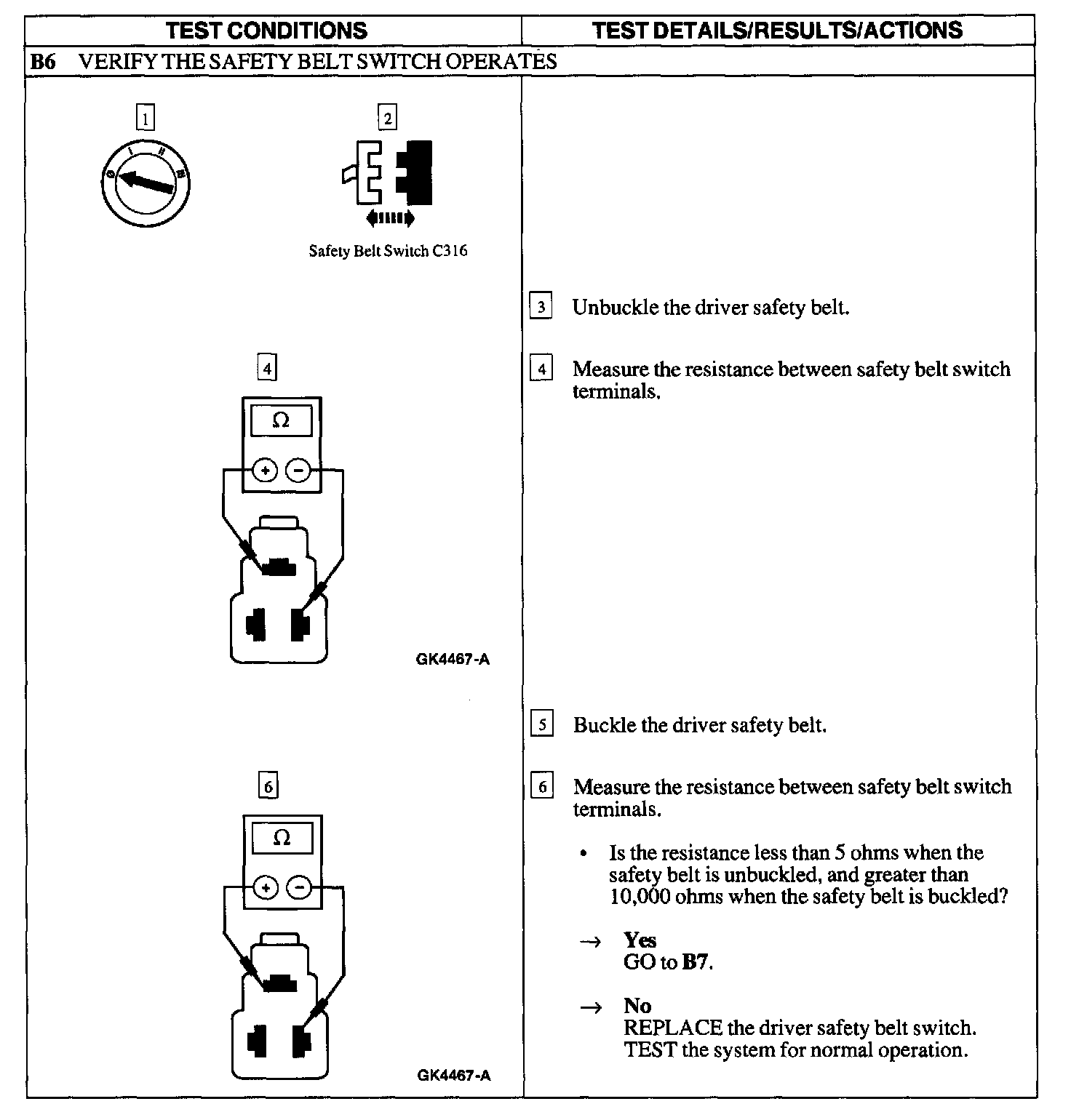

B6:

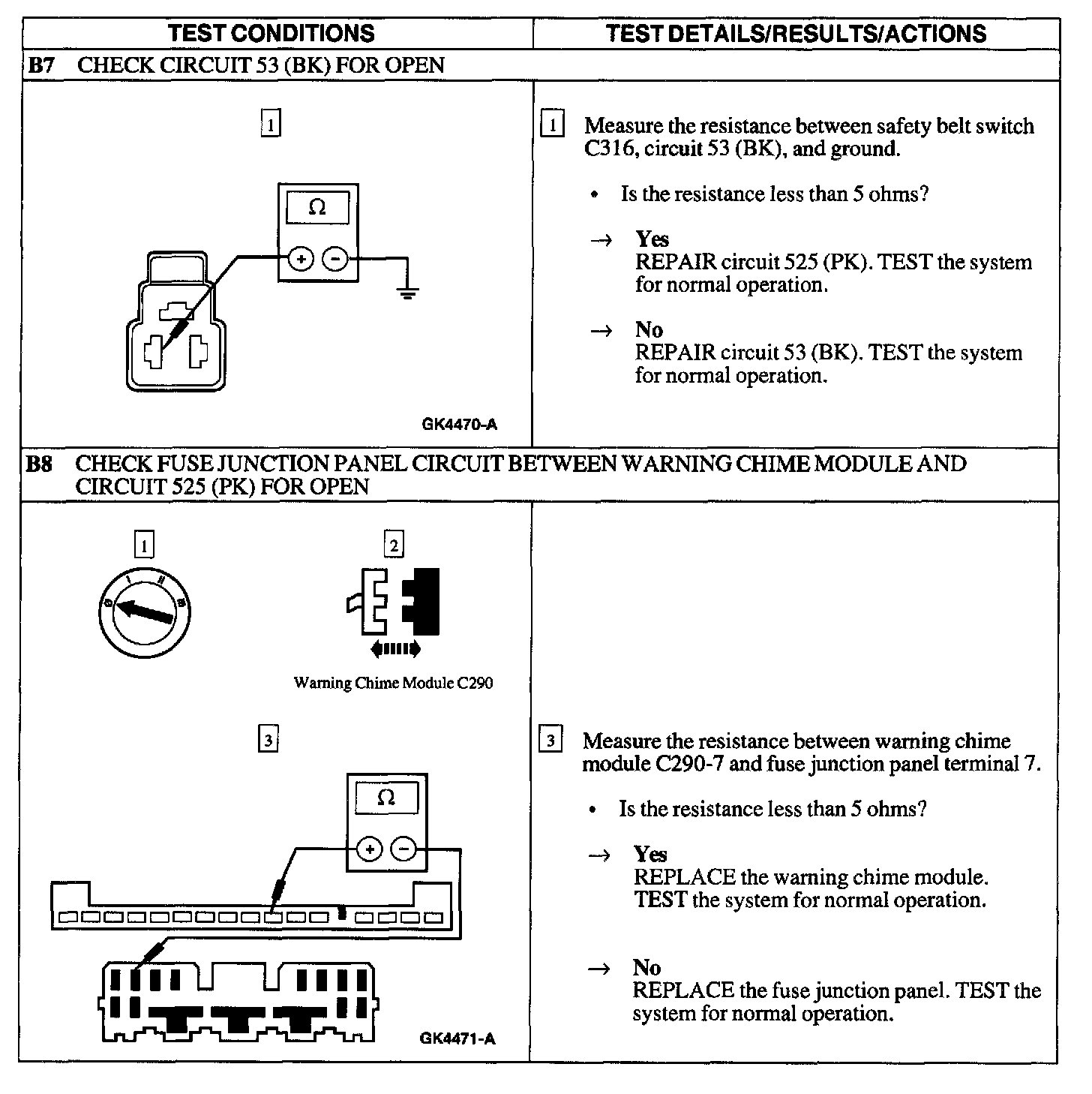

B7 - B8:
