Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> F: Insufficient A/C Cooling

F: Insufficient A/C Cooling

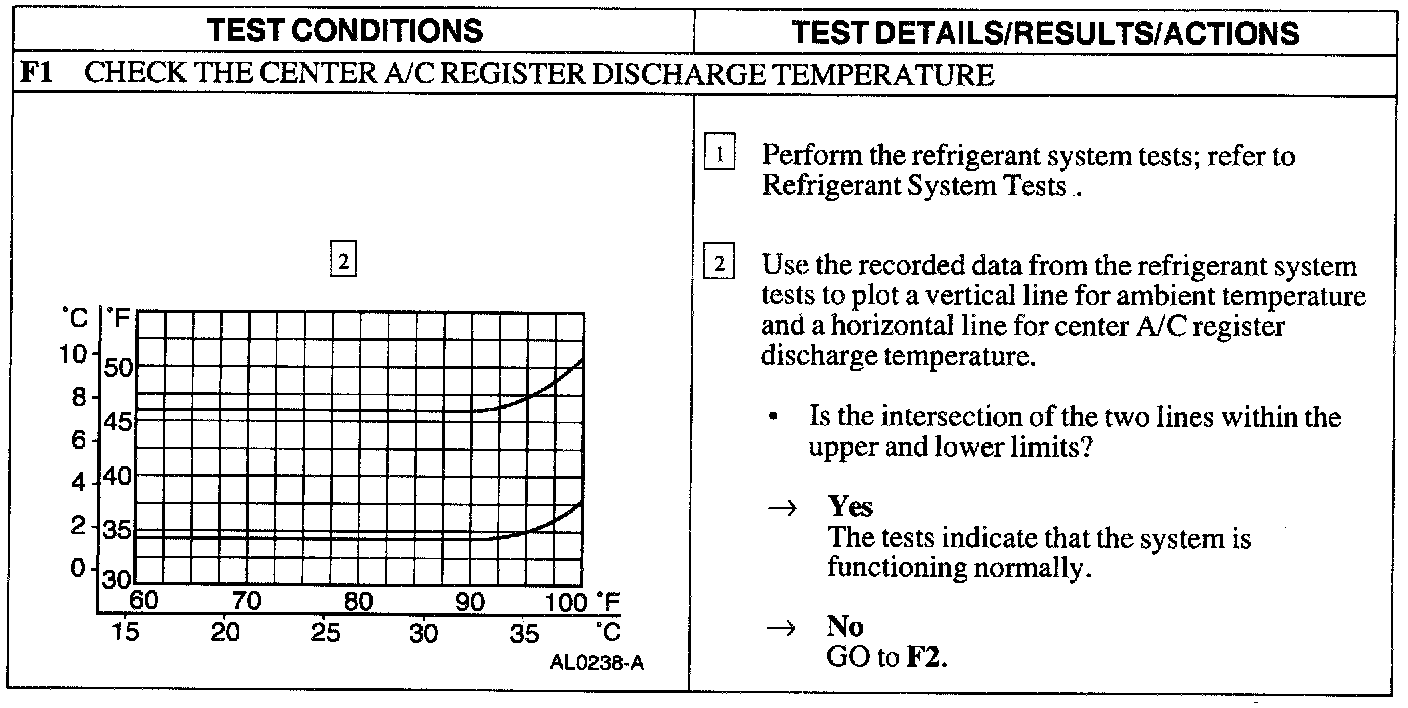

F1:

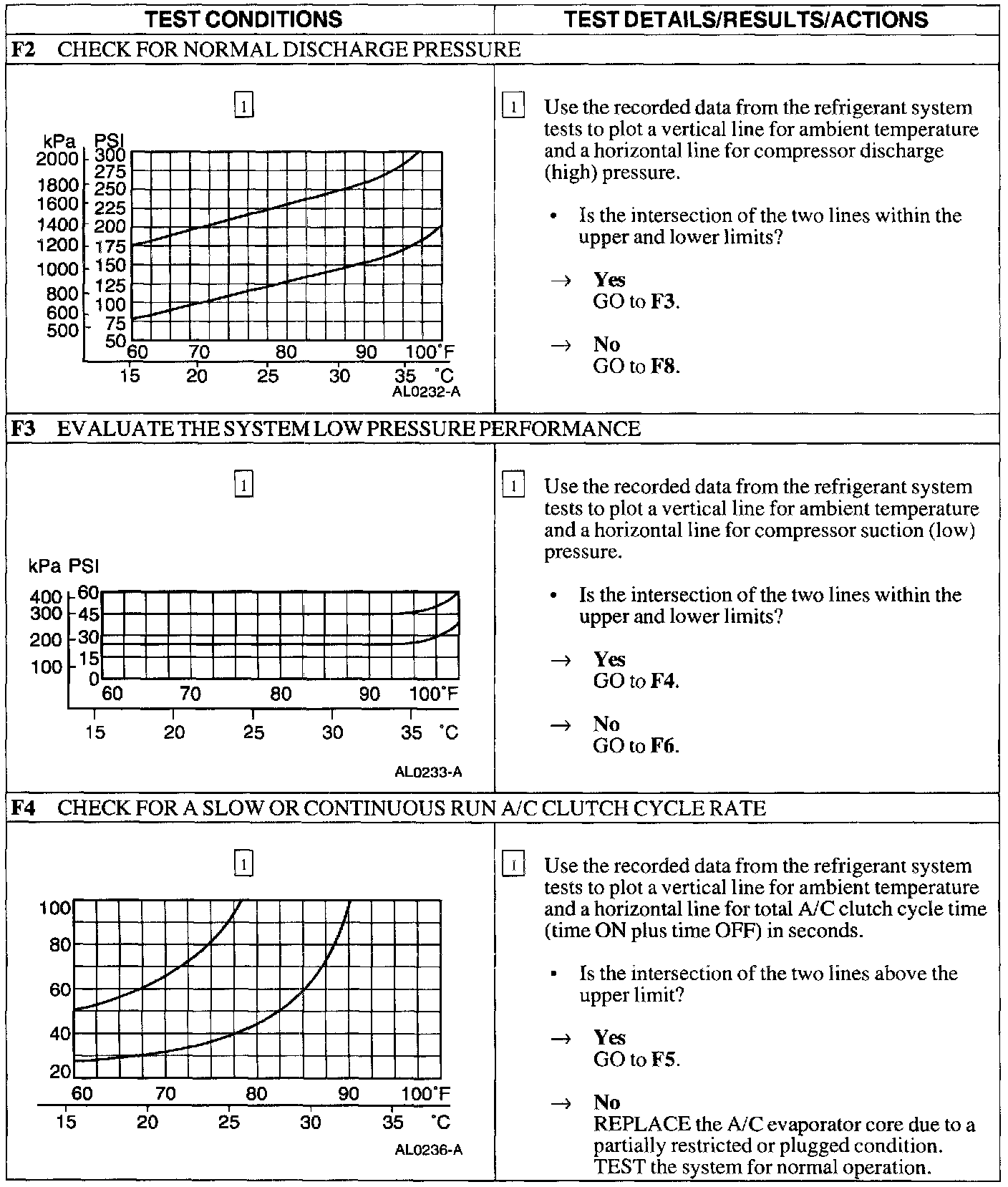

F2 - F4:

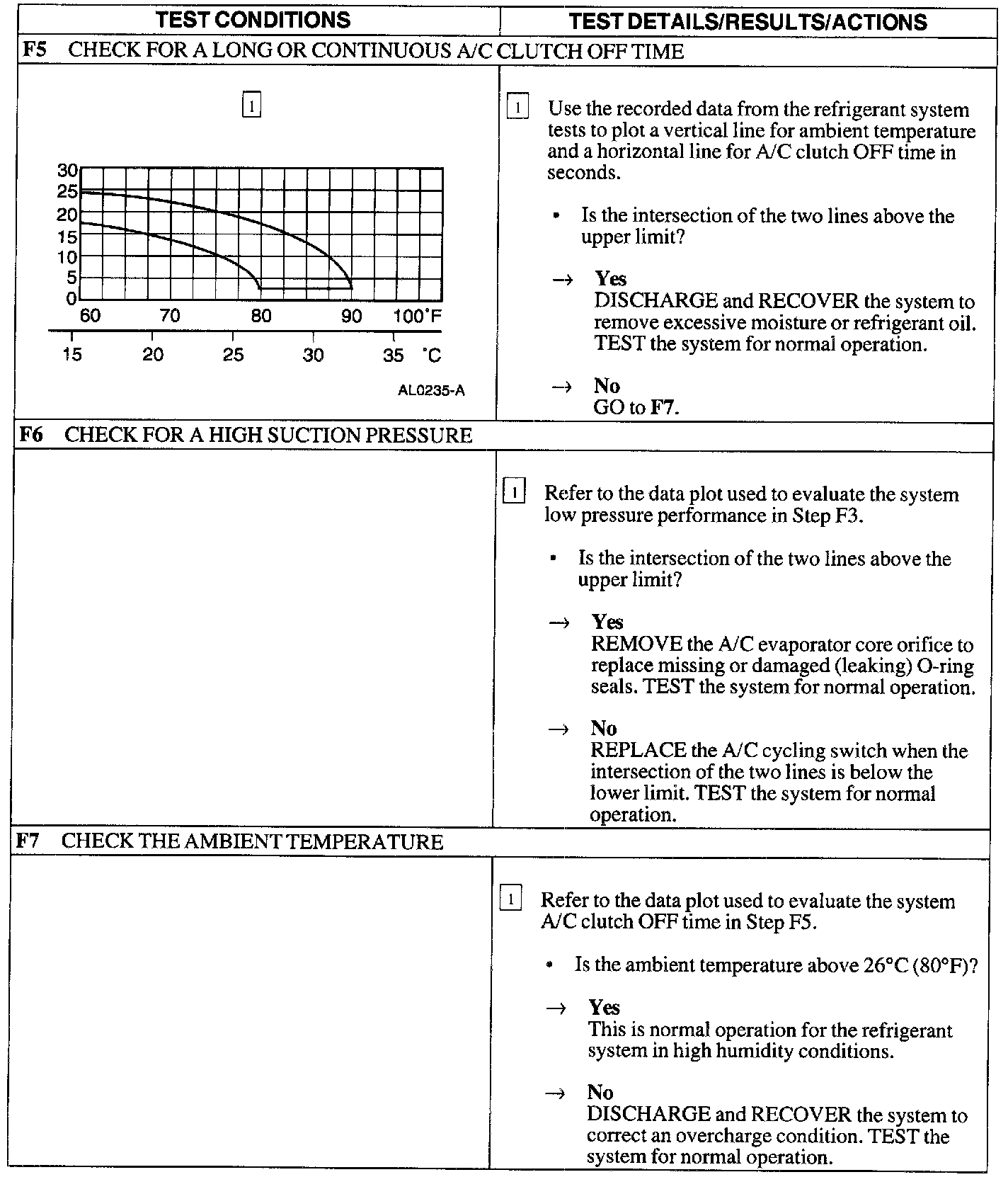

F5 - F7:

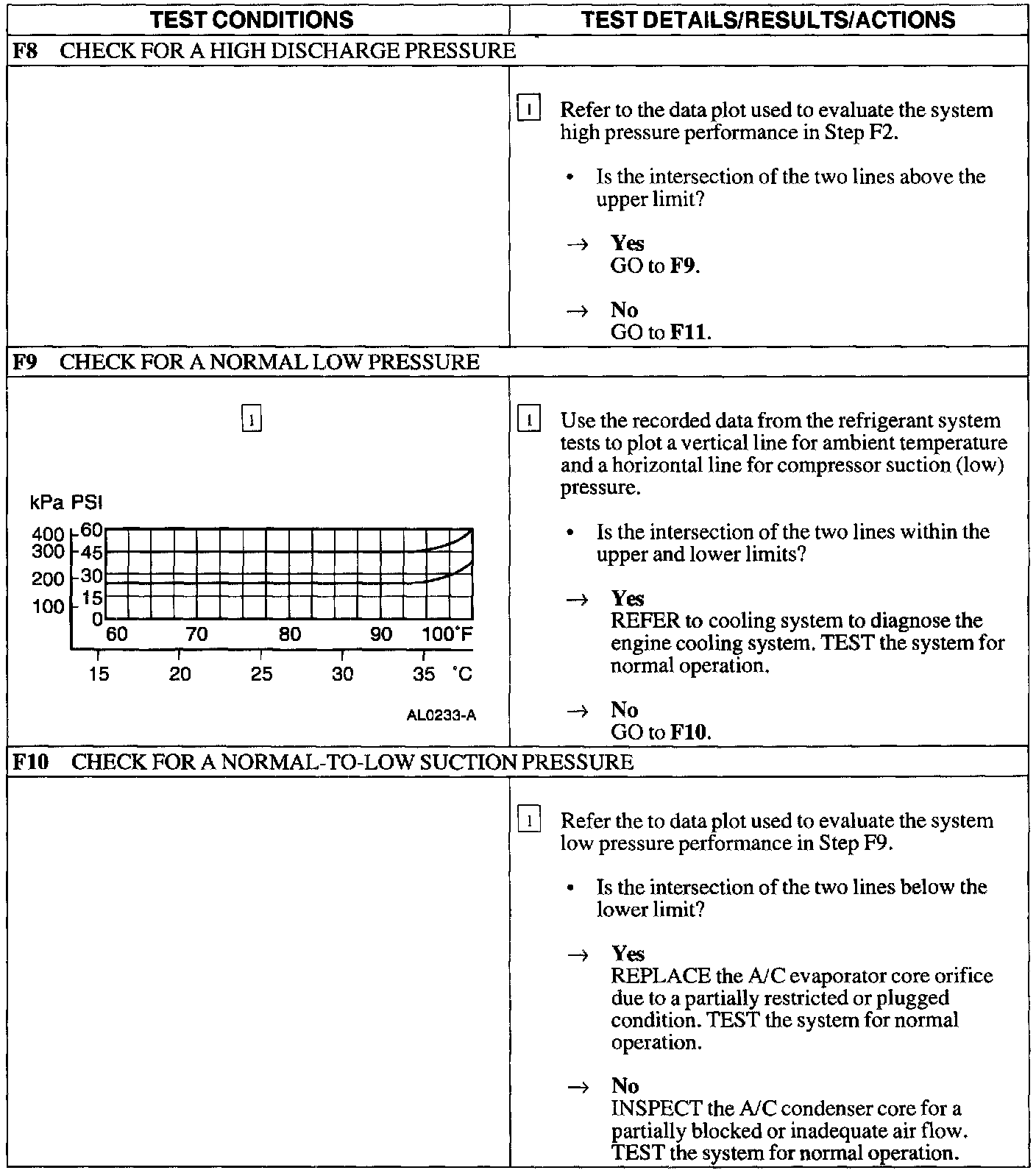

F8 - F10:

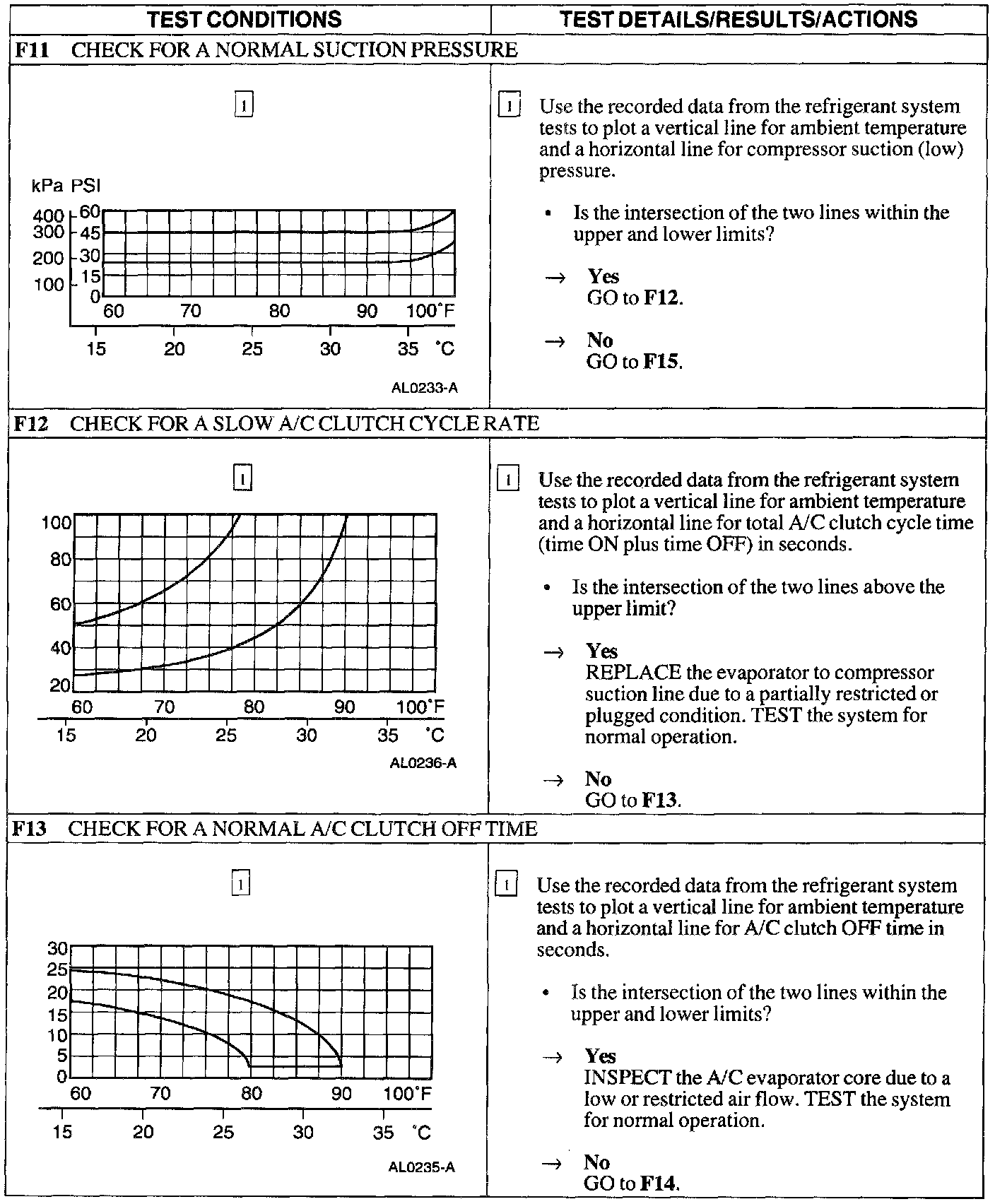

F11 - F13:

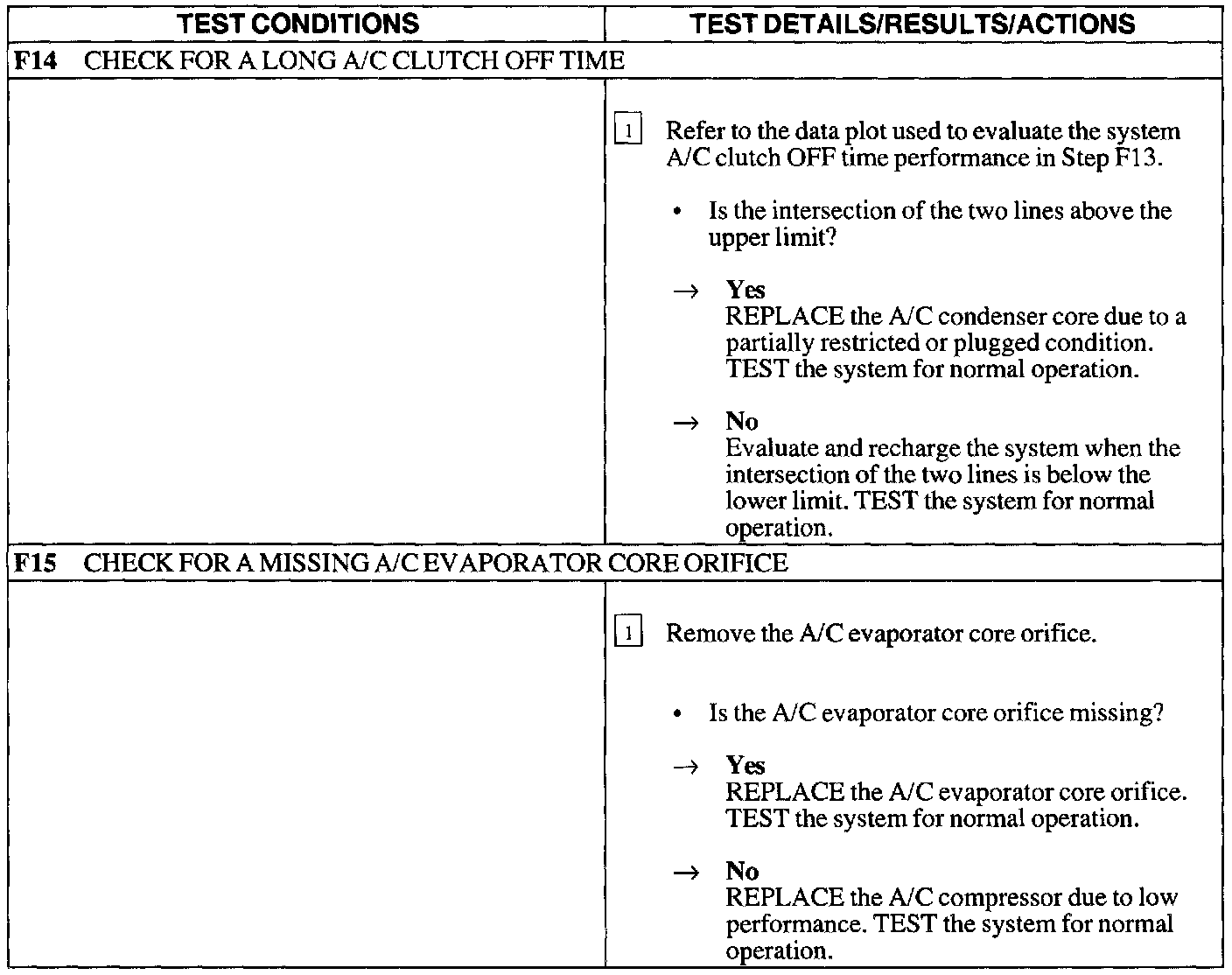

F14 - F15:
