D: The A/C Does Not Operate/Does Not Operate Properly

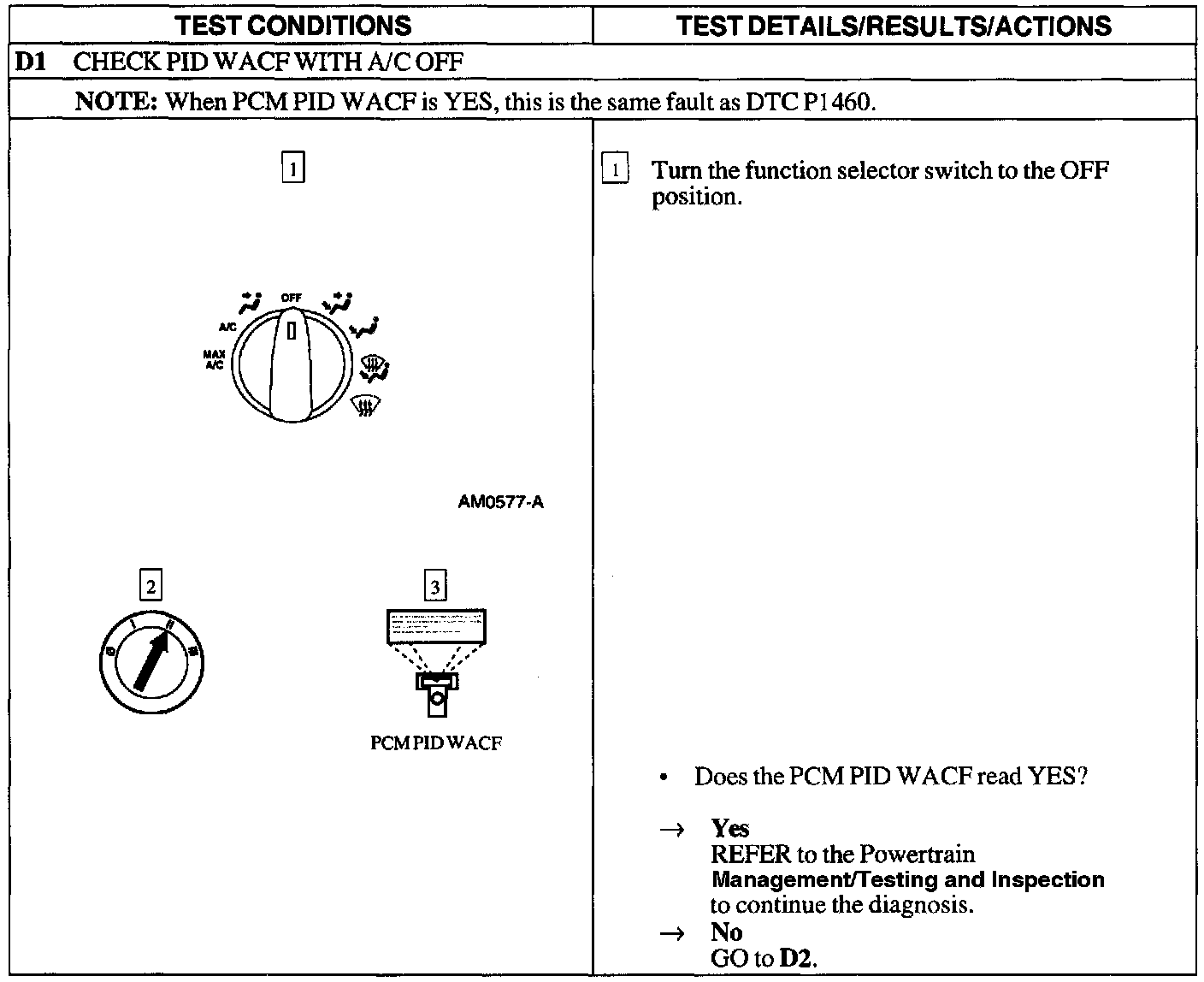

D1:

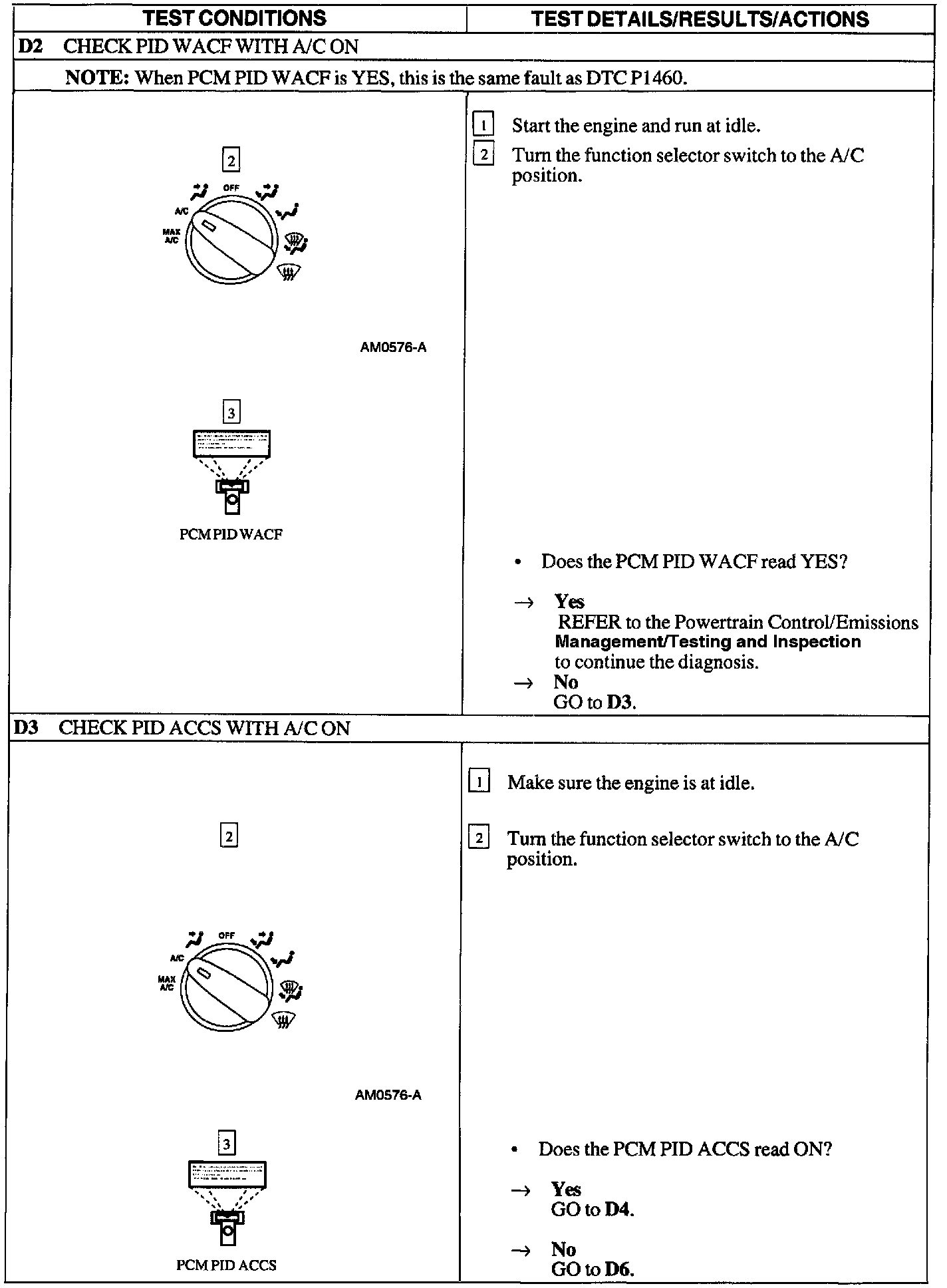

D2 - D3:

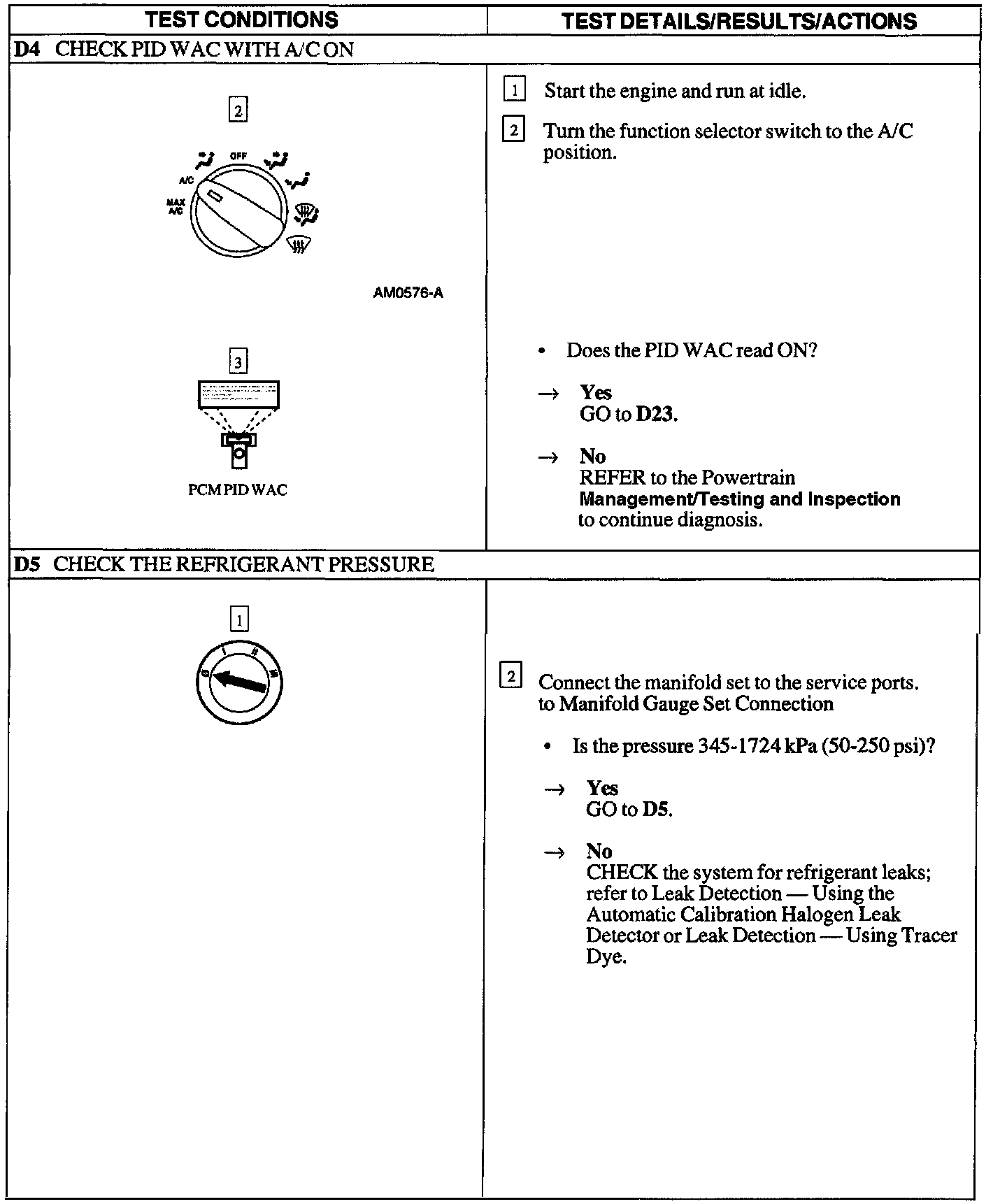

D4 - D5:

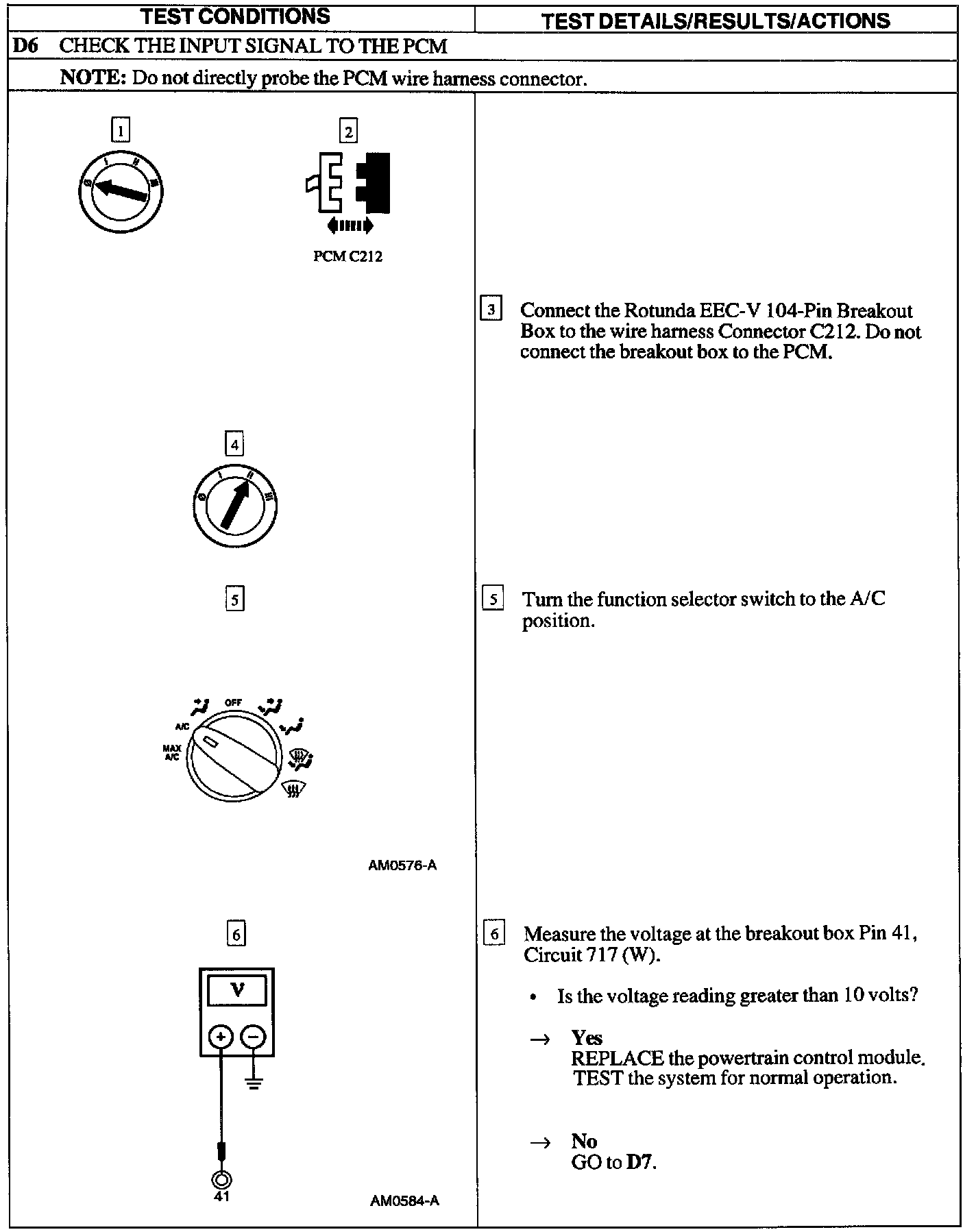

D6:

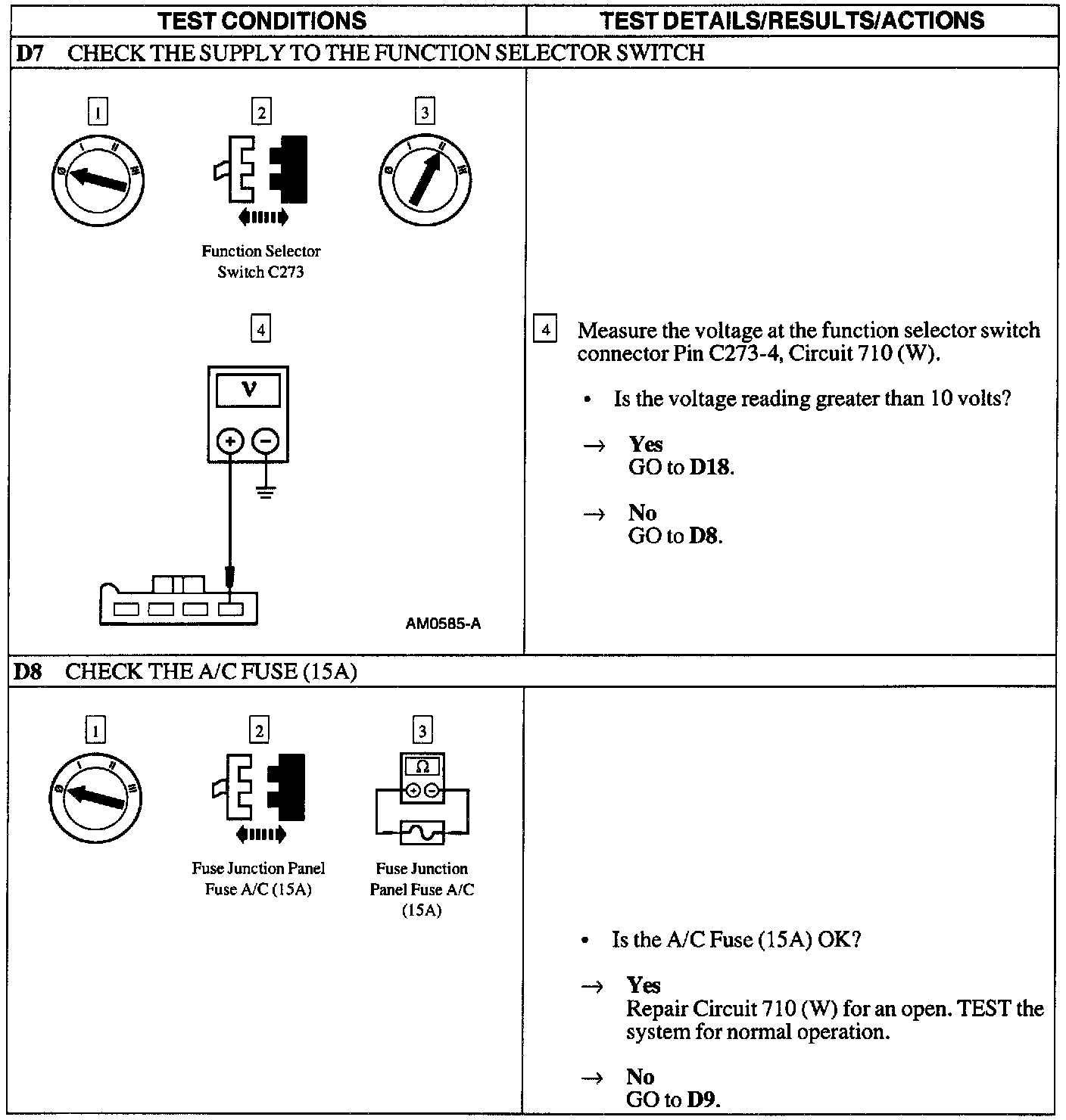

D7 - D8:

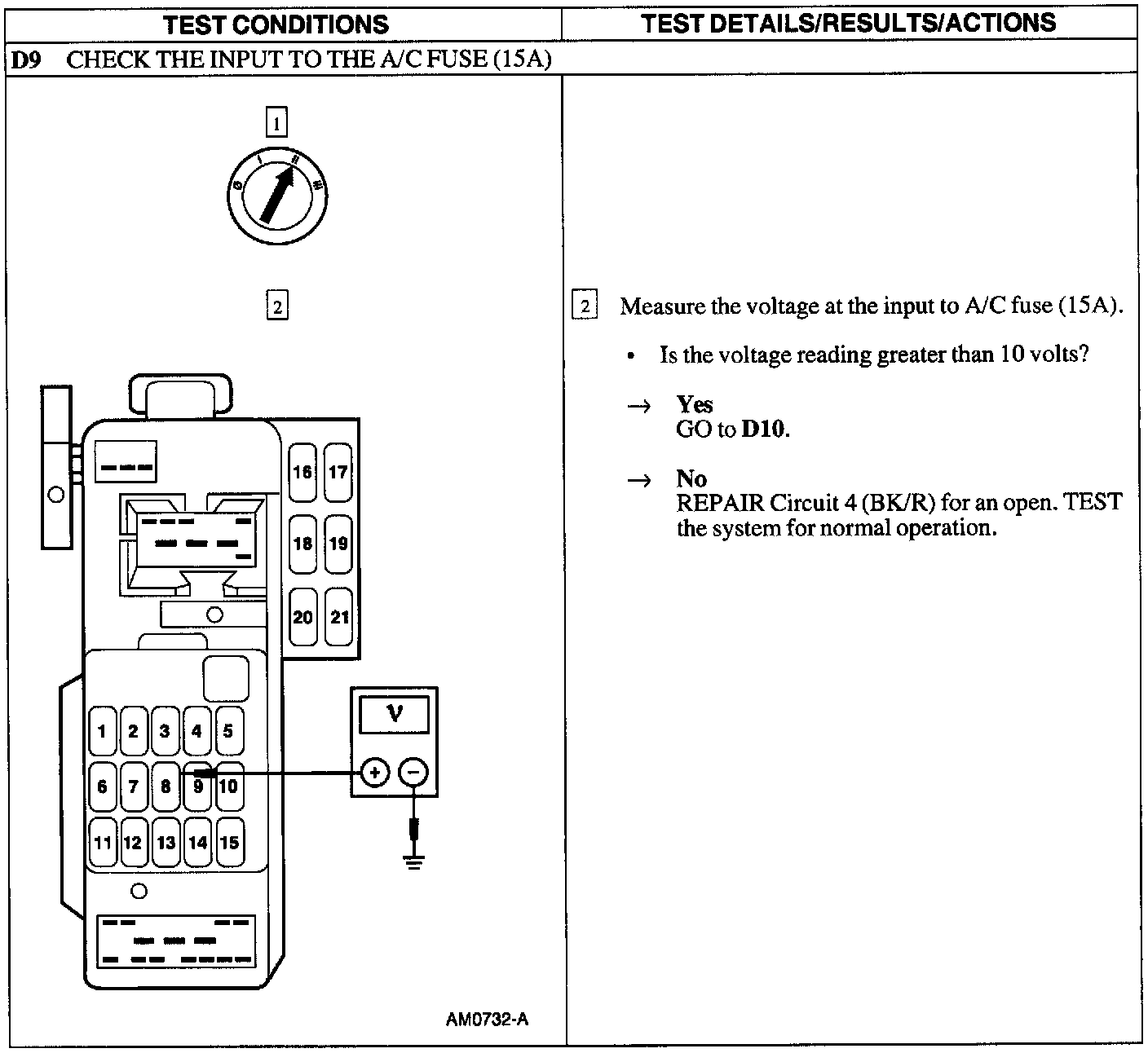

D9:

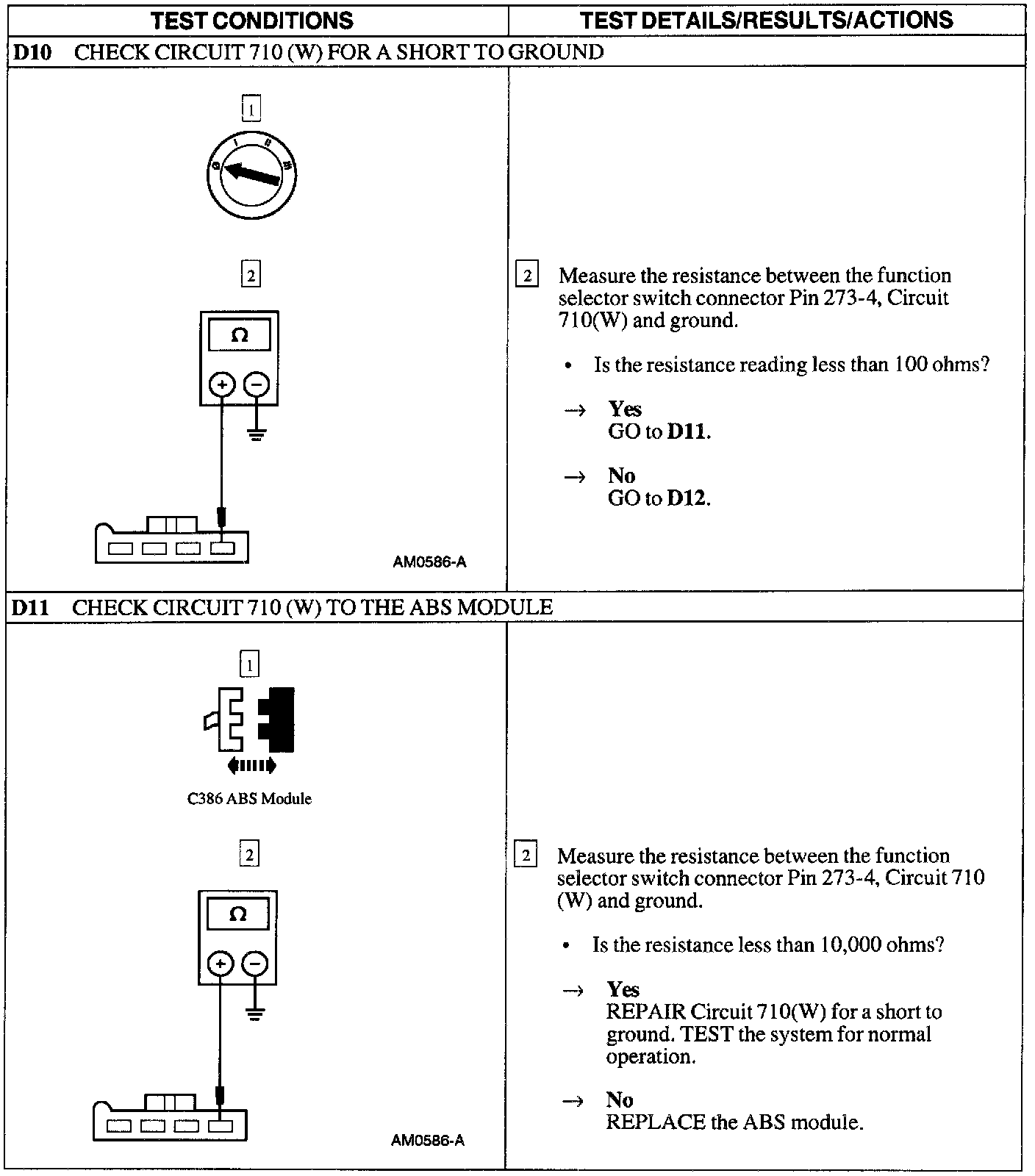

D10 - D11:

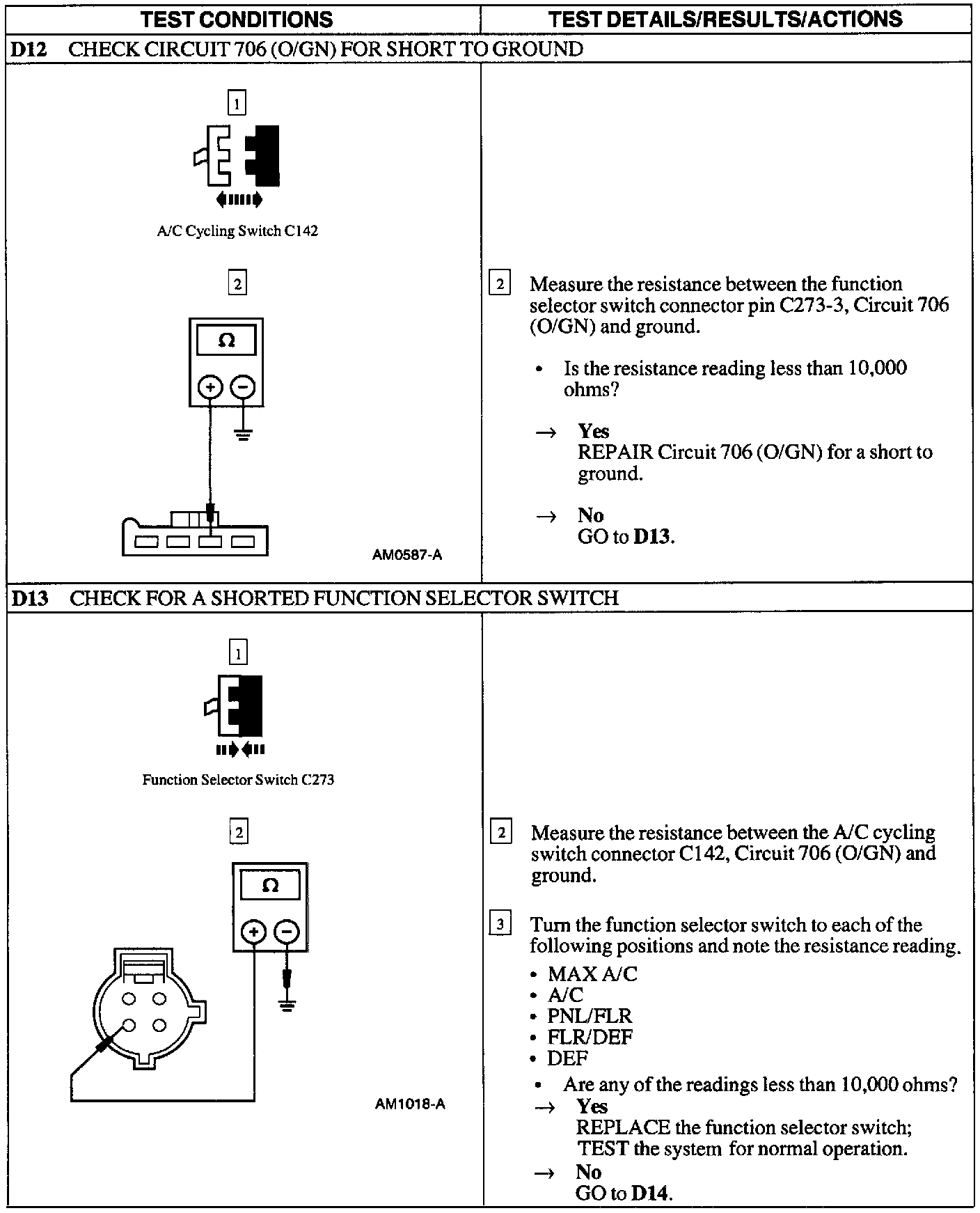

D12 - 13:

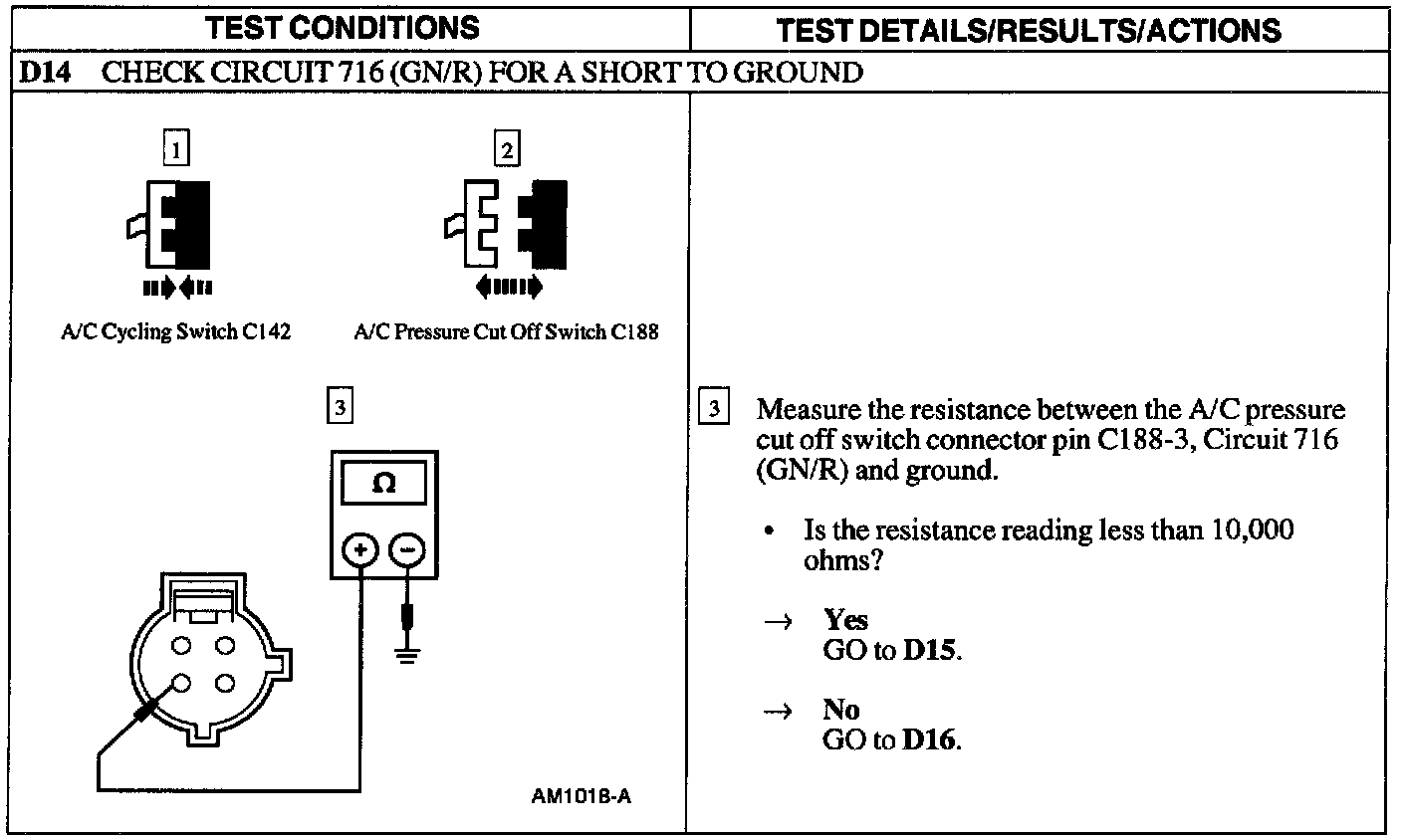

D14:

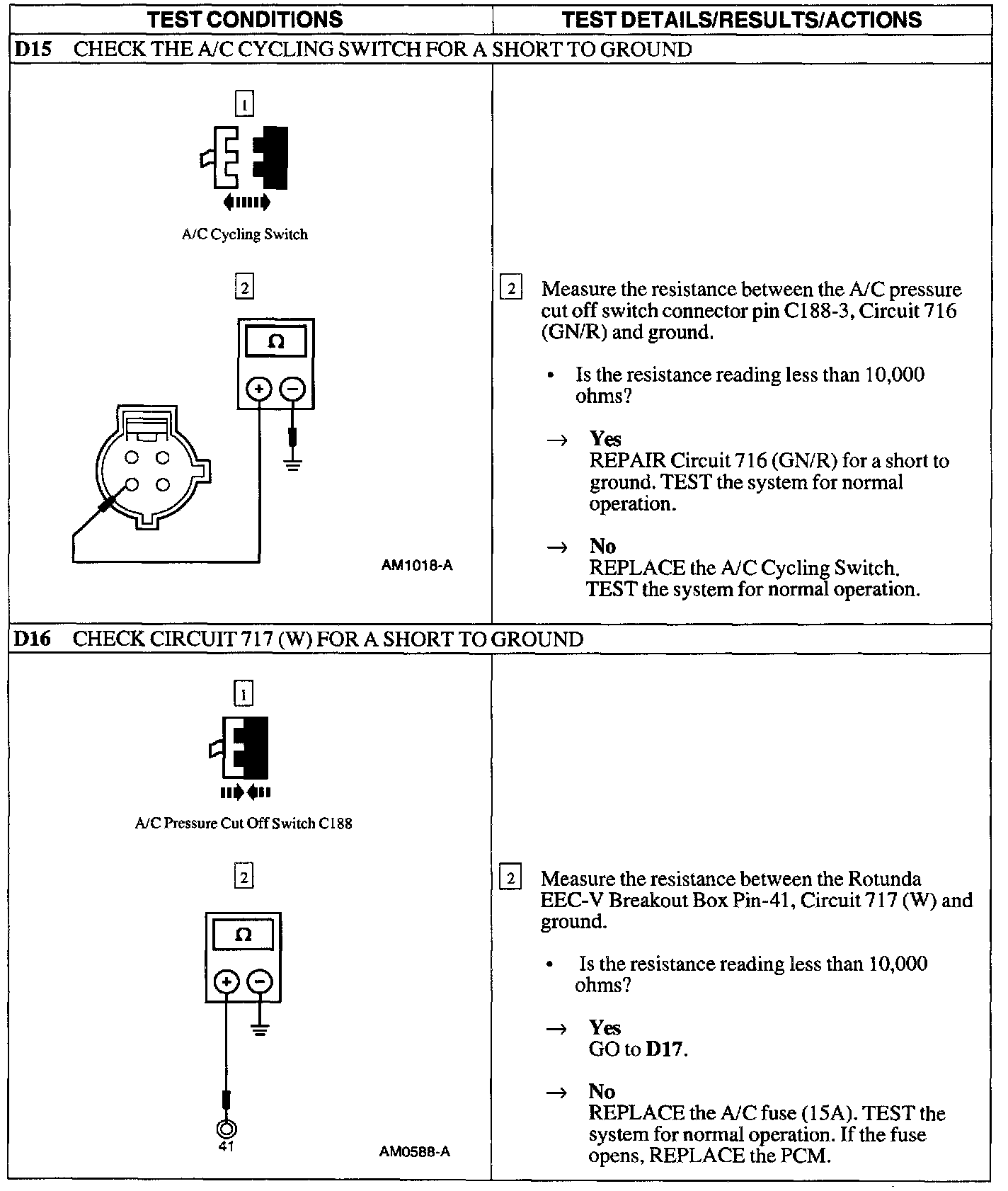

D15 - D16:






D17 - D18:

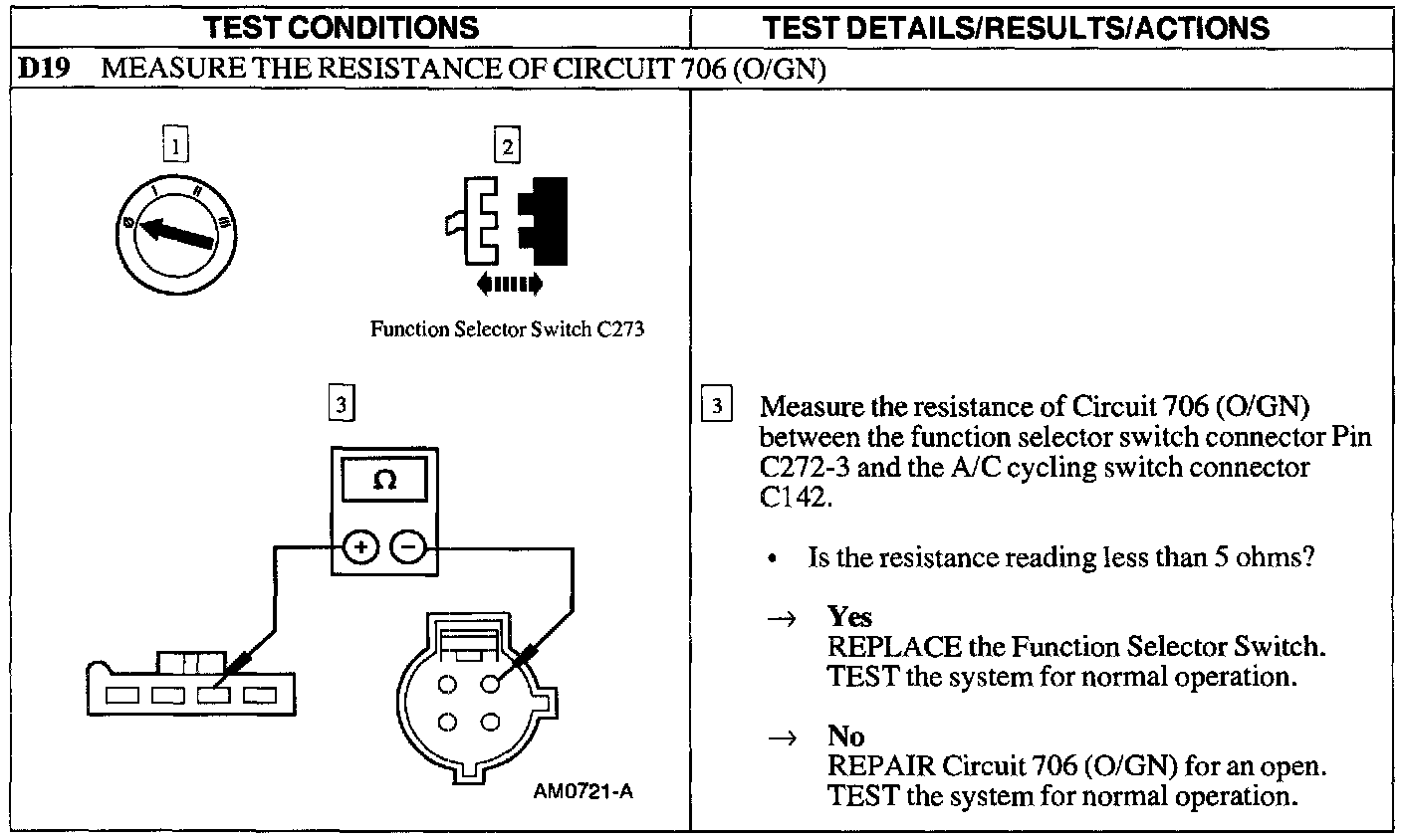

D19:

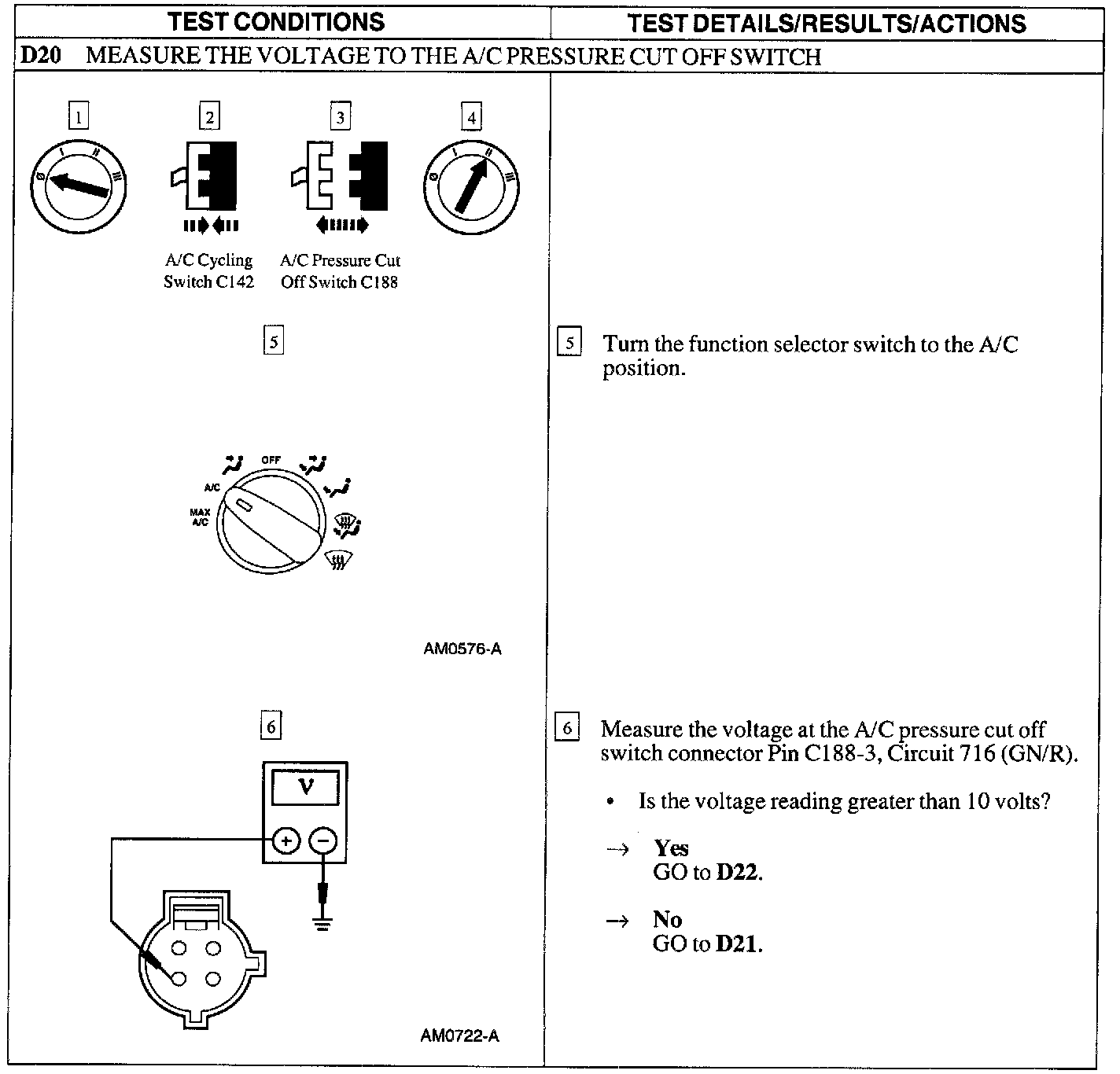

D20:

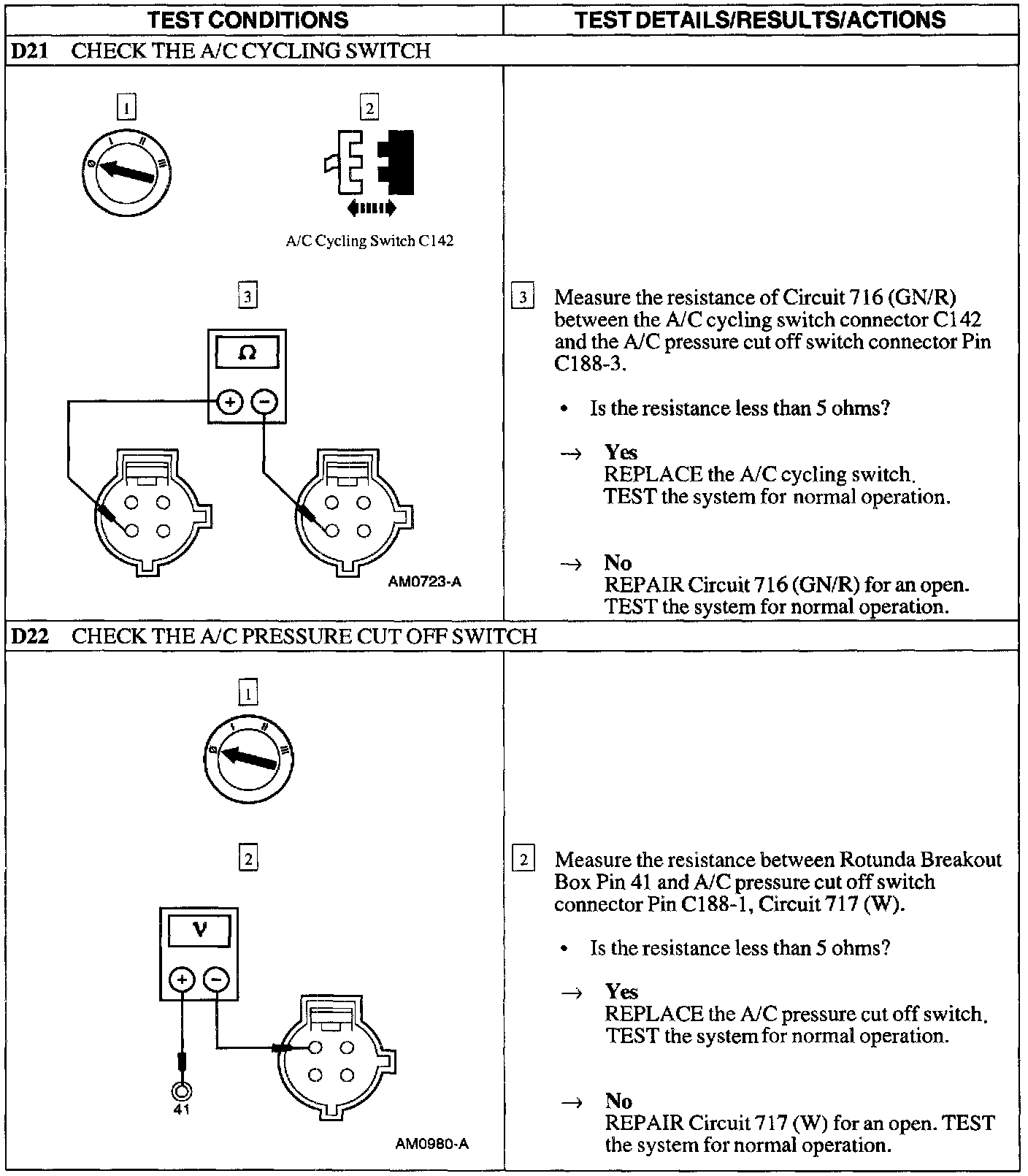

D21 - D22:






D23 - D24:

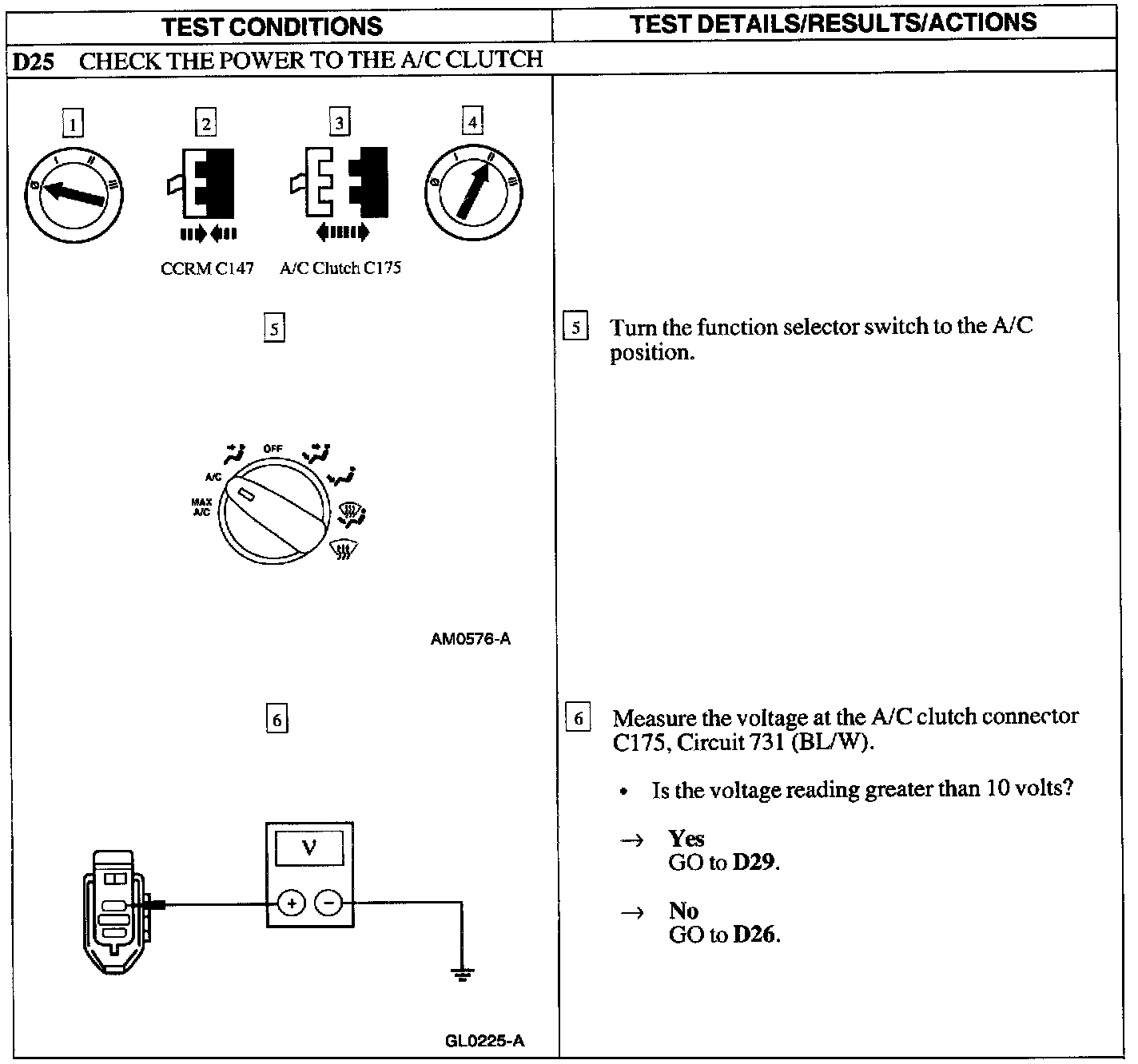

D25:

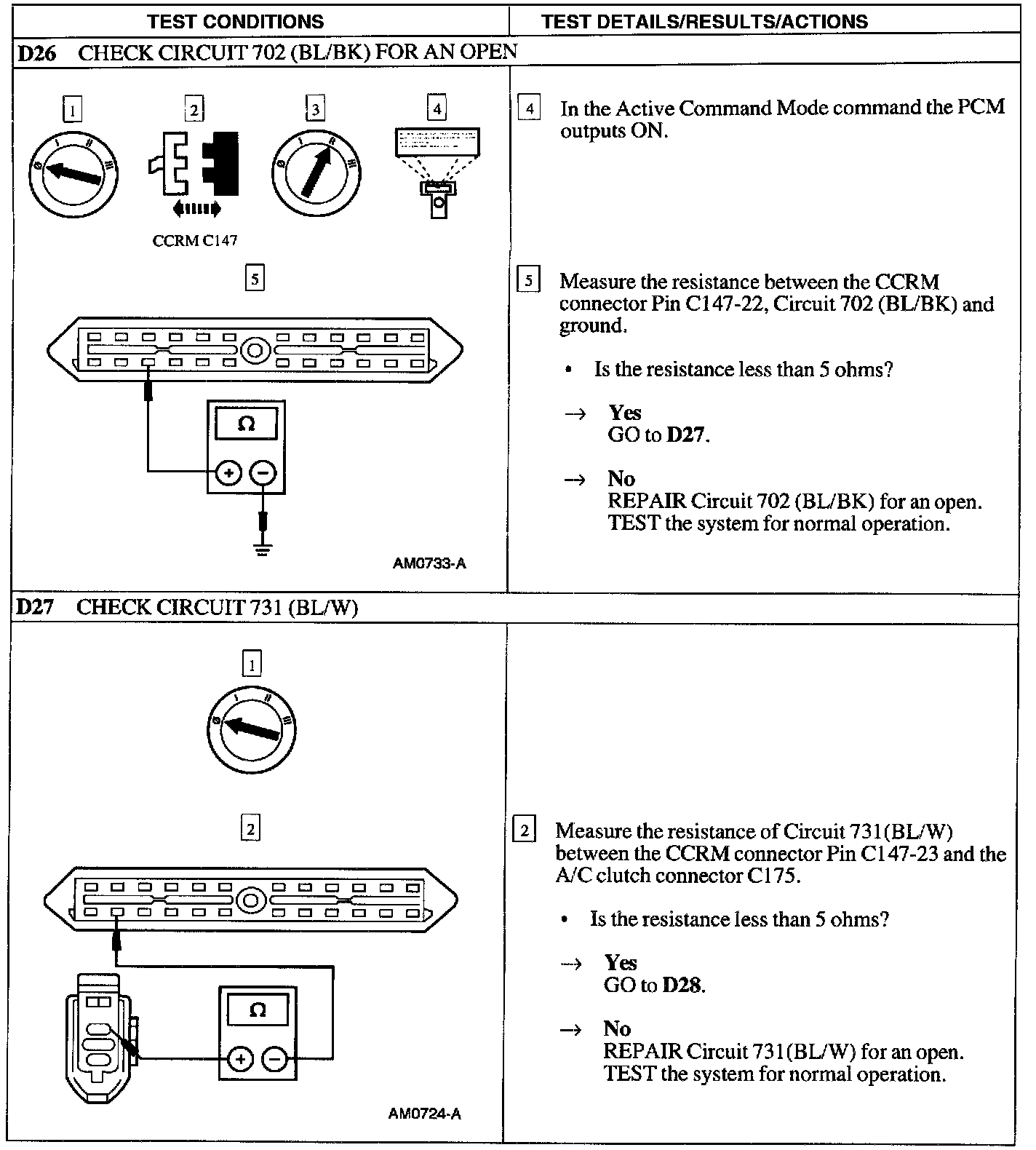

D26 - D27:






D28 - D29:
