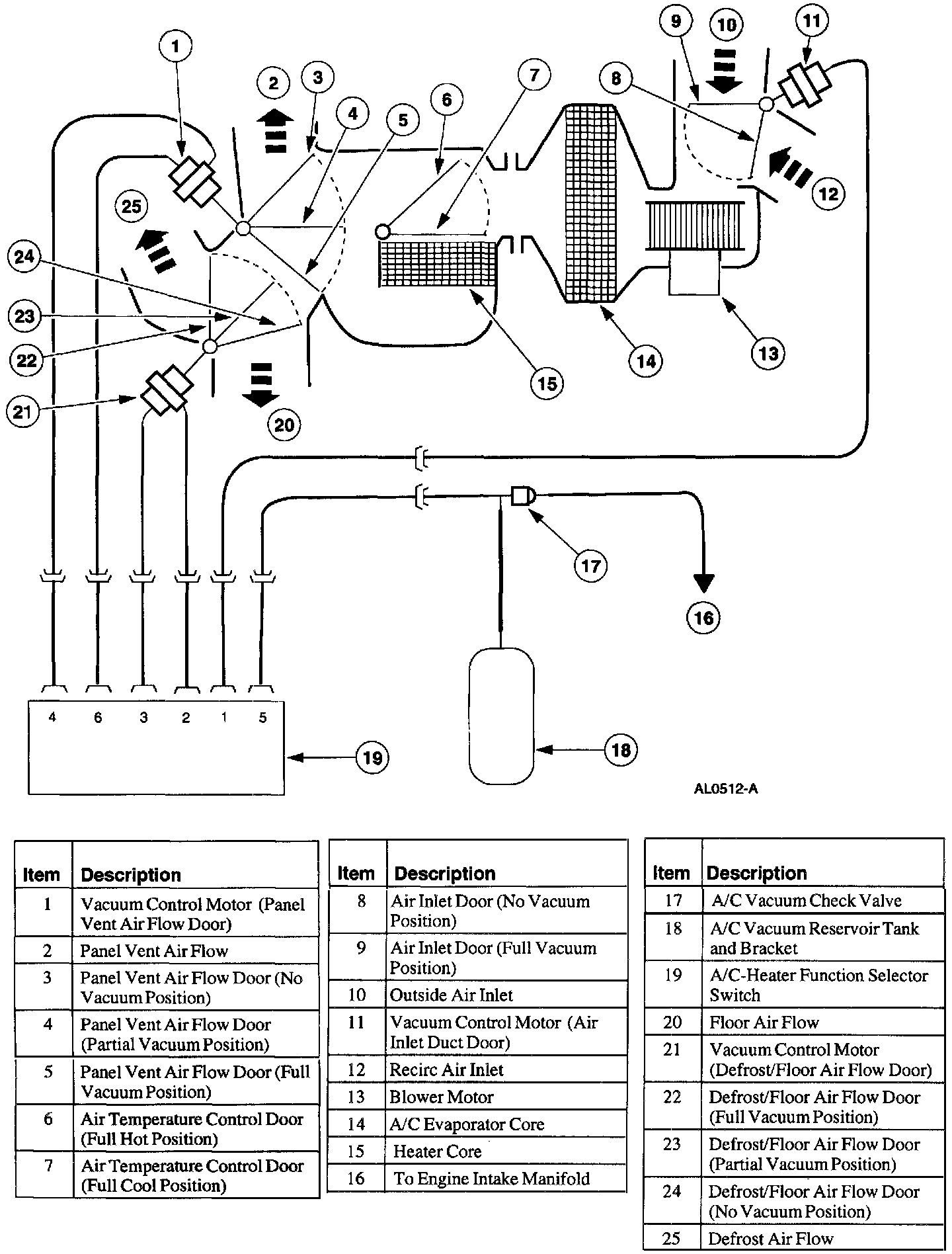

Diagnostic Vacuum Diagrams



Function Selector Switch Vacuum Connector:



Function Selector Switch Vacuum Application Chart:
