Expansion Block/Orifice Tube: Description and Operation

NOTE: The A/C evaporator core orifice should be replaced whenever an A/C compressor is replaced.

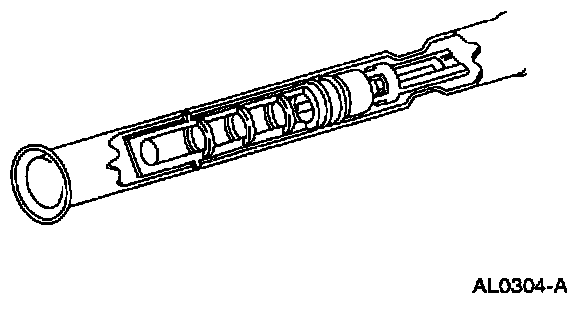

The A/C evaporator core orifice has the following characteristics:
- color-coded orange.
- an orifice diameter of 1.45 mm (0.057 inch).
- is located in the rear condenser to evaporator tube.
- filter screens located on the inlet and outlet ends of the tube body.
- The inlet filter screen acts as a strainer for the liquid refrigerant flowing through the A/C evaporator core orifice.
- O-rings on the A/C evaporator core orifice prevent the high-pressure liquid refrigerant from by-passing the A/C evaporator core orifice.
- Adjustment or repair cannot be made to the A/C evaporator core orifice assembly. It must be replaced as a unit.
