Condenser HVAC: Service and Repair
REMOVALCAUTION: To prevent refrigerant system contamination, whenever the A/C condenser core is replaced, also replace the suction accumulator/drier.
NOTE: If an A/C condenser core leak is suspected, the A/C condenser core must be leak tested before it is removed from the vehicle.
1. Recover the refrigerant. Refrigerant Recovery
2. Remove the bolt.
3. Disconnect the A/C manifold and tube suction side spring lock coupling.
CAUTION: Plug all ports to prevent contamination from dirt or moisture.

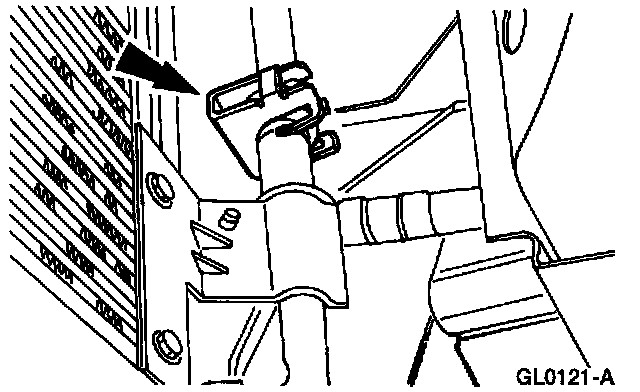

4. Disconnect the front condenser to evaporator line spring lock coupling.
CAUTION: Plug all ports to prevent contamination from dirt or moisture.

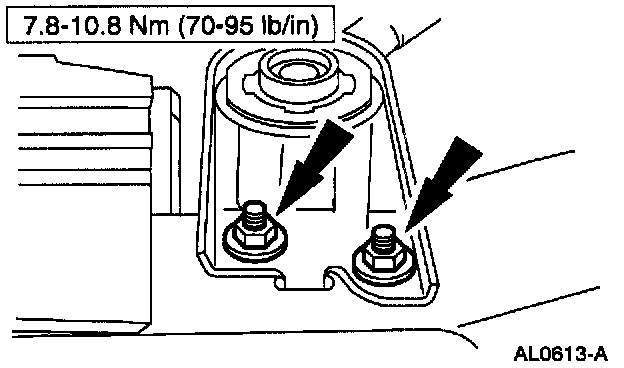

5. Remove the nuts and the LH radiator upper support bracket.

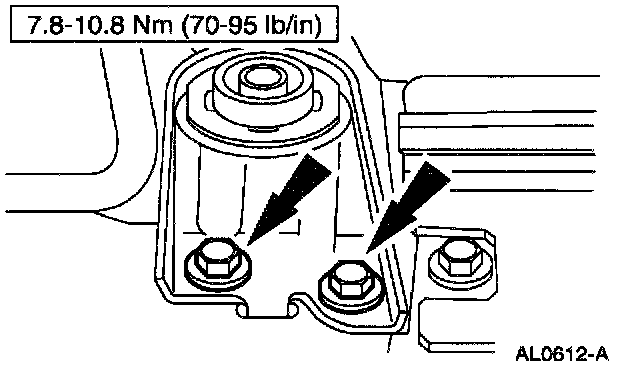

6. Remove the bolts and the RH radiator upper support bracket.

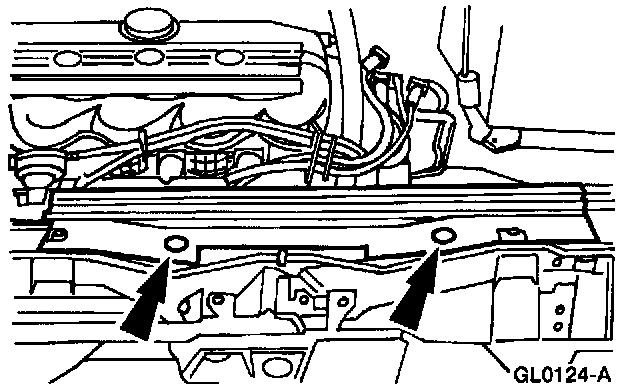

7. Remove the pushpins and the upper radiator air deflector.

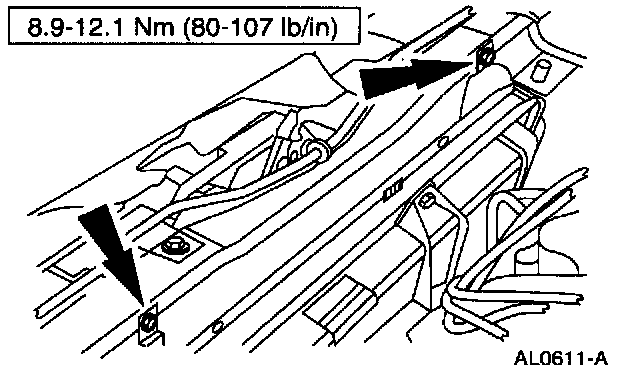

8. Remove the bolts and the A/C condenser core mounting brackets.

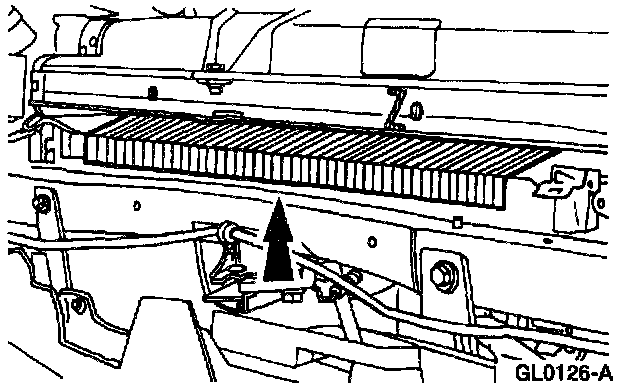

9. Remove the A/C condenser core.
INSTALLATION
1. Follow the removal procedure in reverse order.
- Service the replacement A/C condenser core with the correct amount of PAG Compressor Oil Motorcraft YN-12b F2AZ-19577-AC or equivalent meeting Ford specification WSH-M1C231-B.
