Compressor Clutch: Service and Repair

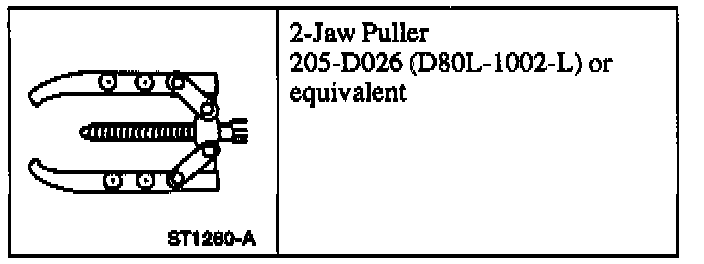

2-Jaw Puller:

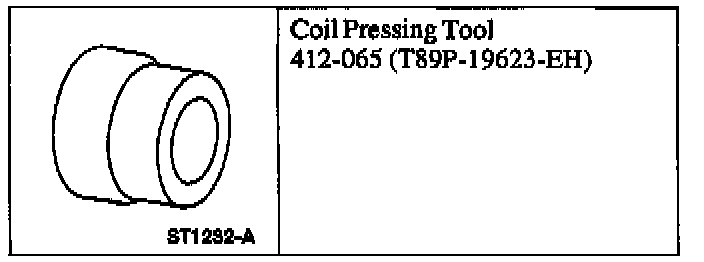

Coil Pressing Tool:

Compressor Clutch Holding Tool:

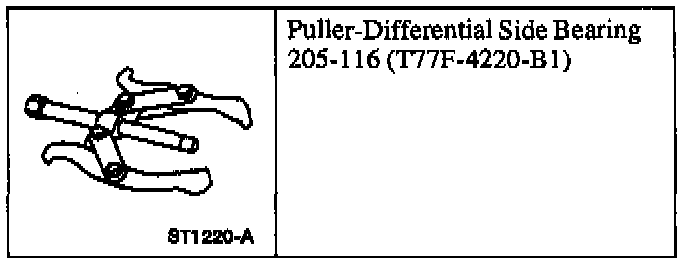

Puller-Differential Side Bearing:

Field Coil Replacer:

Special Tools


REMOVAL
1. Remove the A/C compressor.







2. Remove the bolt.
1 Hold the A/C clutch hub with the Compressor Clutch Holding Tool.
2 Remove the bolt.







3. Remove the A/C clutch and the A/C clutch hub spacer.

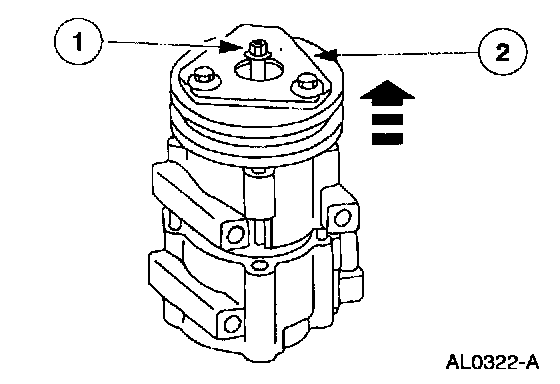

1 Thread an 8 x 1.25 mm bolt into the A/C clutch to force it from the compressor shaft.
2 Lift the A/C clutch and the A/C clutch hub spacer from the compressor shaft.

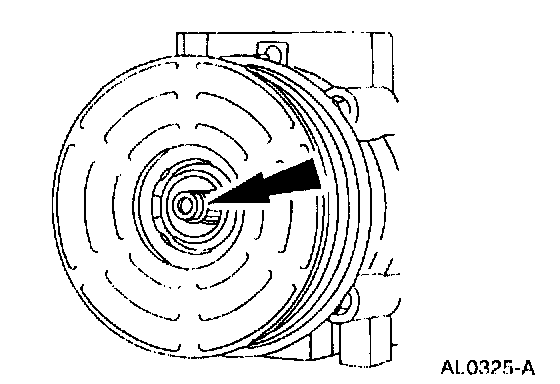

4. Remove the pulley snap ring.







5. Remove the A/C clutch pulley.







6. Remove the A/C clutch field coil.
1 Note the location of the A/C clutch field coil electrical connector.
2 Install the Shaft Protector for Coil Removal on the nose opening of the A/C compressor.

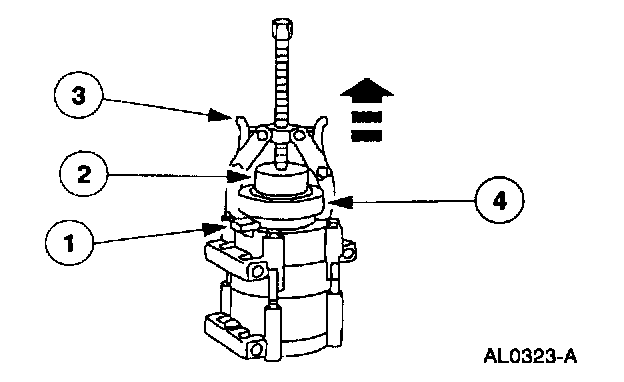

3 Install the Differential Side Bearing Puller.
4 Remove the A/C clutch field coil.

CAUTION: Do not use air tools. The A/C clutch field coil can be easily damaged.


INSTALLATION
1. Clean the A/C clutch field coil and pulley mounting surfaces.







2. Install the A/C clutch field coil.
1 Place the A/C clutch field coil on the A/C compressor with the A/C clutch field coil electrical connector properly positioned.
2 Place the Field Coil Replacer on the A/C clutch field coil.
3 Place the Coil Pressing Tool on the Field Coil Replacer.

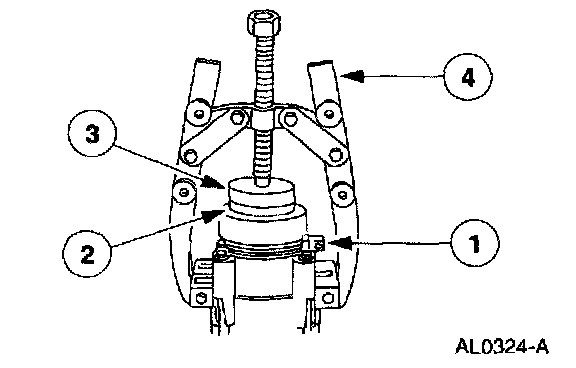

4 Use the 2-Jaw Puller to install the A/C clutch field coil until bottomed completely against the A/C compressor.

CAUTION: Do not use air tools. The A/C clutch field coil can be easily damaged.







3. Install the A/C clutch pulley.

NOTE: The A/C clutch pulley is a tight fit on the A/C compressor head; it must be properly aligned during installation.







4. Install the pulley snap ring with the bevel side out.







5. Place one nominal thickness A/C clutch hub spacer inside the clutch hub split opening.







6. Install the A/C clutch.







7. Install the bolt.

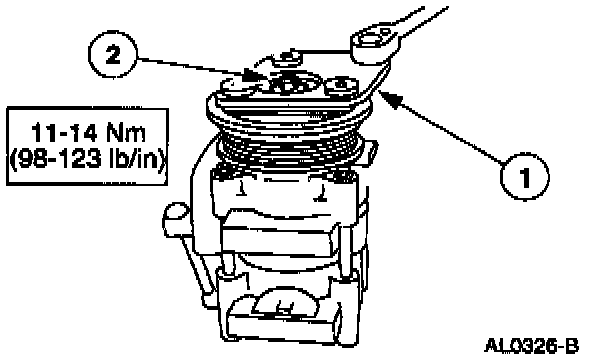

1 Hold the A/C clutch hub with the Compressor Clutch Holding Tool.
2 Tighten the bolt.







8. Measure and adjust the clutch air gap by removing or adding A/C clutch hub spacers.
9. Install the A/C compressor.
