Blower Motor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

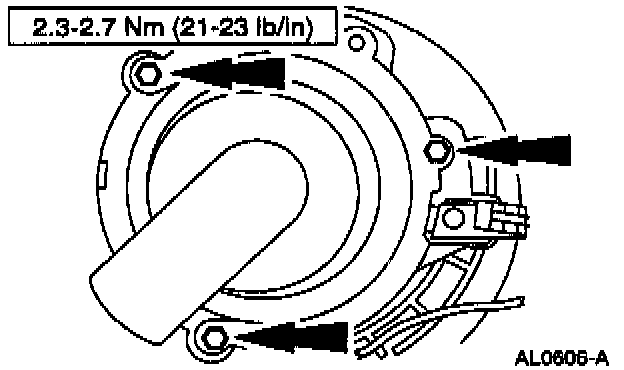

2. Remove the screws and the blower motor.







3. Disconnect the A/C blower motor electrical connector.







4. Remove the blower motor wheel retainer and the A/C blower wheel.

INSTALLATION







1. Follow the removal procedure in reverse order.
