Front Crankshaft Seal: Service and Repair

REMOVAL

Special Tools:

1. Remove the timing belt.





2. Remove the crankshaft sprocket.

NOTE: Use care to avoid damaging the crankshaft surface.

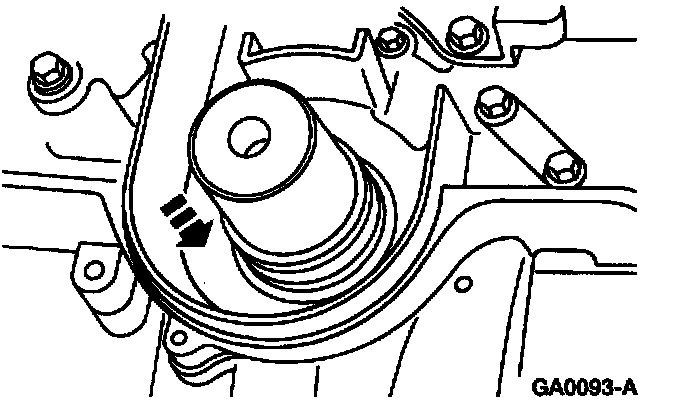

3. Use the Seal Remover to remove the crankshaft front seal from the oil pump.

INSTALLATION





1. Use the Oil Pump Seal Replacer to install a new crankshaft front seal.





2. Install the crankshaft sprocket.
3. Install the timing belt.
