Squareness
Squareness
1.

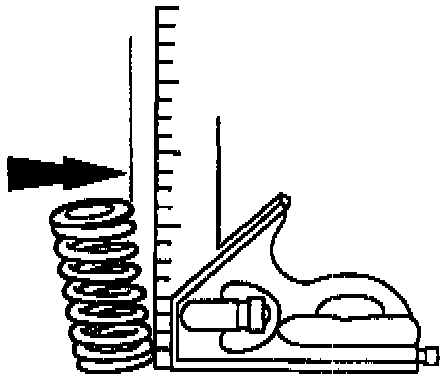

Measure the out-of-square on each
valve spring
.
-
Turn the
valve spring
and observe the space between the top of the valve spring and the square. Replace the valve spring if out of specification.
