Valve Cover: Service and Repair

REMOVAL

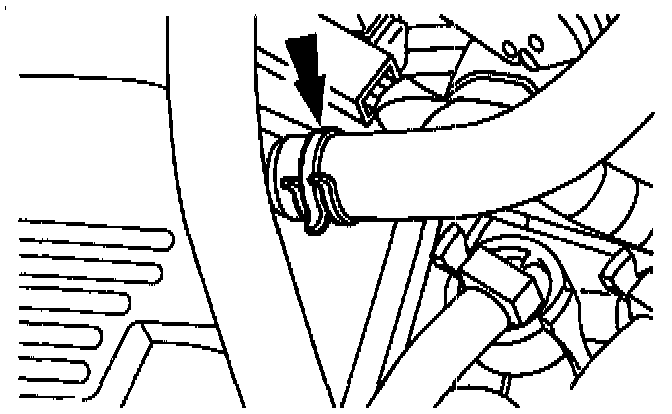

1. Loosen the clamp and disconnect the engine air cleaner to valve cover hose from the valve cover.

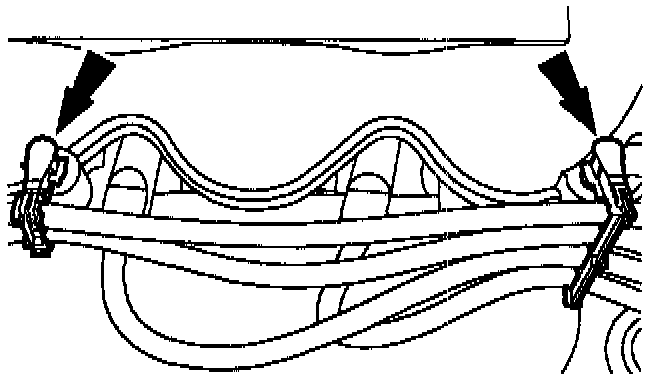

2. Remove the two ignition wire separator from the valve cover. Position the spark plug wires aside.

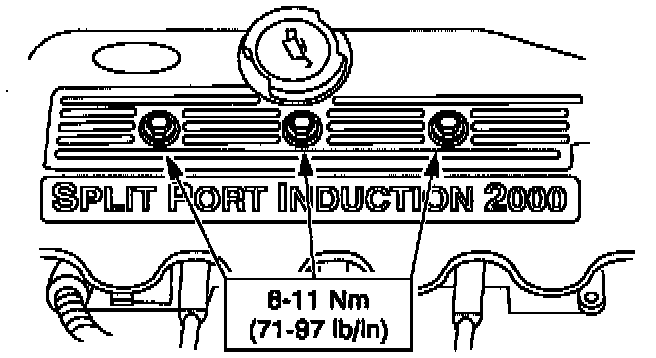

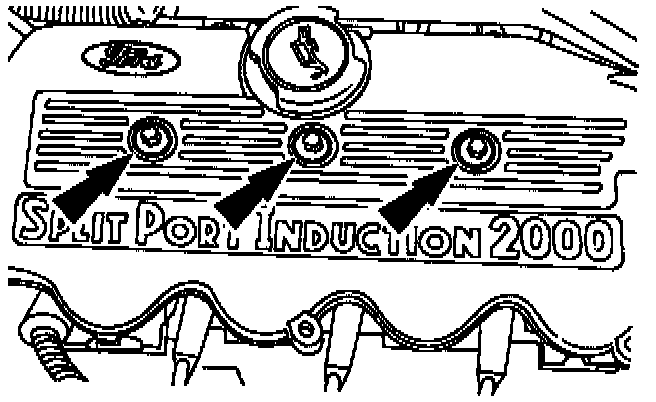

3. Remove the three valve cover bolts and remove the valve cover and gasket.

INSTALLATION





1. To install, reverse the Removal Procedure in reverse order.

CAUTION: Do not use abrasive grinding discs to remove gasket material; only use manual scrapers. Do not scratch or gouge aluminum sealing surfaces or oil leaks may occur.

NOTE: Do not use any sealer with a silicone-type gasket.
