Pin Bore Diameter

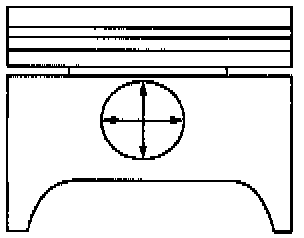

1. Measure the piston pin bore diameter in two directions on each side. Verify the diameter is within specification.

NOTE: Piston and piston pins are a matched set and cannot be interchanged.
