Connecting Rod Journal Diameter

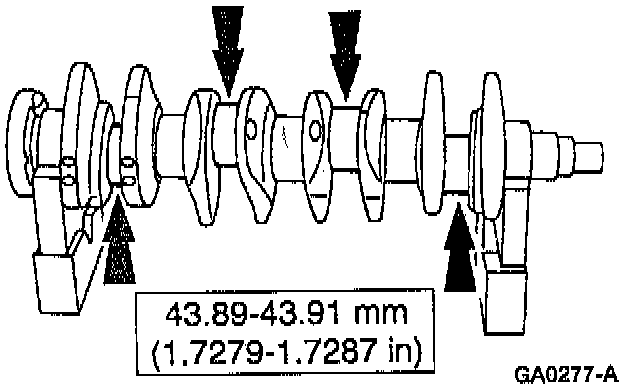

1. Measure the crankshaft connecting rod journal diameters in at least two directions perpendicular to one another. Verify the journal is within specification.
