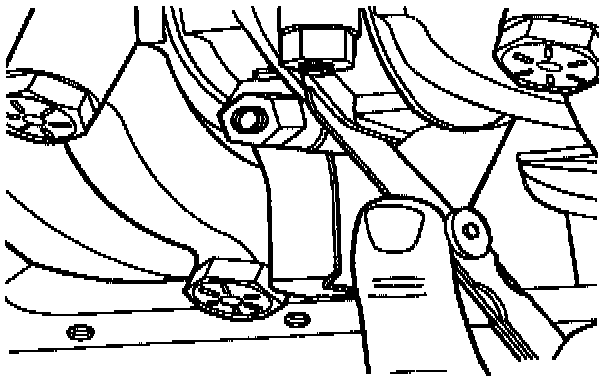

Connecting Rod Side Clearance







Side Clearance (Assembled to Crank)
Standard 0.092-0.268 mm (0.004-0.011 inch)
Service Limit 0.356 mm (0.014 inch)
