Journal Oil Clearance

NOTE: The camshaft journals must meet specification before checking camshaft journal clearance.

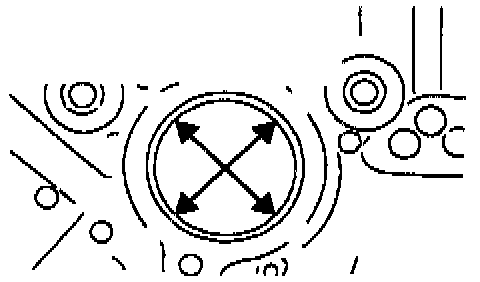

Measure the camshaft bearings in two directions.
- Subtract the camshaft journal diameter from the camshaft bearing diameter.
