Manual Transmission/Transaxle
>>
System Diagram
>>
External Controls
External Controls

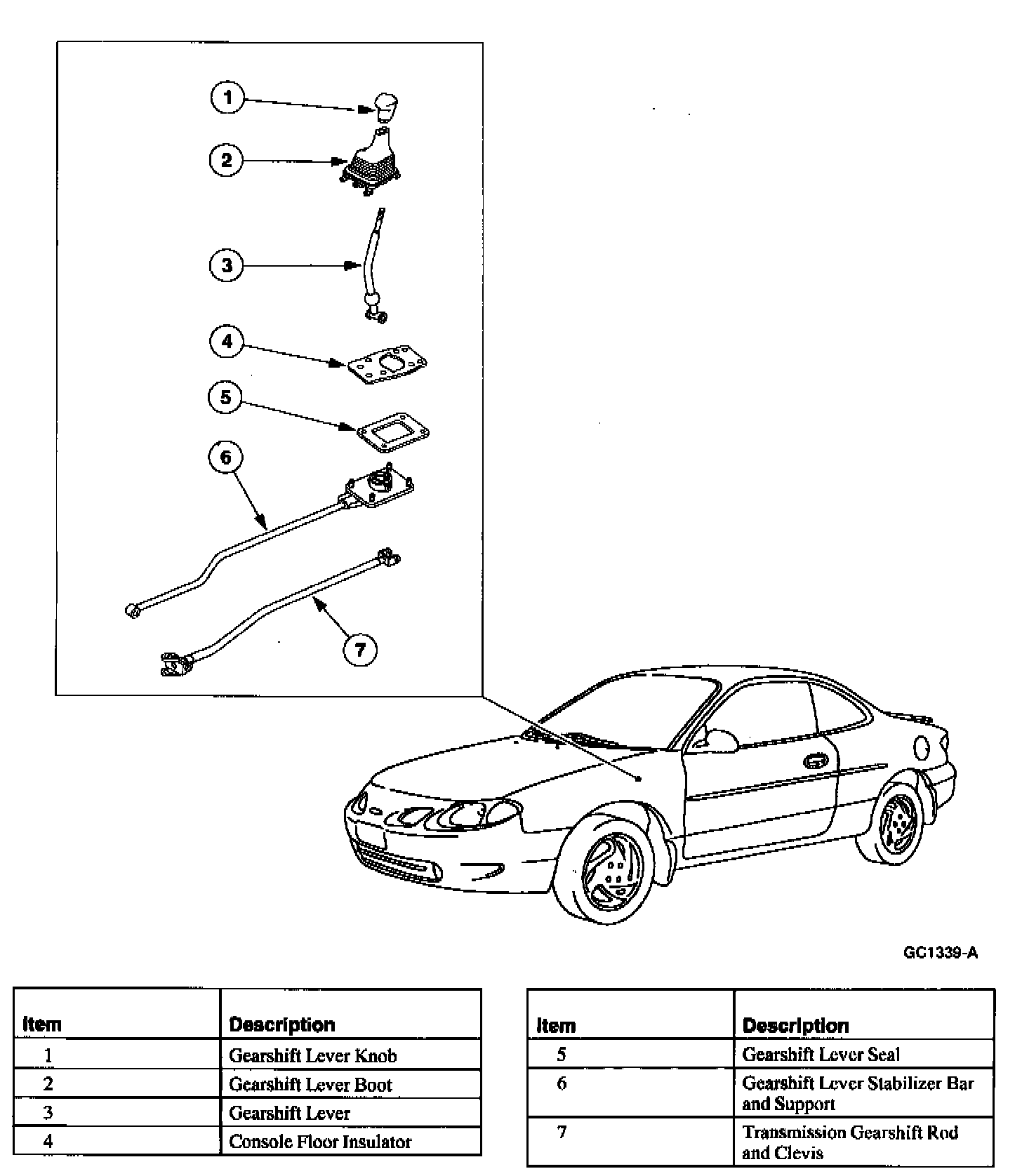

Zetec shown, S/R series similar:
