Fuse R. WIPER

Fuse REAR WIPER - protects the following circuits:
^ Daytime Running Lamps
^ Liftgate Wiper/Washer

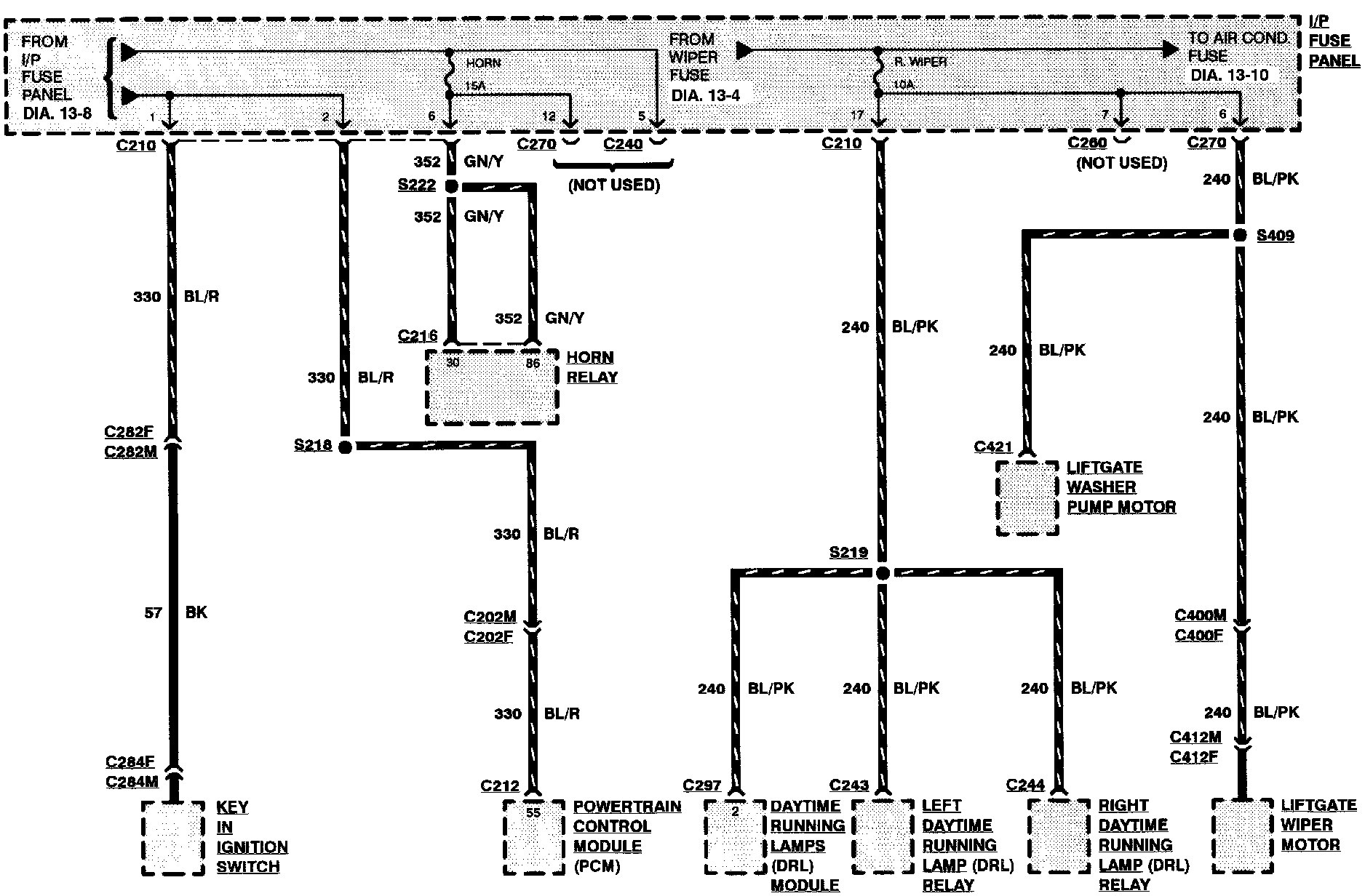

Diagram 13-9:
