Fuse MIRROR

Fuse MIRROR - protects the following circuits:
^ Power Mirrors
^ Radio
^ Remote Keyless Entry

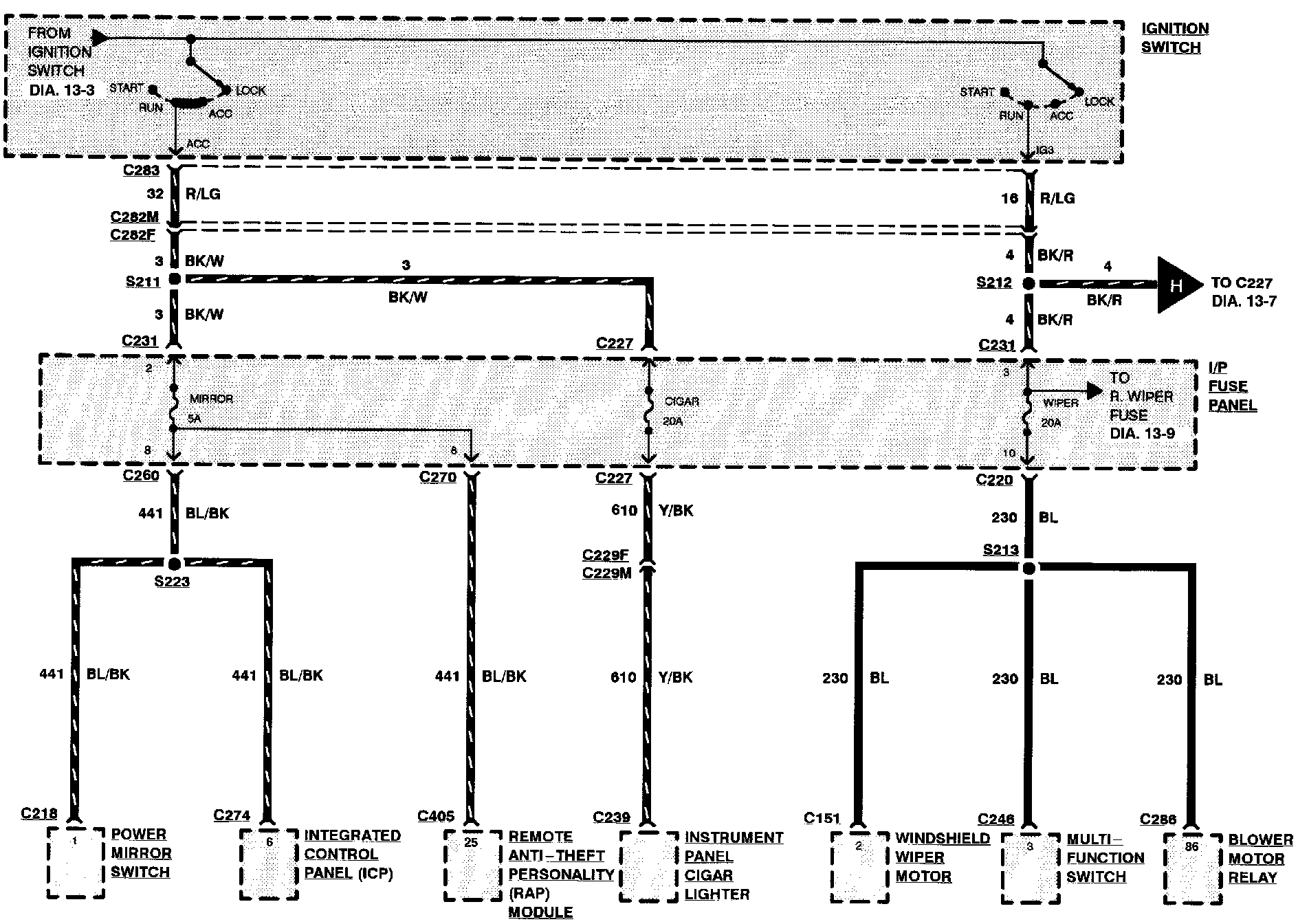

Diagram 13-4:
