Circuit Breaker P.WINDOW

Circuit Breaker P.WINDOW - protects the following circuits:
^ Power Windows

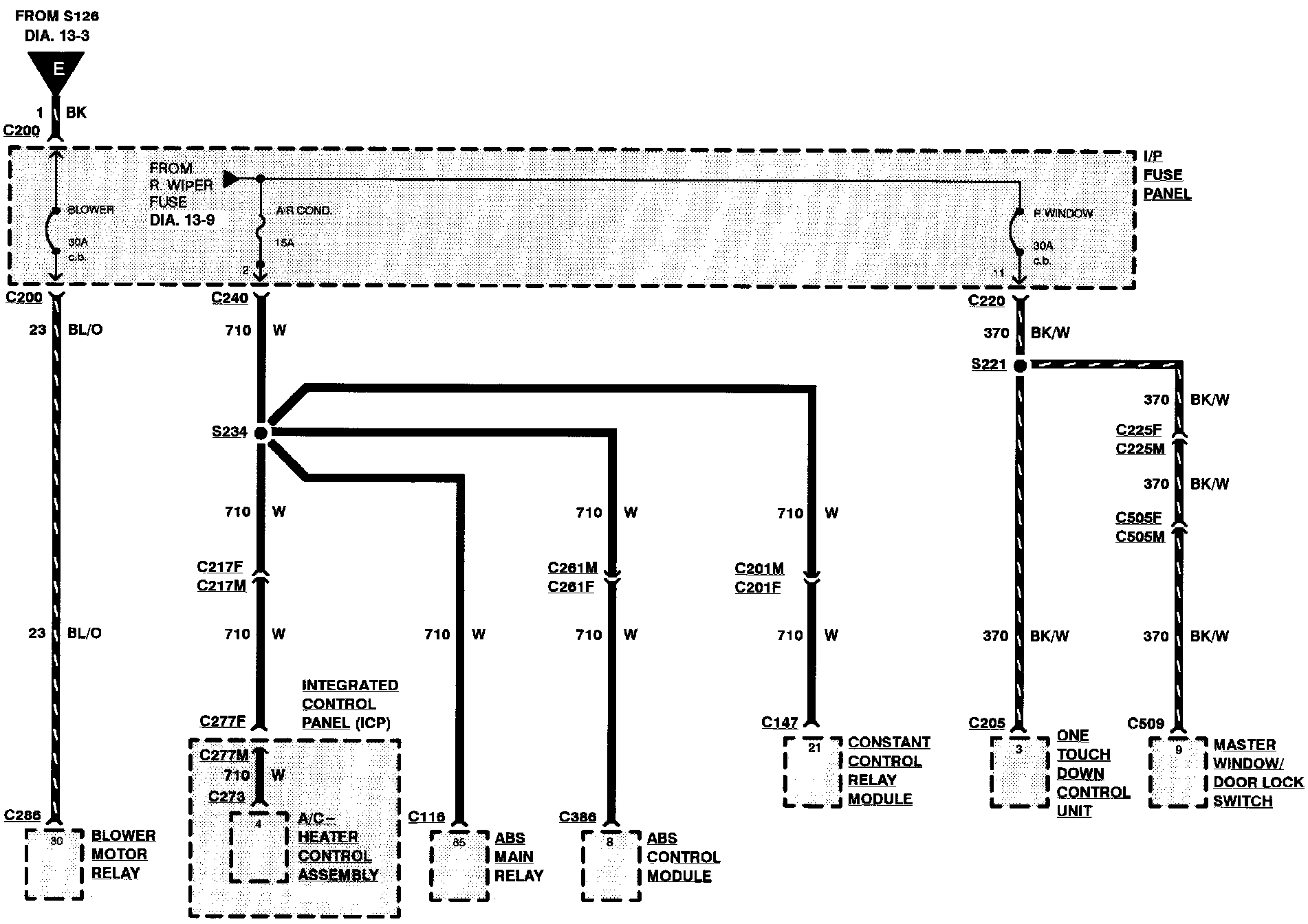

Diagram 13-10:
