Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram

System Diagram

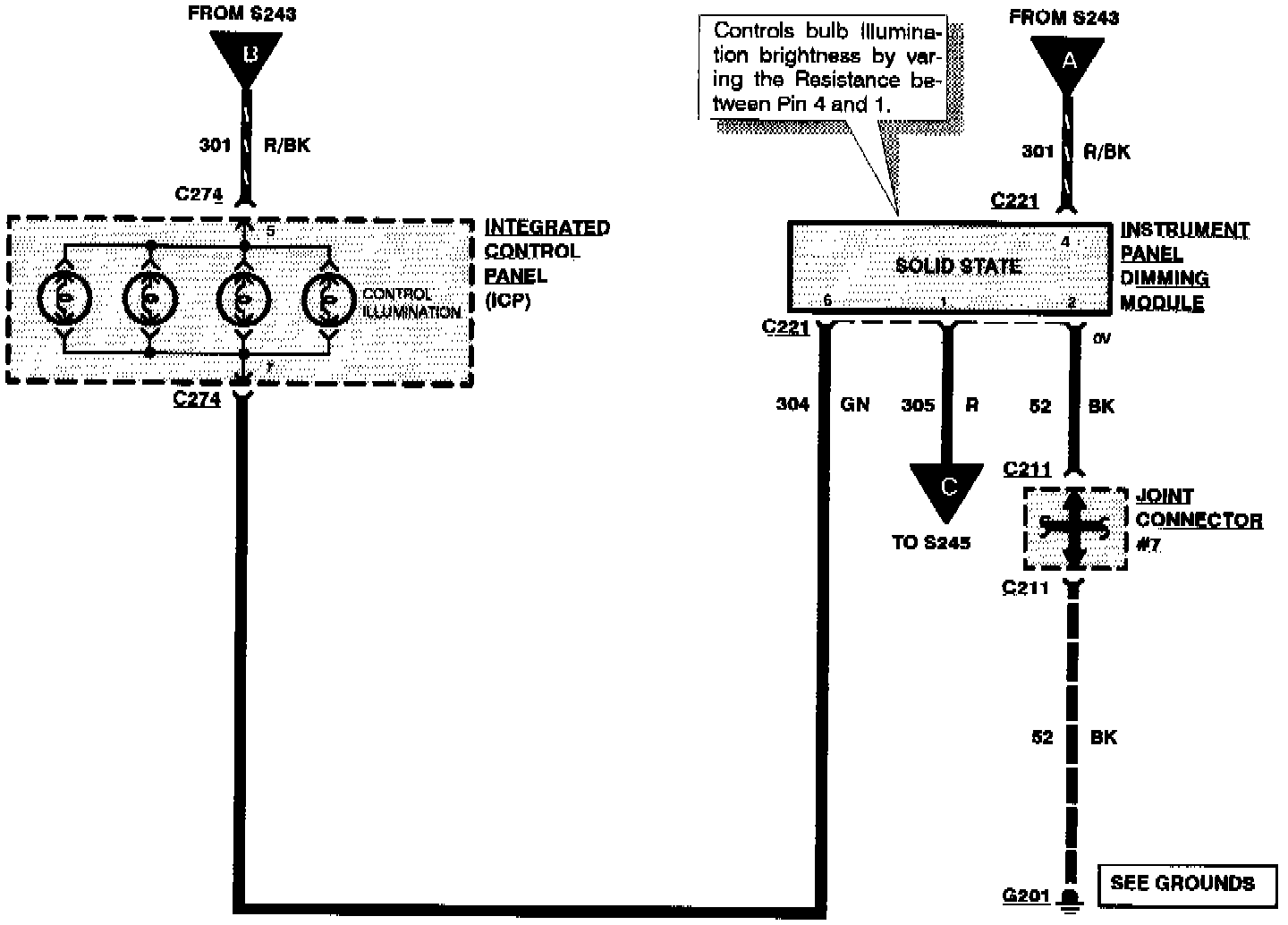

Instrument Illumination (Part 1 Of 2):

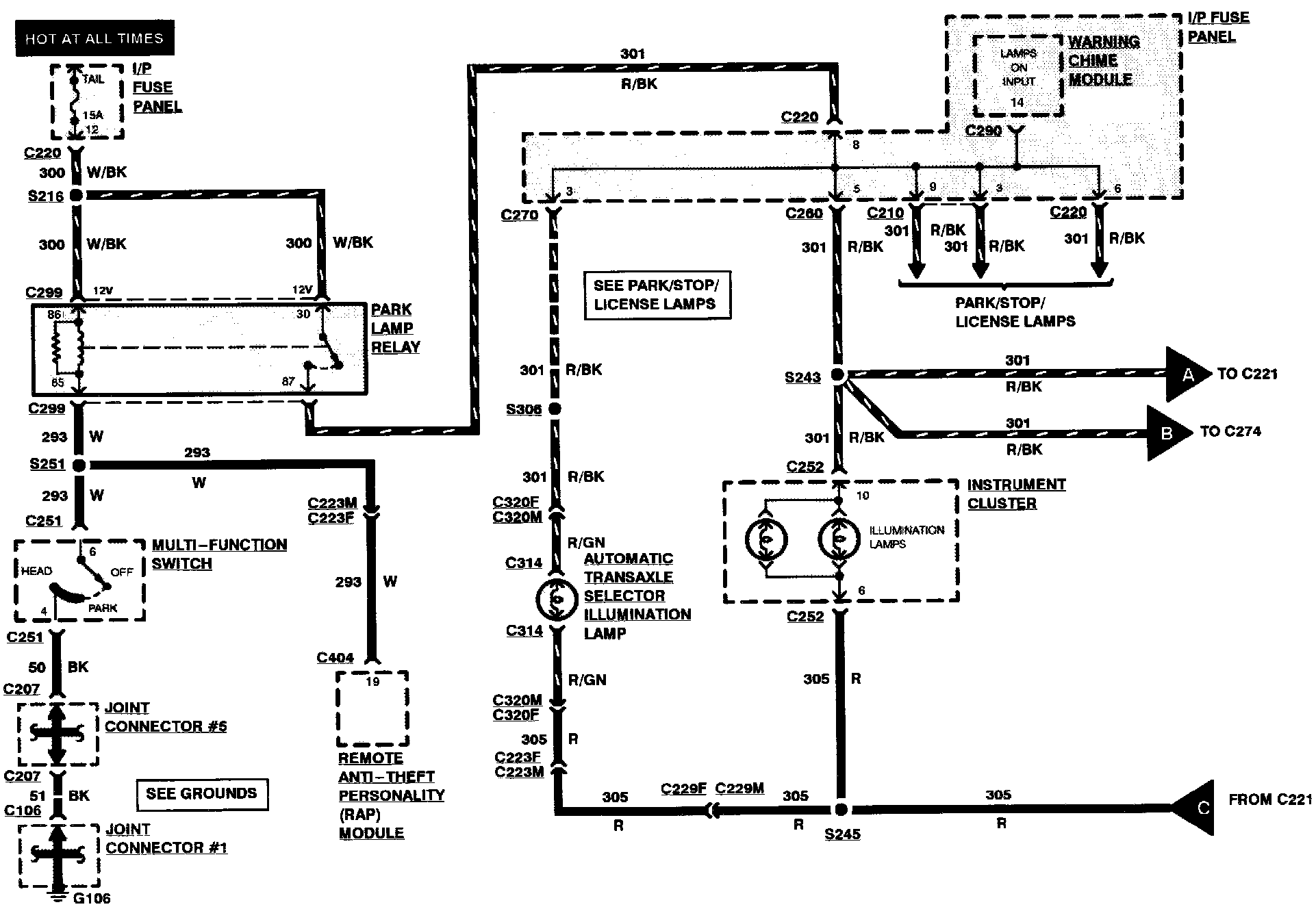

Instrument Illumination (Part 2 Of 2):
