FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1998
>>
Tracer L4-122 2.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Daytime Running Lamp
Daytime Running Lamp

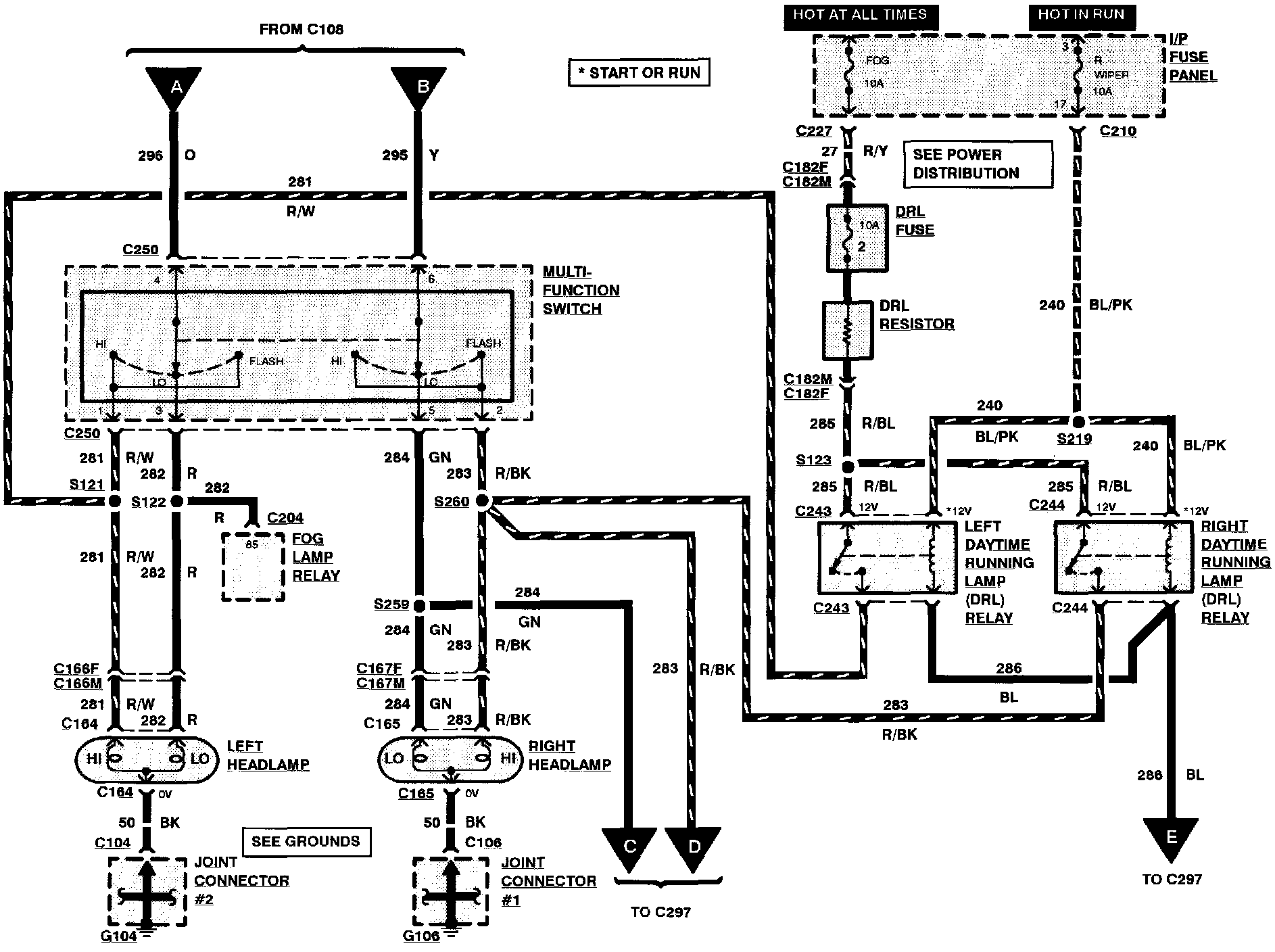

Daytime Running Lamps (Part 1 Of 3):

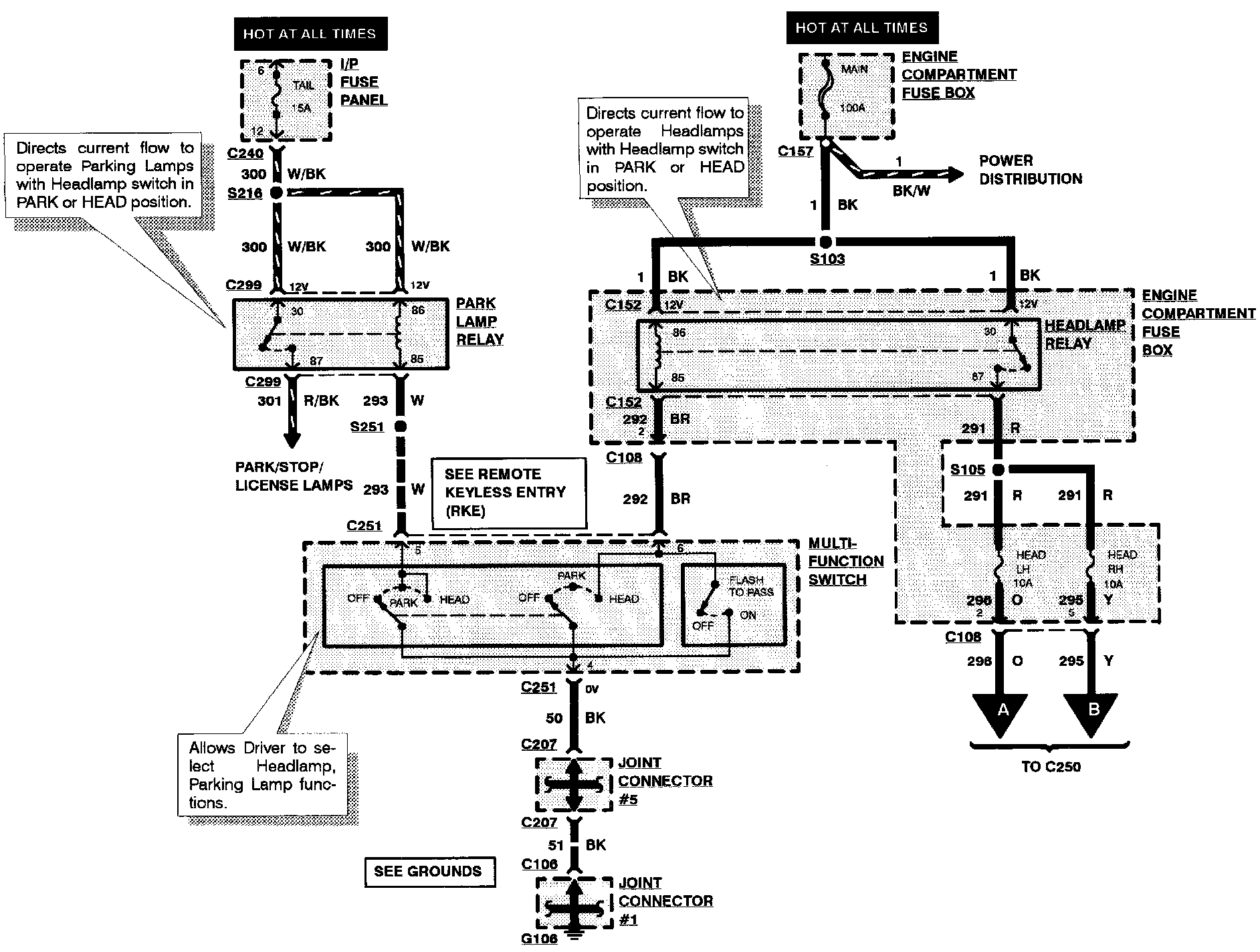

Daytime Running Lamps (Part 2 Of 3):

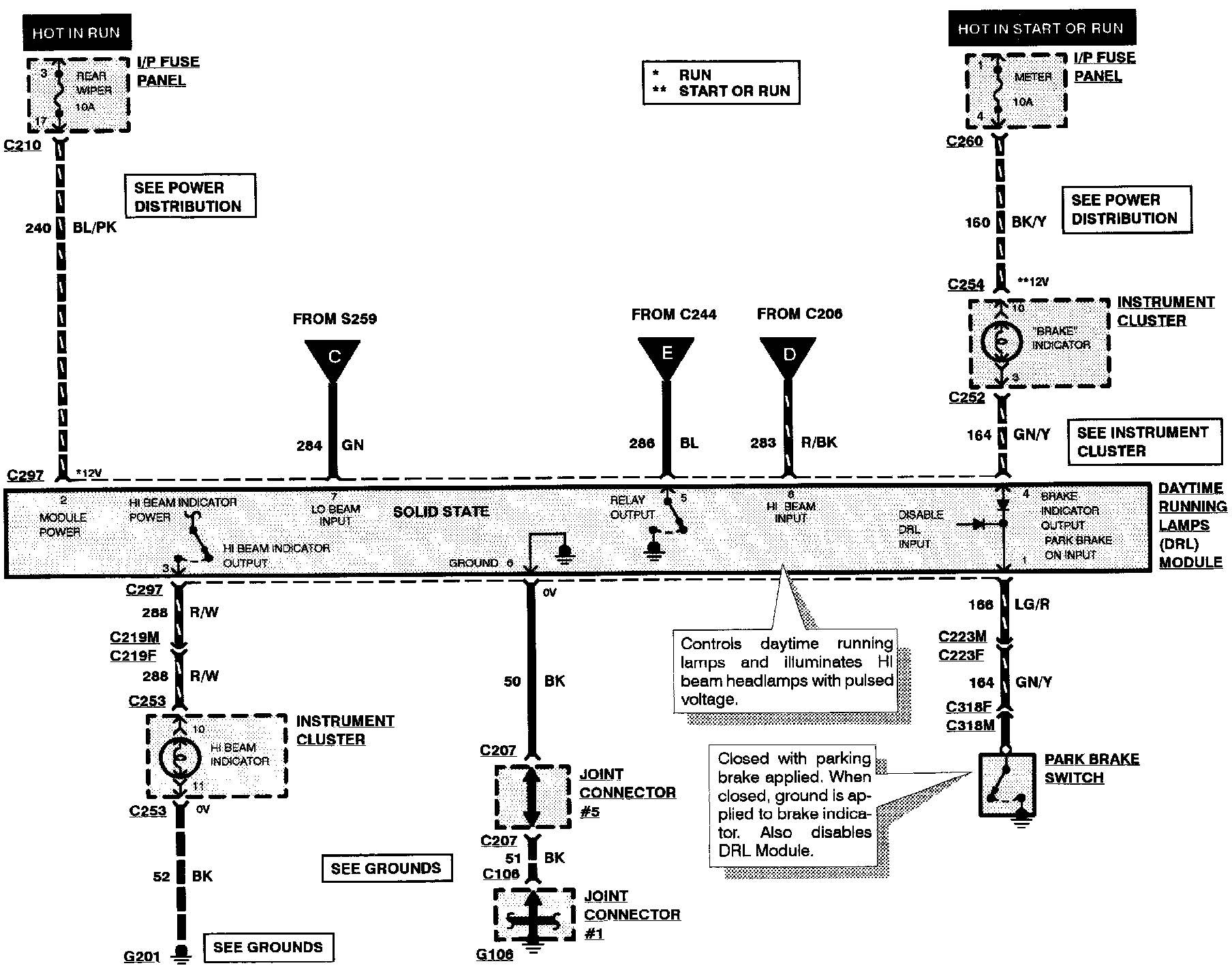

Daytime Running Lamps (Part 3 Of 3):
