Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Brake Lamp >> Wagon

Wagon

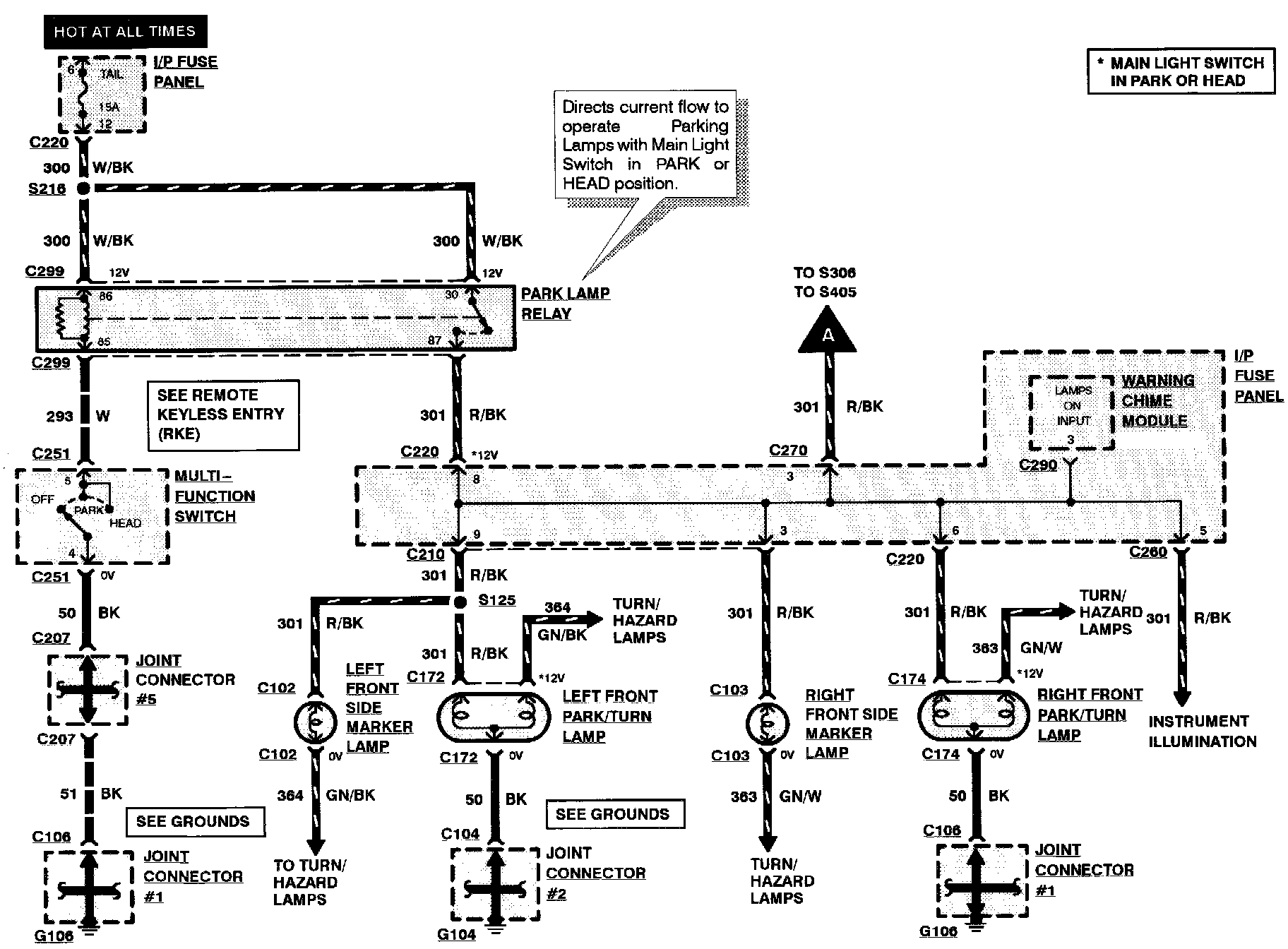

Park/Stop/License Lamps (Part 1 of 4):




Park/Stop/License Lamps (Part 2 of 4):

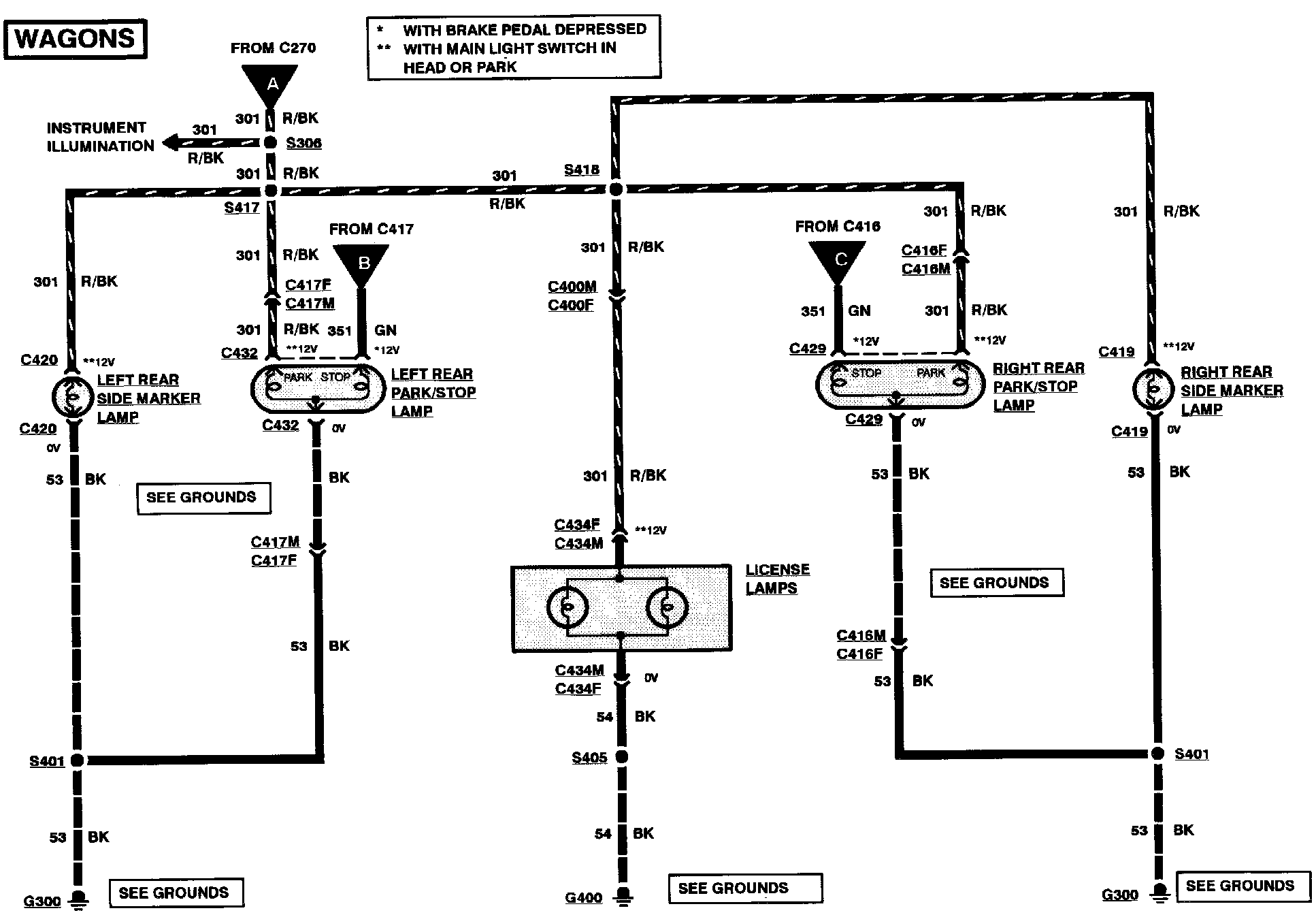

Park/Stop/License Lamps (Part 3 of 4):
