Cruise Control Servo Cable: Adjustments

1. Disconnect the speed control actuator cable from the throttle control lever.

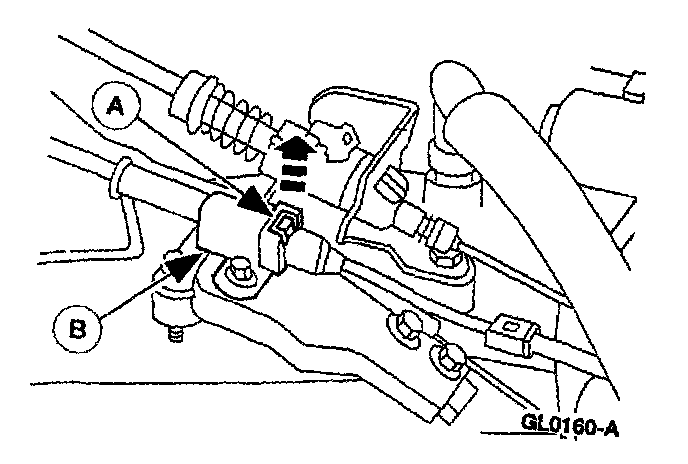

2. Remove the (A) speed control actuator cable adjuster clip from the (B) speed control actuator cable adjuster.

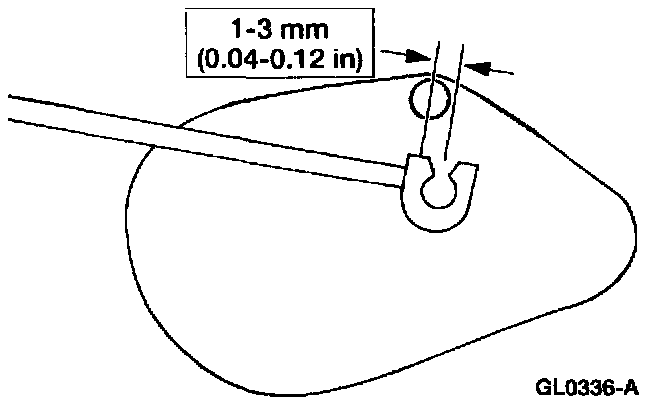

3. Adjust the speed control actuator cable until freeplay is within specifications.

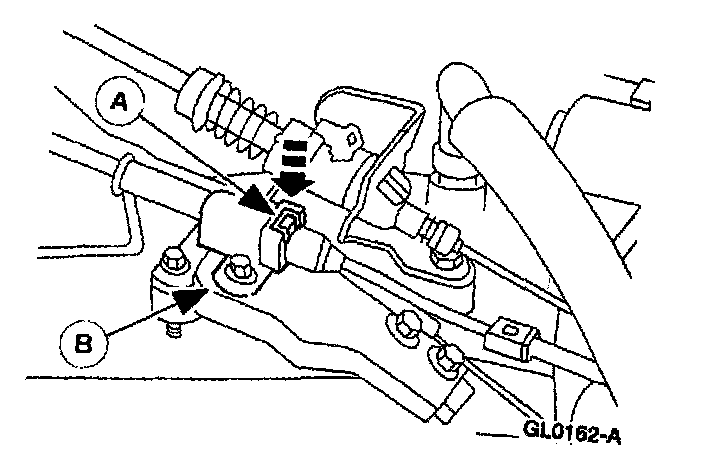

4. Install the (A) speed control actuator cable adjuster clip into the (B) cable adjuster.
