Parking Brake Control: Service and Repair

REMOVAL
1. Remove the console.

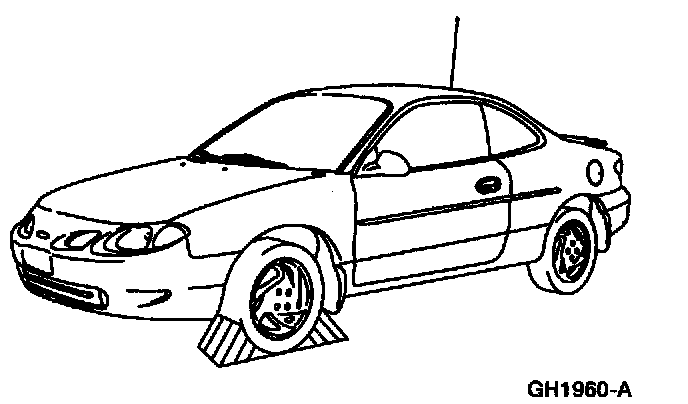

2. Block the wheels firmly.

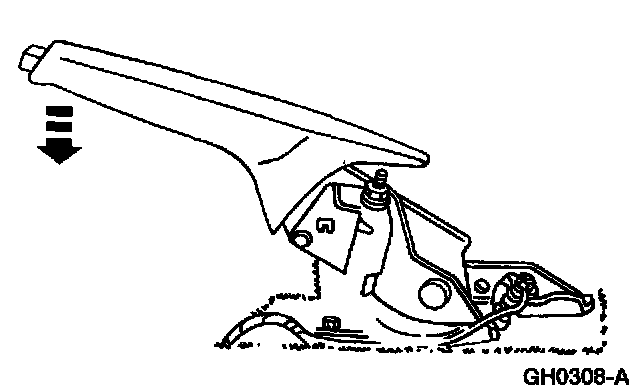

3. Release the parking brake control.

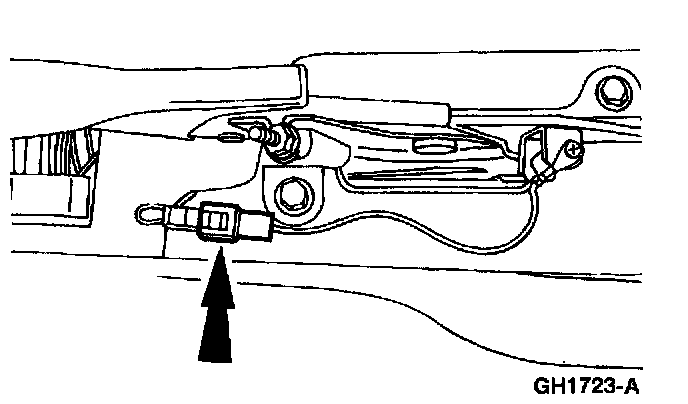

4. Disconnect the parking brake switch electrical connector.

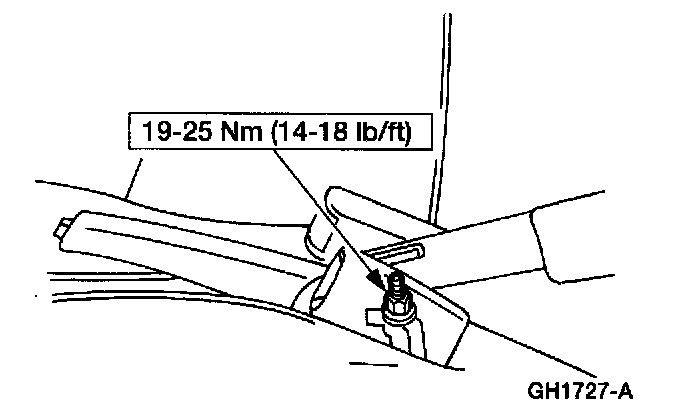

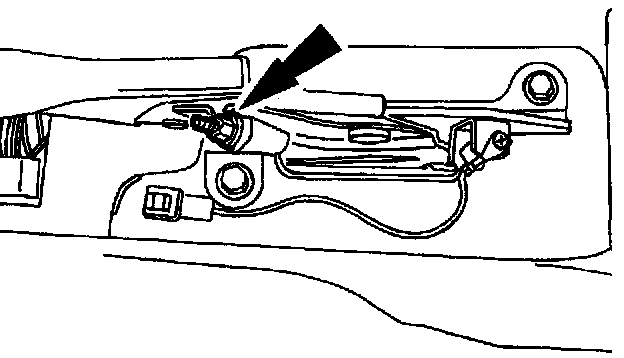

5. Remove the adjusting nut.





6. Remove the parking brake control.

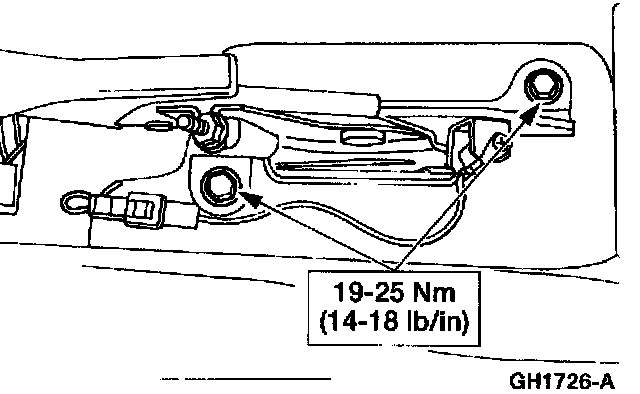

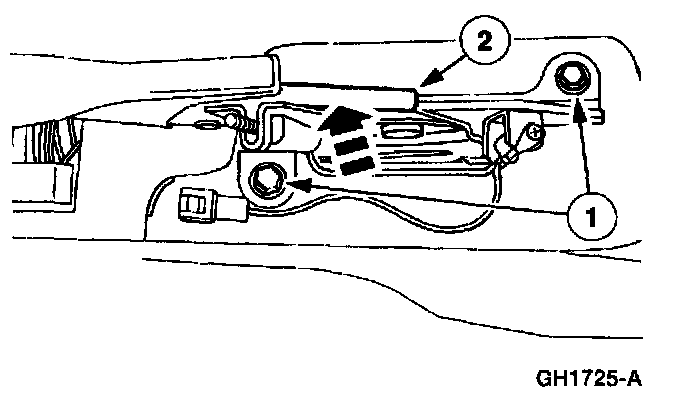

1 Remove the bolts.
2 Remove the parking brake control.

INSTALLATION









1. To install, reverse the removal procedure.
- Adjust the parking brake.
