Rear

REMOVAL
1. Remove the wheel hub.

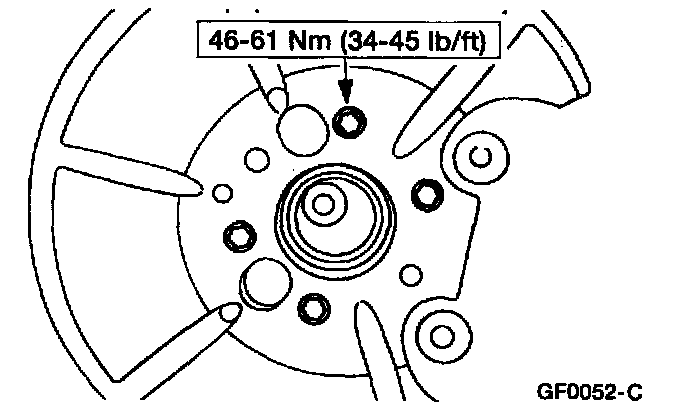

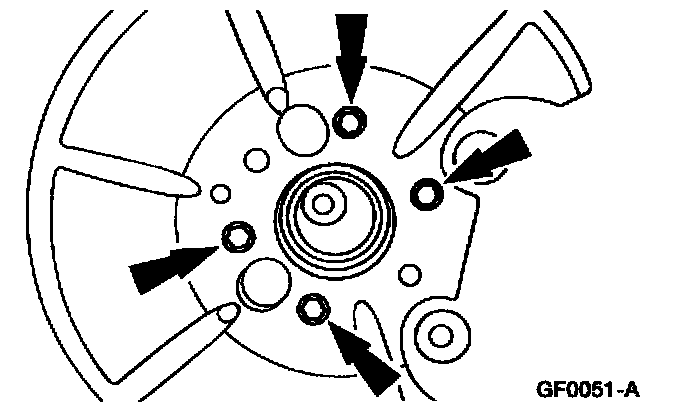

2. Remove the rear wheel disc brake shield bolts and remove the rear wheel disc brake shield.

INSTALLATION





1. To install, reverse the removal procedure.
