Front

REMOVAL
1. Remove the front wheel knuckle.

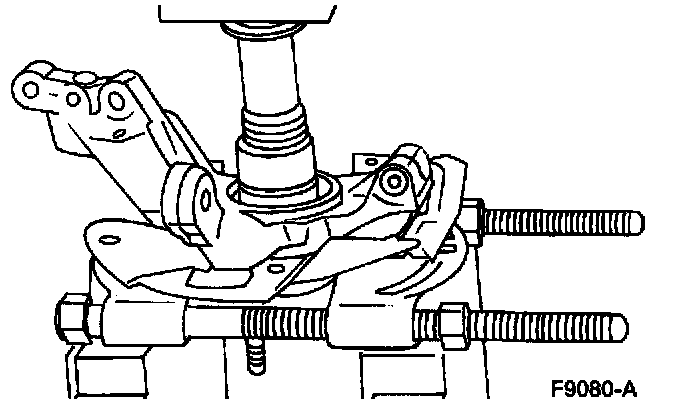

2. Use Bearing Pulling Attachment to press the wheel hub out of the front wheel knuckle.

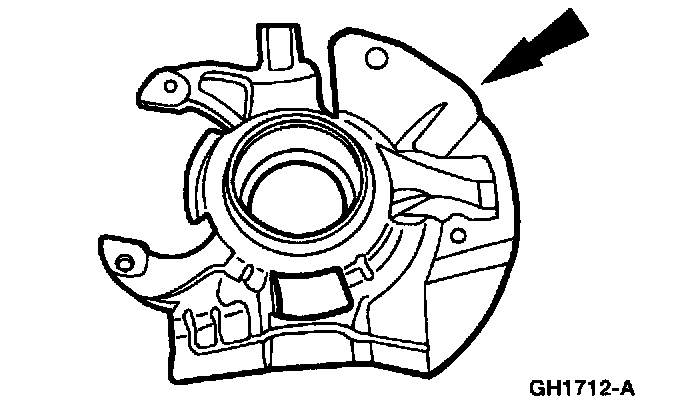

3. Use a chisel to remove the front disc brake rotor shield.

CAUTION:The front disc brake rotor shield must be replaced.

INSTALLATION
1. To install, reverse the removal procedure.
