Solenoid - Hydraulic Control Unit Coil

REMOVAL
1. Remove the battery tray.

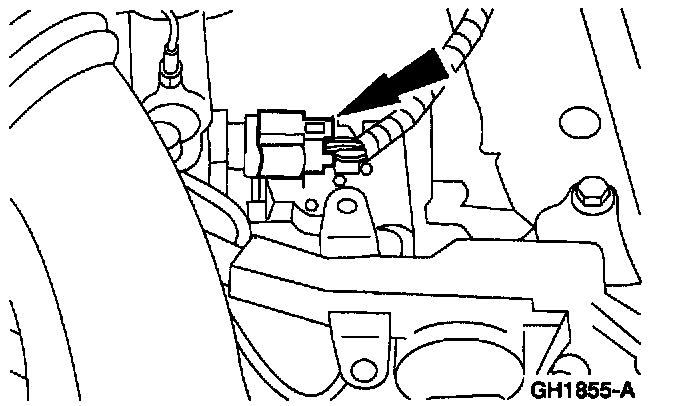

2. Disconnect the hydraulic control unit coil electrical connector.

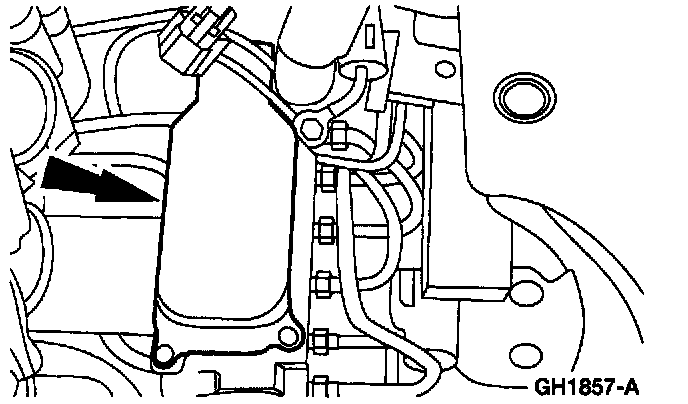

3. Remove the four hydraulic control unit coil screws.





4. Remove the hydraulic control unit coil.

INSTALLATION
1. To install, reverse the removal procedure.
