Hydraulic Control Unit

REMOVAL
1. Remove the battery tray.
2. Disconnect the two Hydraulic Control Unit (HCU) electrical connectors.

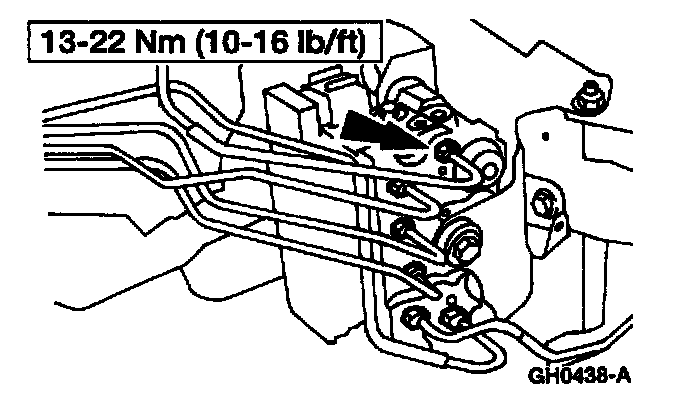

3. Disconnect the six hydraulic brake lines.

NOTE: Plug each port to prevent brake fluid from spilling.





4. Remove the HCU.
1 Remove the bolts.
2 Remove the HCU.

INSTALLATION








1. To install, reverse the removal procedure.
- Bleed the brake system.
