Seat-Front, Base

DISASSEMBLY
1. Disassemble the front seat.

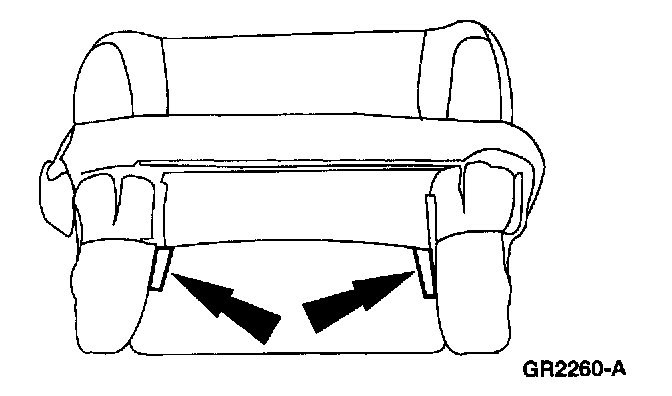

2. Disconnect the seat base trim. Remove the hog rings.

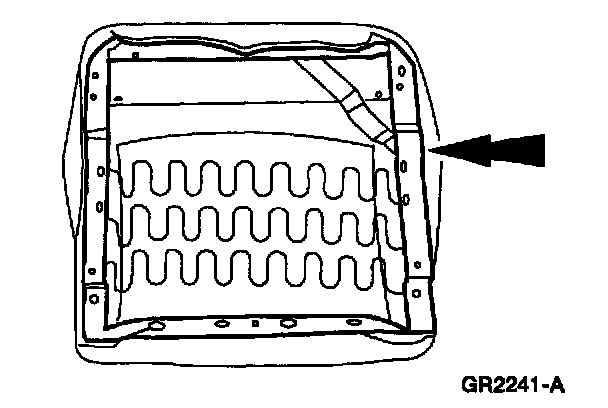

3. Remove the frame from the front seat base cushion and trim.

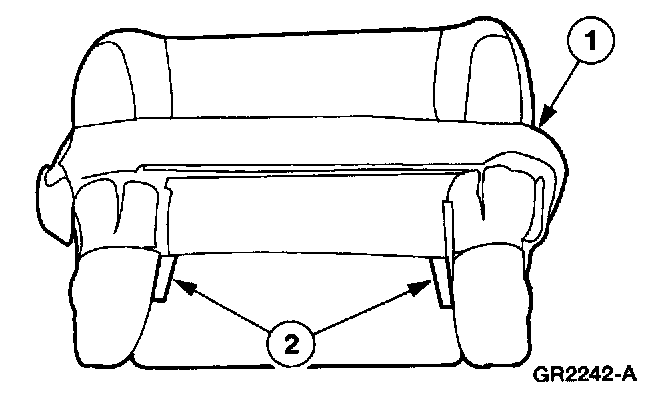

4. Remove the front seat base trim
1 Invert the front seat base trim.
2 Disconnect the front seat trim from the hook and loop strips.

CAUTION: Use care when separating the seat cushion trim cover from the hook and loop strips or the hook and loop strips may be torn from the seat cushion foam.

ASSEMBLY







1. Position the seat trim cover on the seat cushion hook and loop strips.







2. Position the seat trim and cushion onto the seat frame.







3. Connect the seat base trim. Install the hog rings.
4. Assemble the front seat.
