Sunroof / Moonroof Motor: Service and Repair

REMOVAL
1. Remove the headliner.

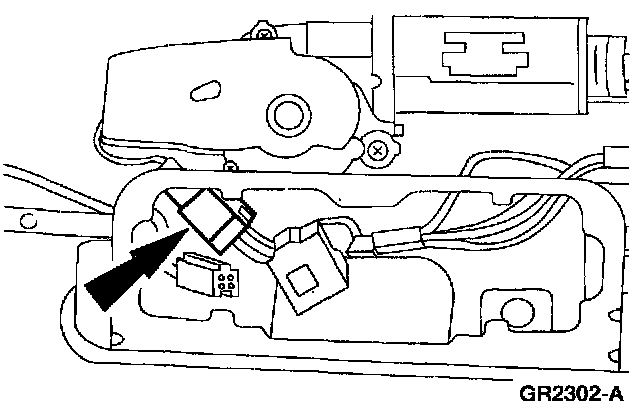

2. Disconnect the motor electrical connector.

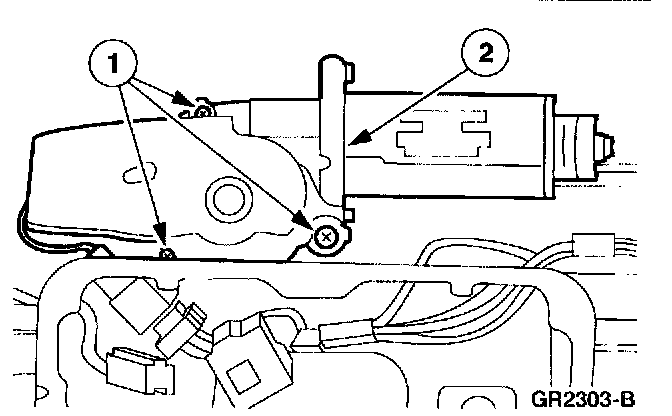

3. Remove the motor.
1 Remove the screws.
2 Remove the motor.

INSTALLATION







1. Connect the motor electrical connector.

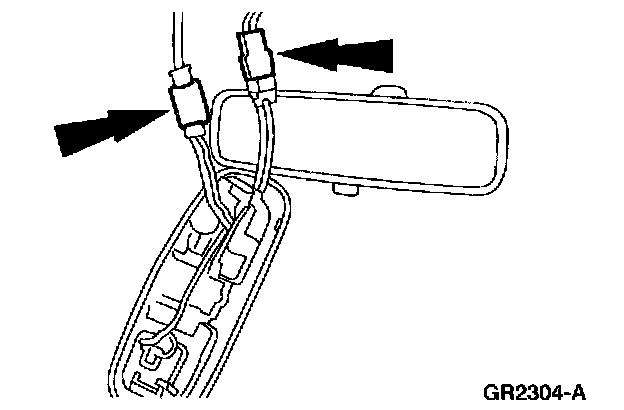

2. Connect the sliding roof panel switch connectors.
3. Press the CLOSE side of the sliding roof panel switch until the motor stops.

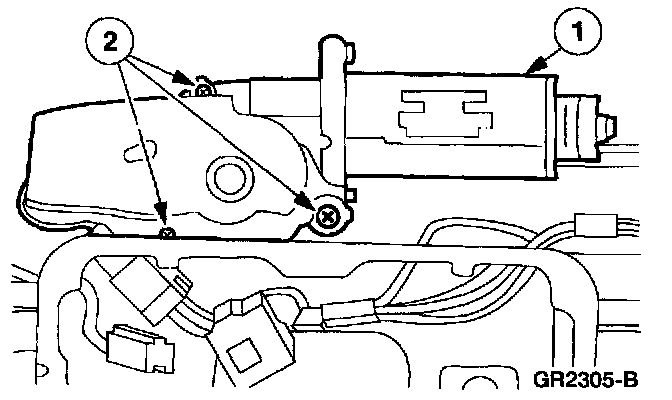

4. Install the motor.
1 Position the motor.
2 Install the screws.
5. Install the headliner.
