Sunroof / Moonroof Lift Mechanism: Service and Repair
REMOVAL1. Remove the glass panel.
2. Remove the lifter arms.

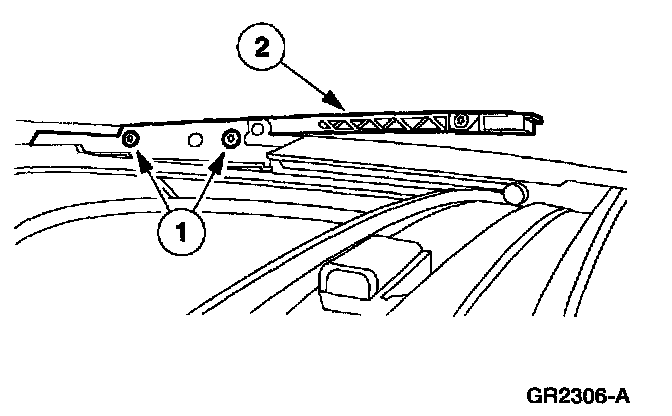

1 Remove the bolts (two on each arm).
2 Remove the lifter arms.
INSTALLATION
1. To install, reverse the removal procedure.
1. Remove the glass panel.
2. Remove the lifter arms.
1 Remove the bolts (two on each arm).
2 Remove the lifter arms.
INSTALLATION
1. To install, reverse the removal procedure.
