Sliding Roof Glass

REMOVAL
1. Open the opening shield.







2. Remove the lower panel covers.

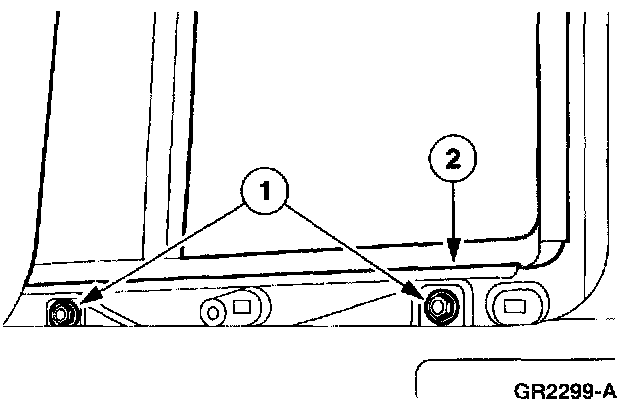

3. Remove the glass panel
1 Remove the nuts.
2 Remove the glass panel.

INSTALLATION

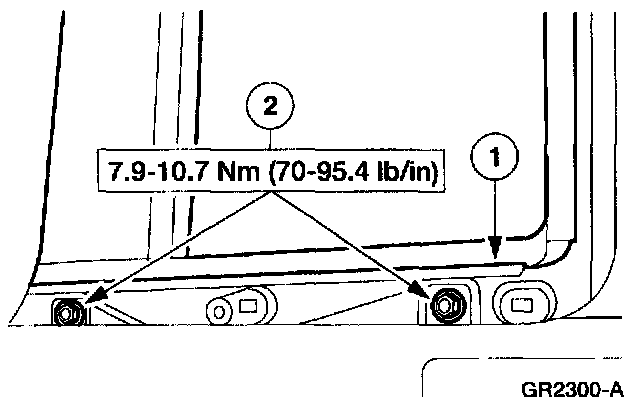

1. Install the glass panel.
1 Position the glass panel.
2 Install the nuts.

2. Adjust the glass panel.
