Roof Sliding Panel Opening Shield

REMOVAL
1. Remove the lifter arms.

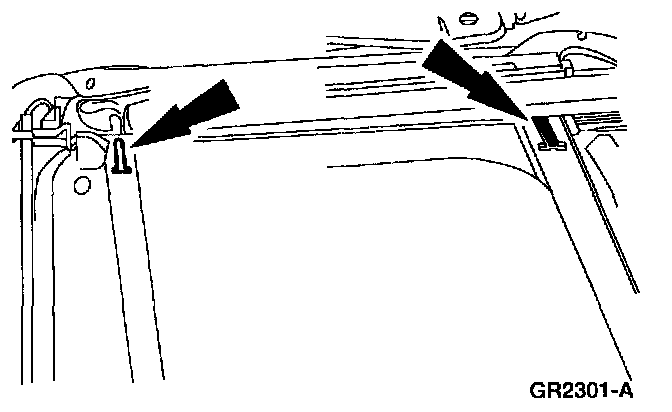

2. Remove the opening shield. Release the pins.

INSTALLATION
1. To install, reverse the removal procedure.
