Drive Cables and Guide Rails

Heavy Duty Riveter:

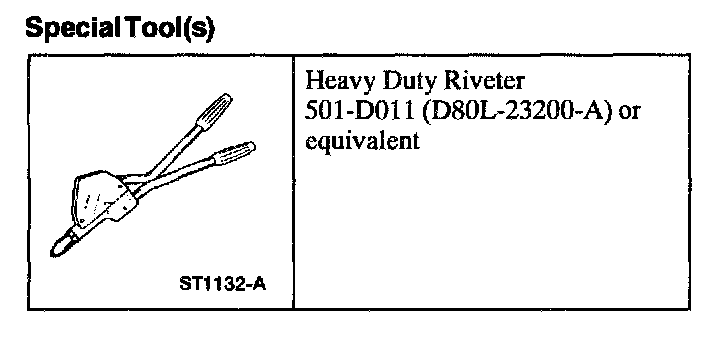

SPECIAL TOOL(S) RECOMMENDED

DISASSEMBLY
1. Place the sliding roof panel frame on a suitable work surface.







2. Remove the two front stops.

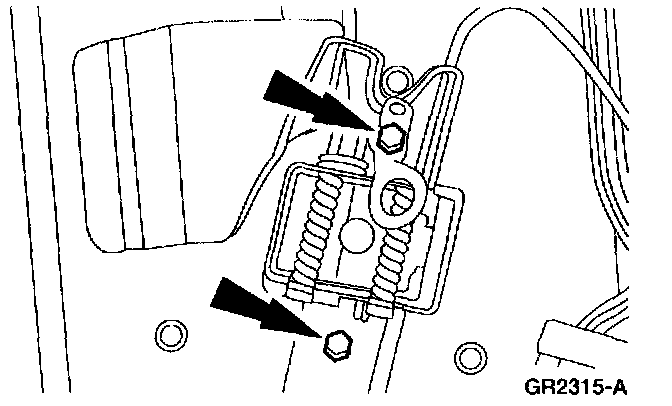

1 Remove the bolts (two each side).
2 Remove the two front stops.

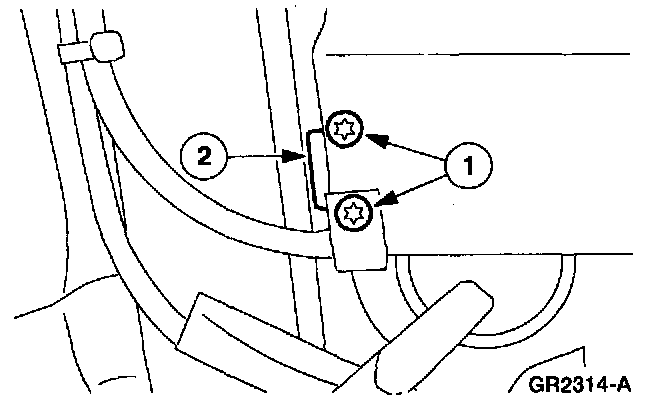

3. Remove the drive unit screws.







4. Remove the drive unit.

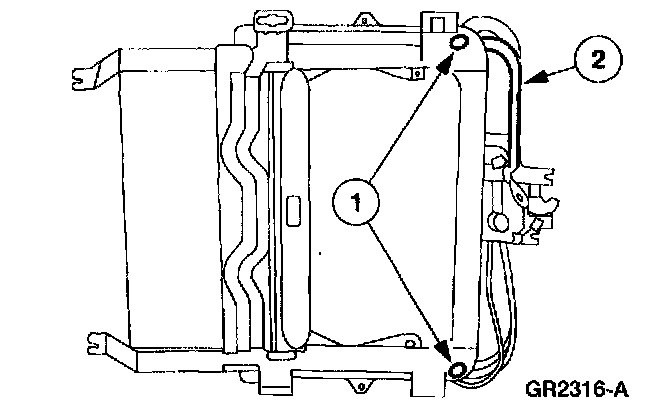

1 Drill out the rivets.
2 Remove the drive unit.







5. Remove the lower panel.

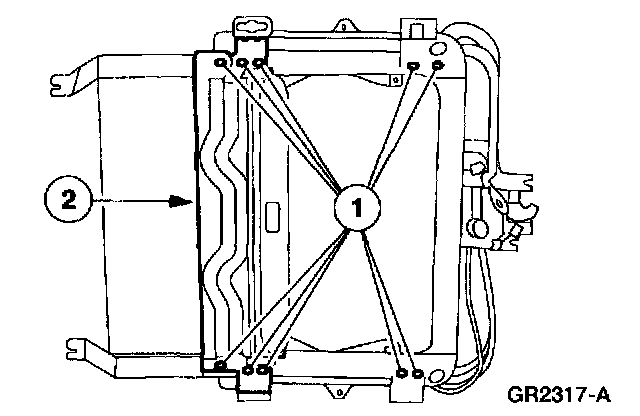

1 Drill out the rivets.
2 Remove the lower panel.

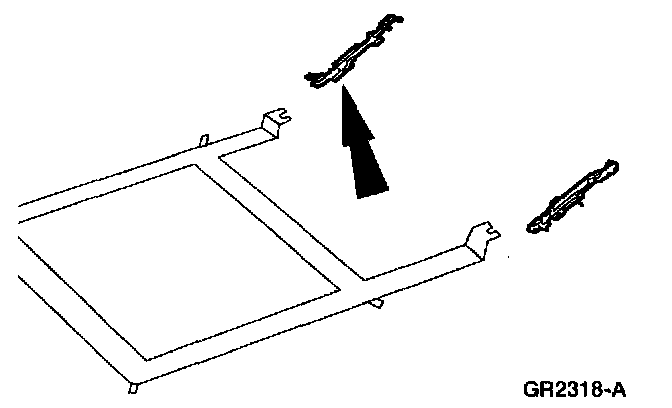

6. Remove the guides.

ASSEMBLY
1. To assemble, reverse the disassembly procedure.
^ Use Heavy Duty Riveter to install the new rivets.
